Active Safety Control Module Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

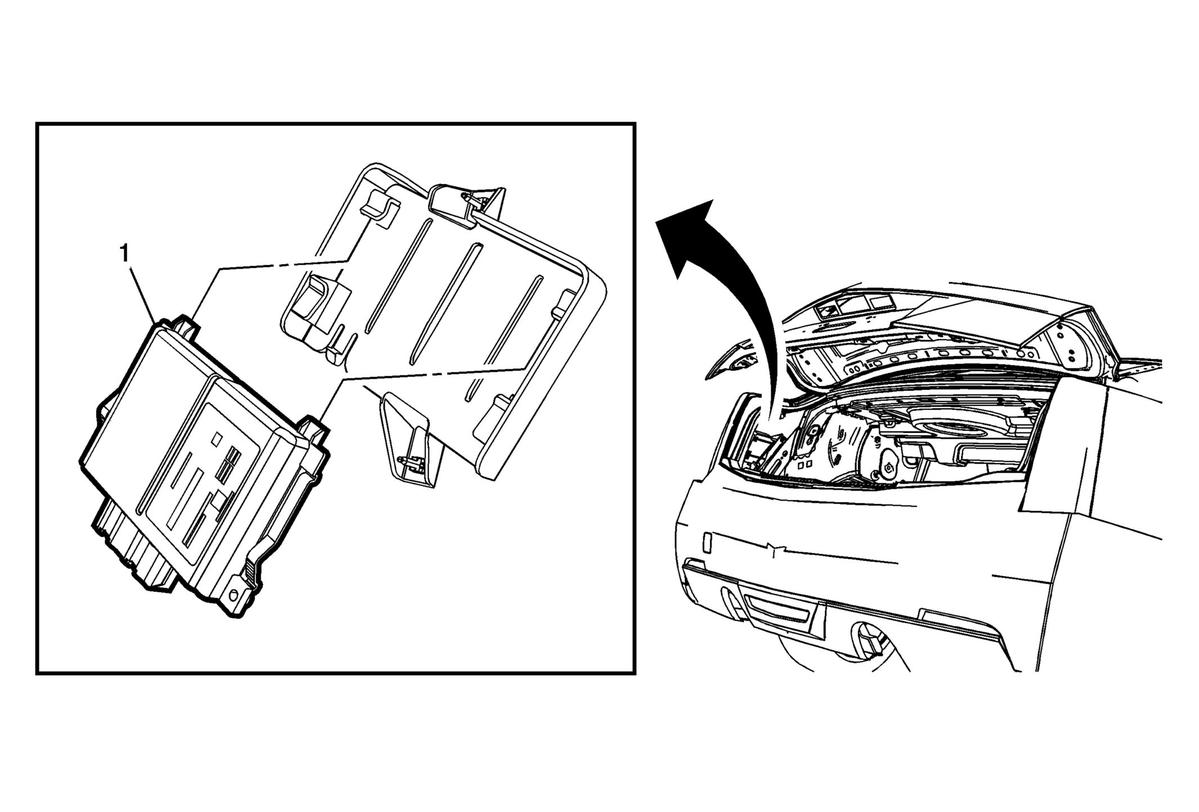

Fig 1: Active Safety Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel - left side. Refer to Rear Compartment Side Trim Replacement - Left Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Left Side (Sedan except AM9)Rear Compartment Side Trim Replacement - Left Side (Coupe) .
1	Active Safety Control Module Procedure Release the locking retainer from the active safety control module bracket. Disconnect the electrical connectors. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear compartment side trim panel - left side. Refer to Rear Compartment Side Trim Replacement - Left Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Left Side (Sedan except AM9)Rear Compartment Side Trim Replacement - Left Side (Coupe) .

Active Safety Control Module

Procedure

Release the locking retainer from the active safety control module bracket.
Disconnect the electrical connectors.
For programming and set up, refer to Control Module References .
