Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

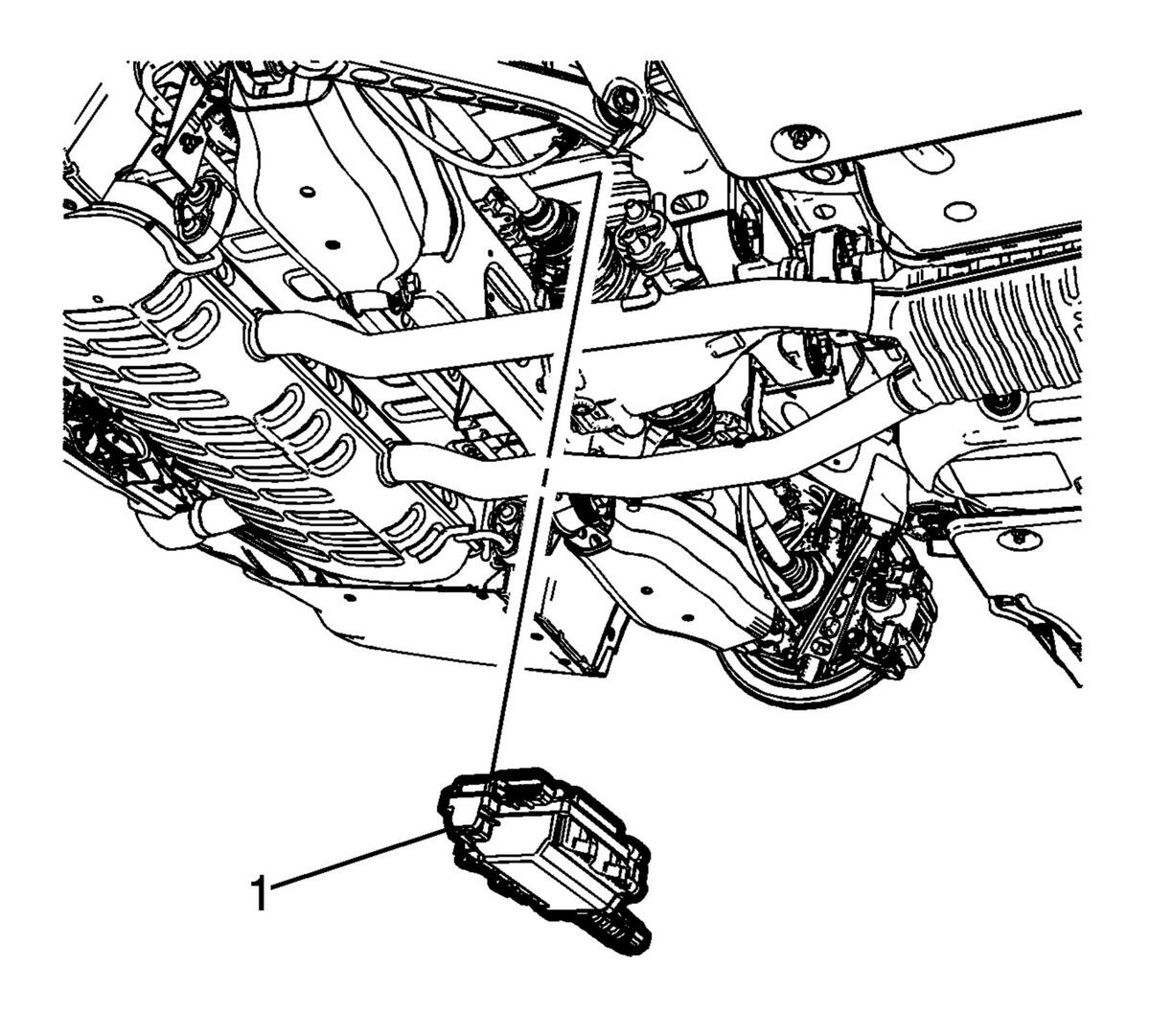

- Position the electronic parking brake control module (1) to the electronic parking brake control module bracket.
- Inspect the O-ring seals on the spindle and the intermediate cable for damage and correct positioning and replace, if necessary.

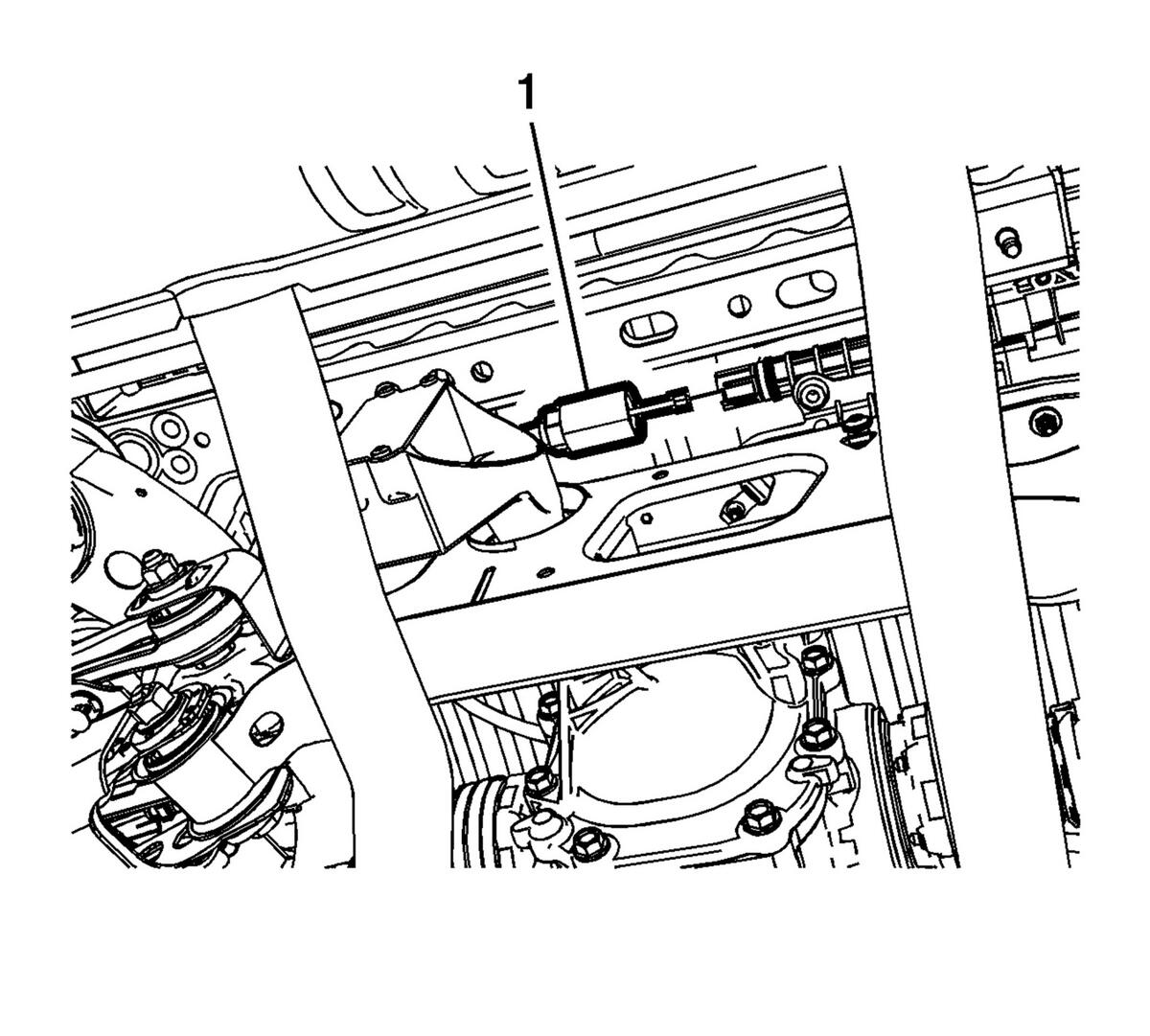

- Install the parking brake intermediate cable nut (1) and tighten to 6 N.m (53 lb in).
- Maneuver and install the electronic parking brake control module and bracket to the rear suspension support.
- Connect the electronic parking brake control module electrical connector.

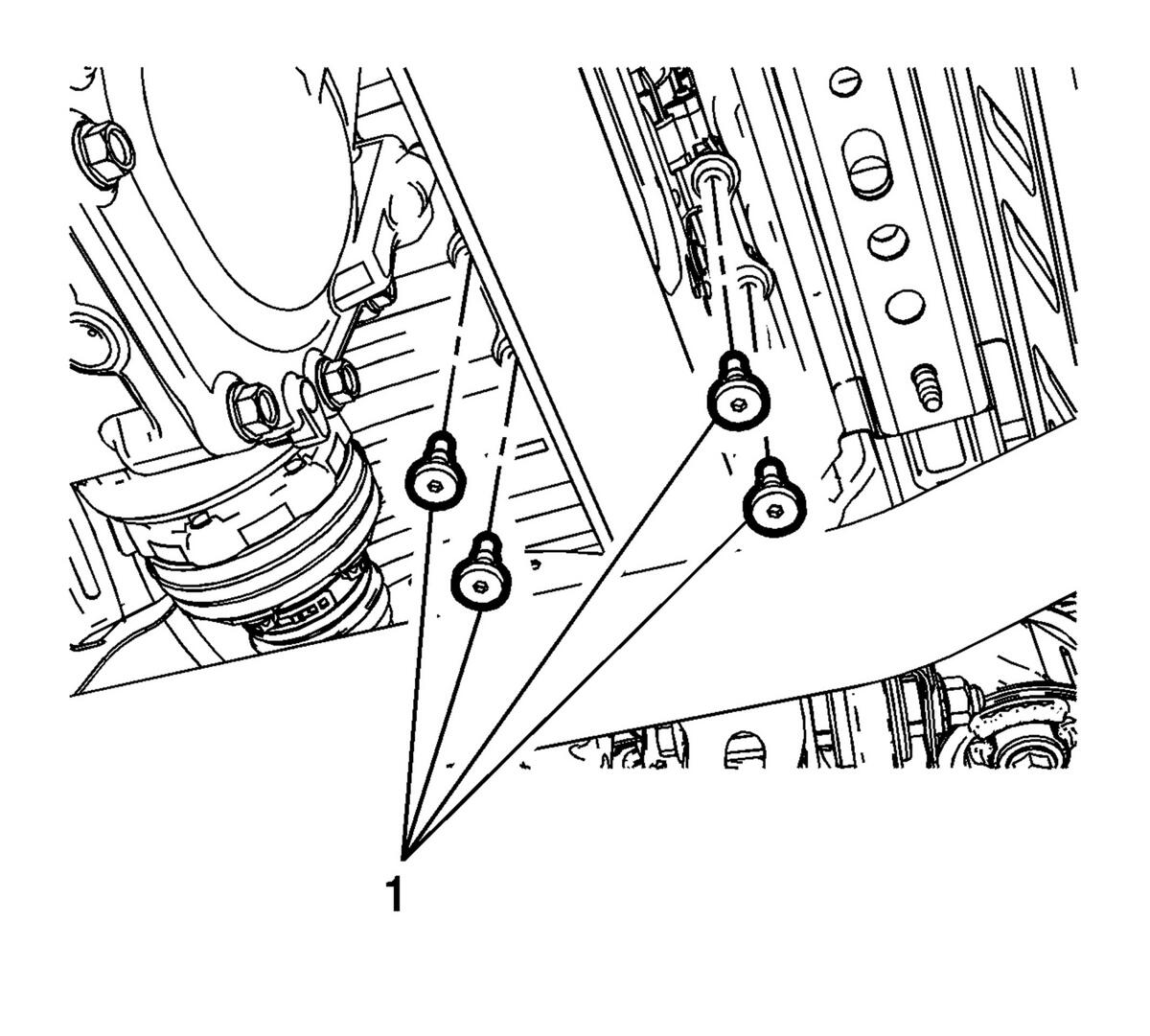

- Install the electronic parking brake control module bracket bolts (1) and tighten to 9 N.m (80 lb in).

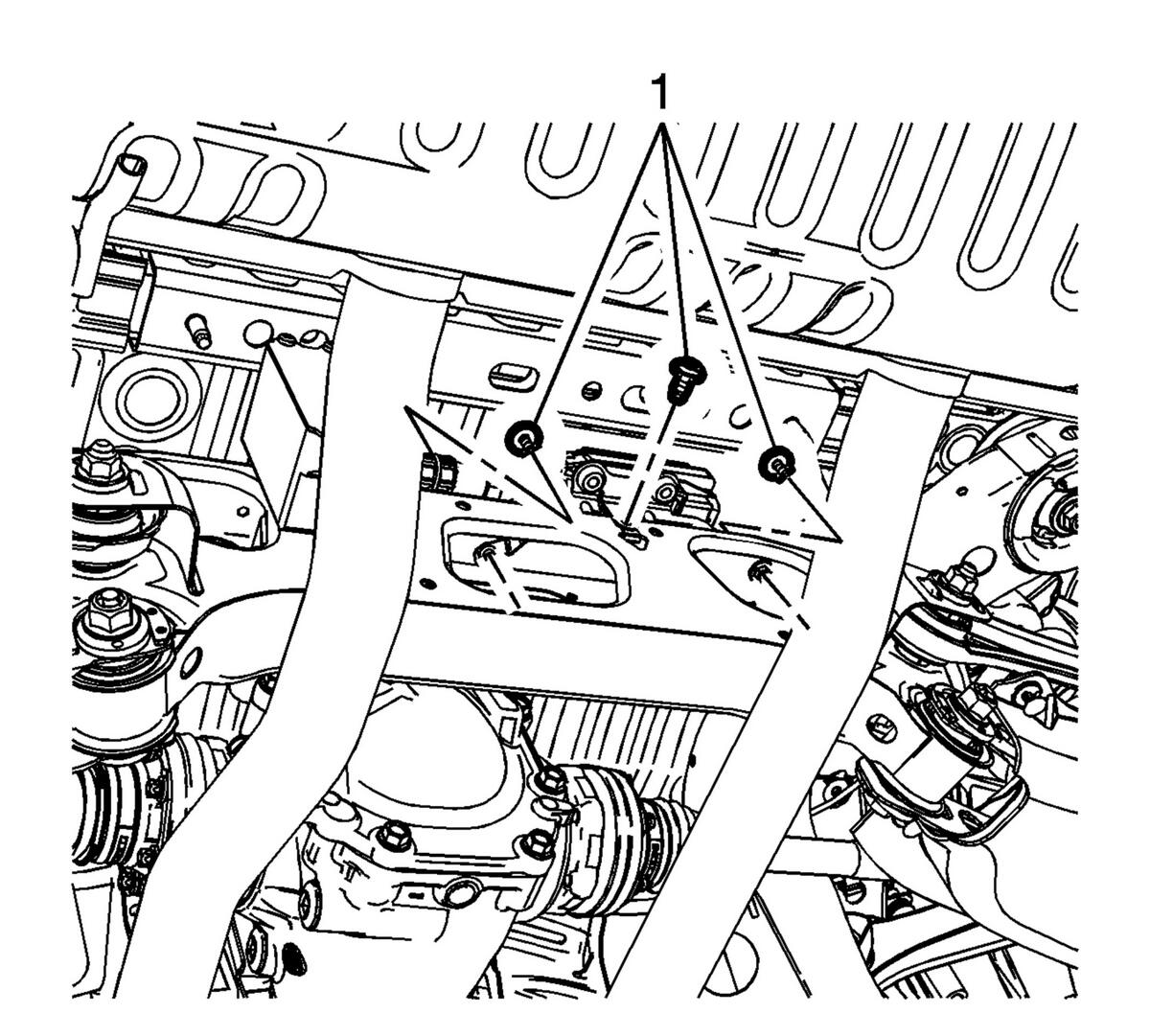

- Install the electronic parking brake control module bolts (1) and tighten to 7 (N.m 62 lb in).
- Program the electronic parking brake control module. Refer to Control Module References .
CAUTION:
Refer to Fastener Caution .
NOTE:
When installing the electronic park brake intermediate cable nut to the electronic park brake module spindle, hold the spindle housing securely to avoid distorting the housing.
