Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove Spare Tire

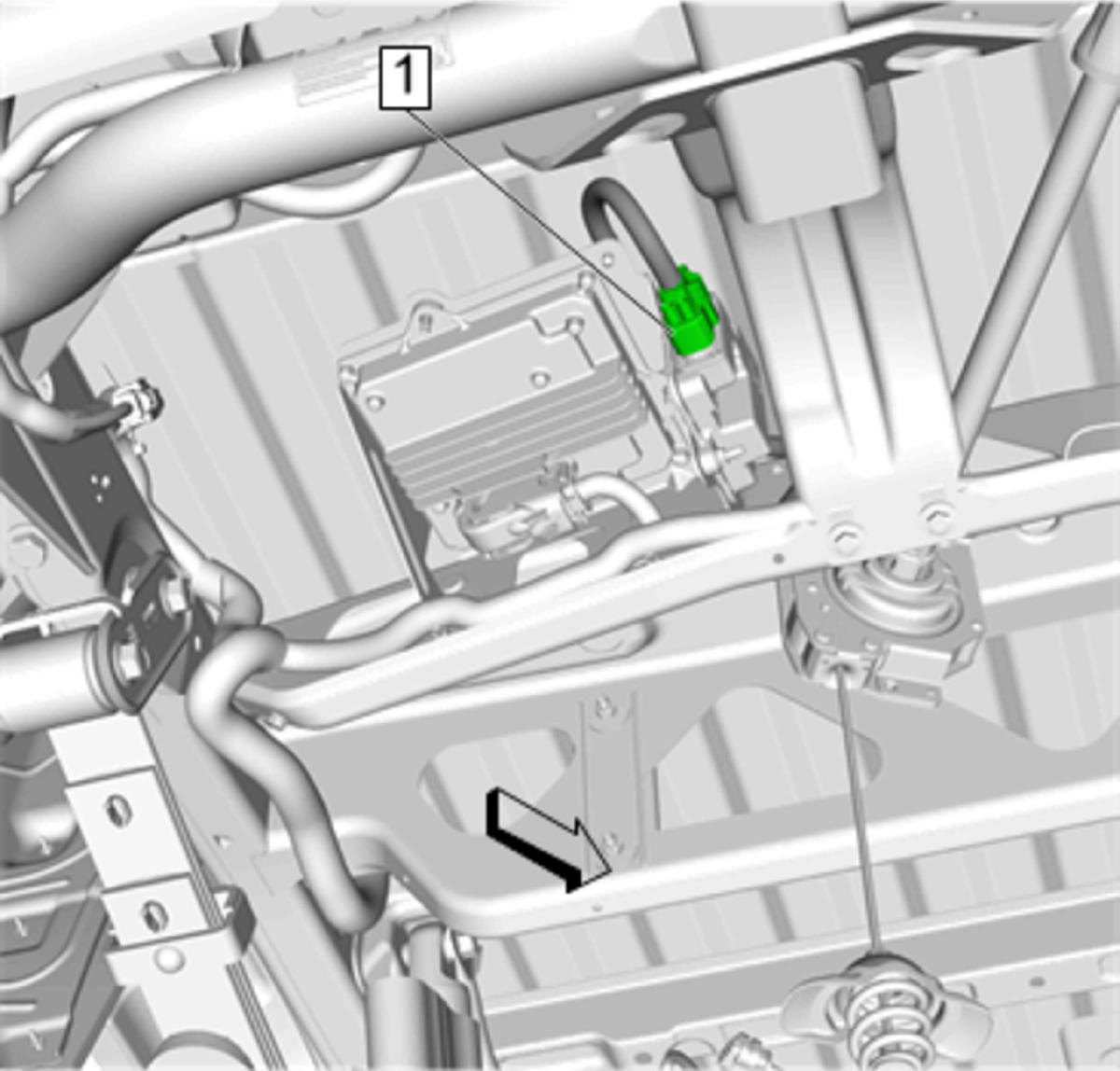

    3. Fig 1: Connect Electrical Connector
    GM4556989Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect Electrical Connector (1)
    4. Fig 2: Trailer Brake Power Control Module Nut
    GM4556990Courtesy of GENERAL MOTORS COMPANY
  4. Remove Trailer Brake Power Control Module Nut (1)

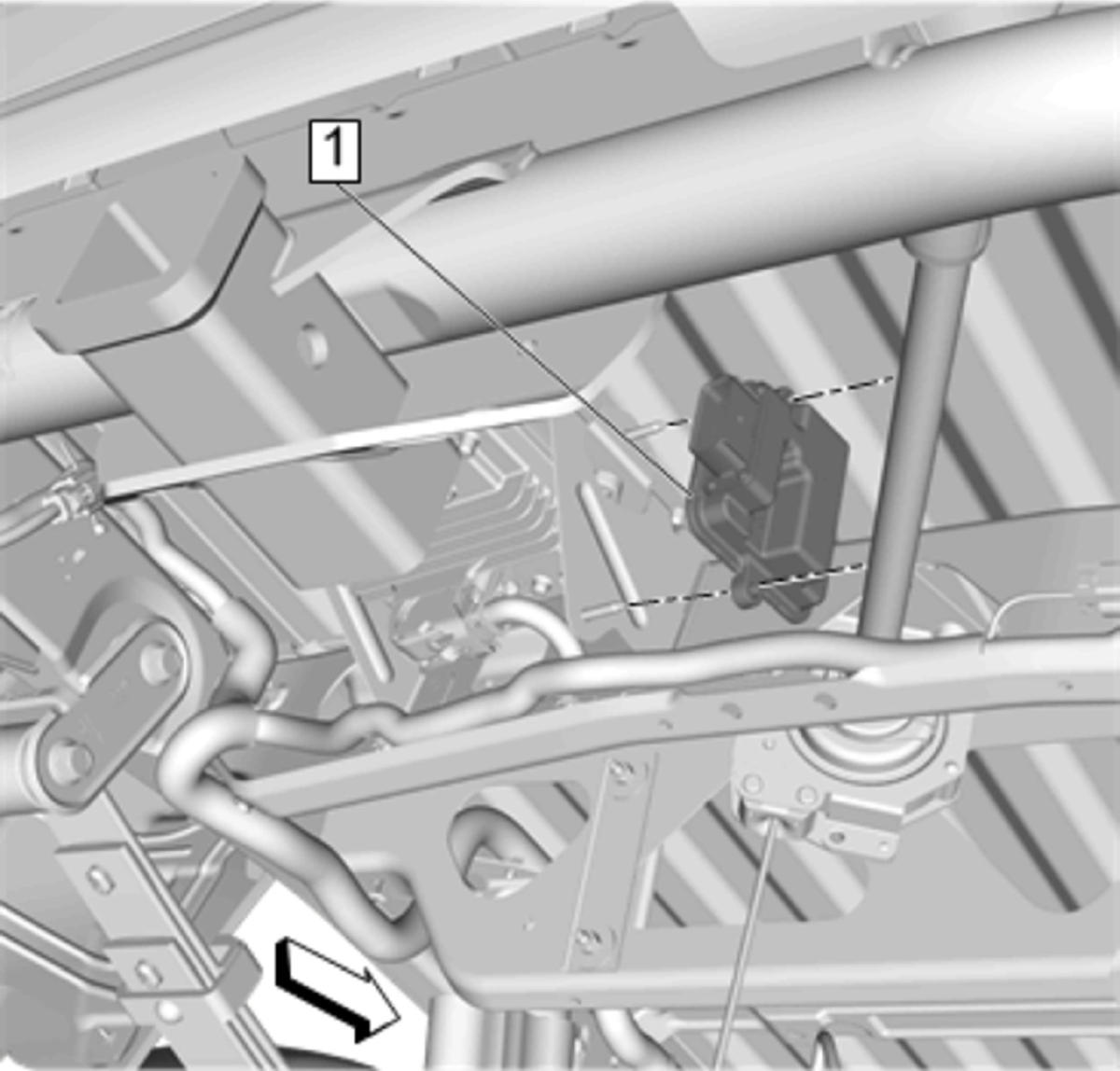

    5. Fig 3: Trailer Brake Power Control Module
    GM4556992Courtesy of GENERAL MOTORS COMPANY
  5. Remove Trailer Brake Power Control Module (1)
