Liftgate Close Switch Replacement

Callout	Component Name
Preliminary Procedure Liftgate Trim Finish Panel Pull Cup Replacement

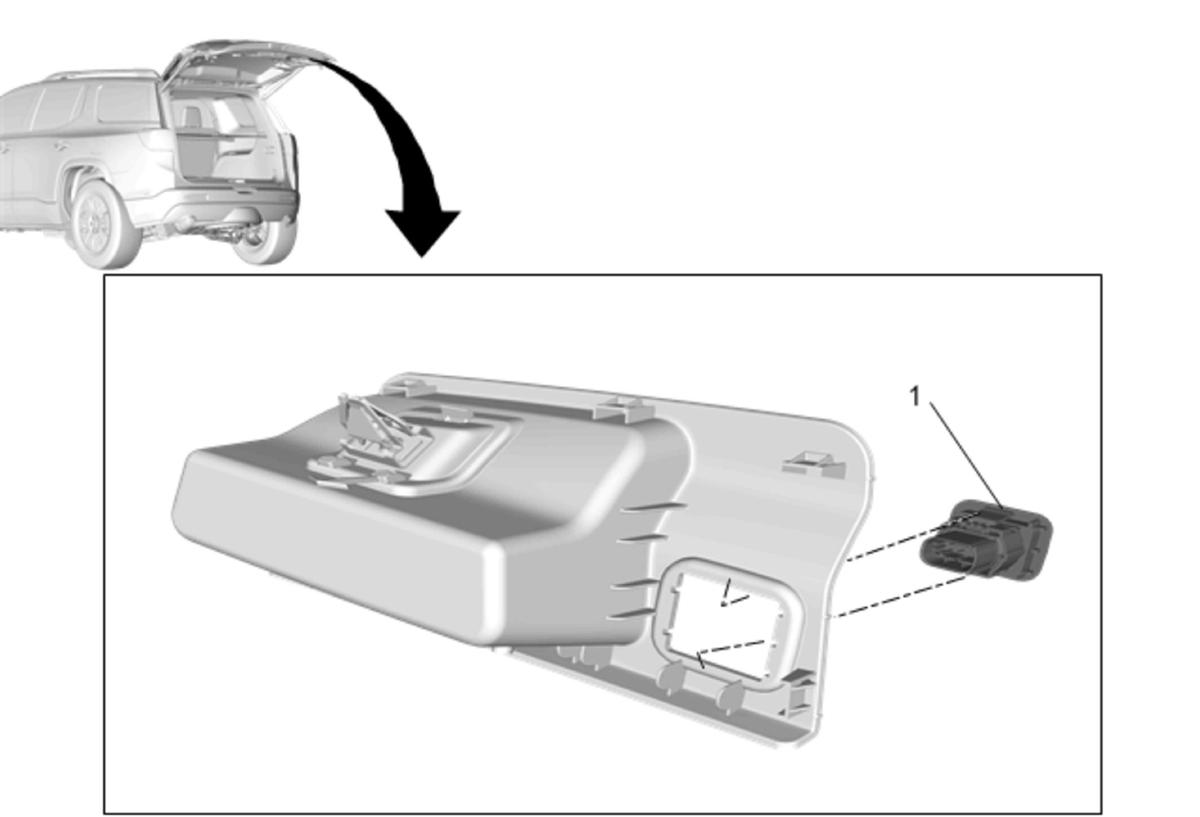

1	Liftgate Close Switch Procedure Disconnect the electrical connector. Release the liftgate close switch retainers and push out from the liftgate trim finish panel pull cup.

Callout

Component Name

Liftgate Close Switch

Procedure

Disconnect the electrical connector.
Release the liftgate close switch retainers and push out from the liftgate trim finish panel pull cup.
