Remote Function Actuator Module Replacement

Courtesy of GENERAL MOTORS COMPANY

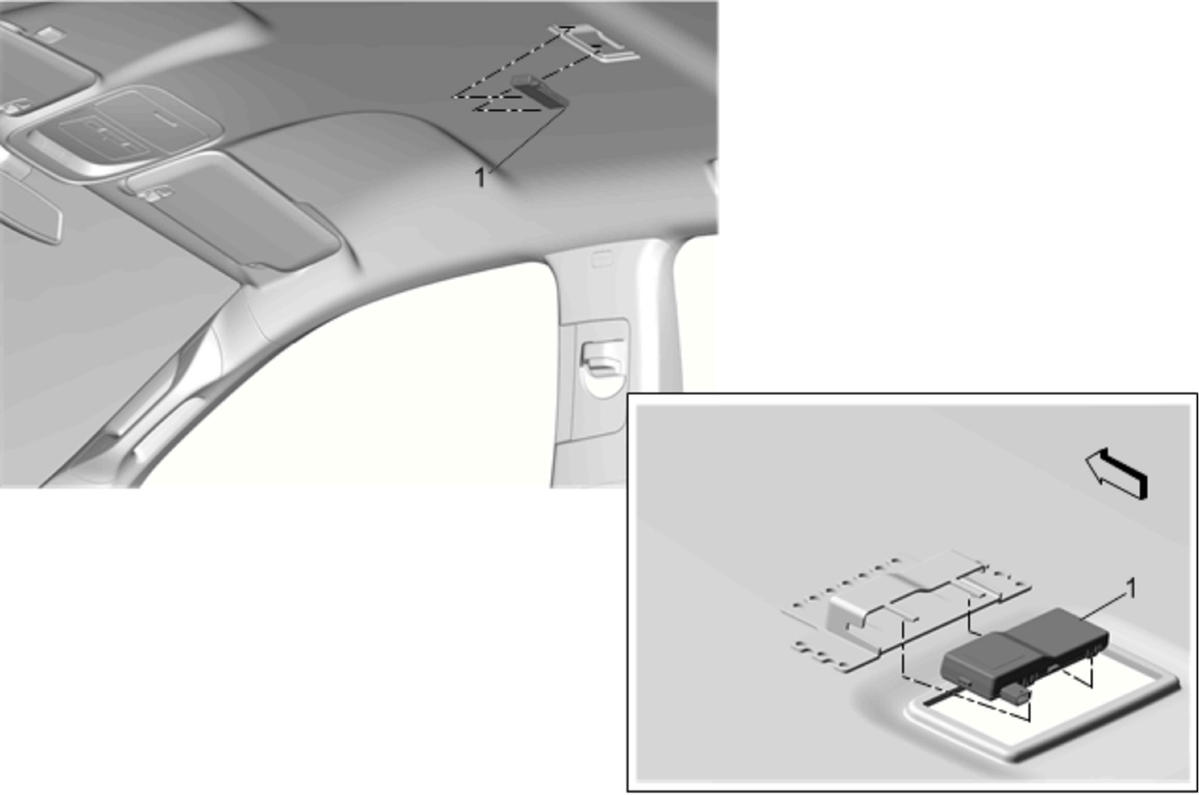

Callout	Component Name
Preliminary Procedure Center Reading and Courtesy Lamp Replacement
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector and the remote control door lock receiver antenna. Release the retaining tabs.

Callout

Component Name

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector and the remote control door lock receiver antenna.
Release the retaining tabs.
