Removal Procedure

  1. Electronic Brake Control Module with Brake Pressure Modulator Valve - Remove - Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement

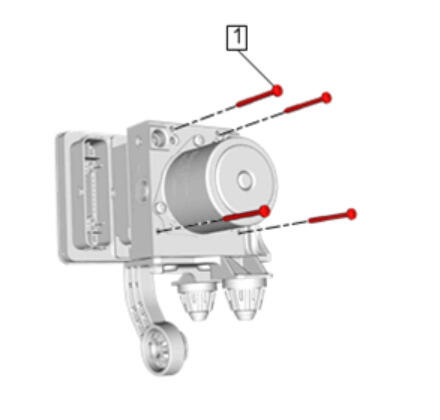

  2. Electronic Brake Control Module Bolt (1) - Remove [4x]
    GM4260195Courtesy of GENERAL MOTORS COMPANY
  3. Electronic Brake Control Module (1) - Remove
    GM4260197Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do NOT pry the components apart.

  4. Transfer components as necessary.
