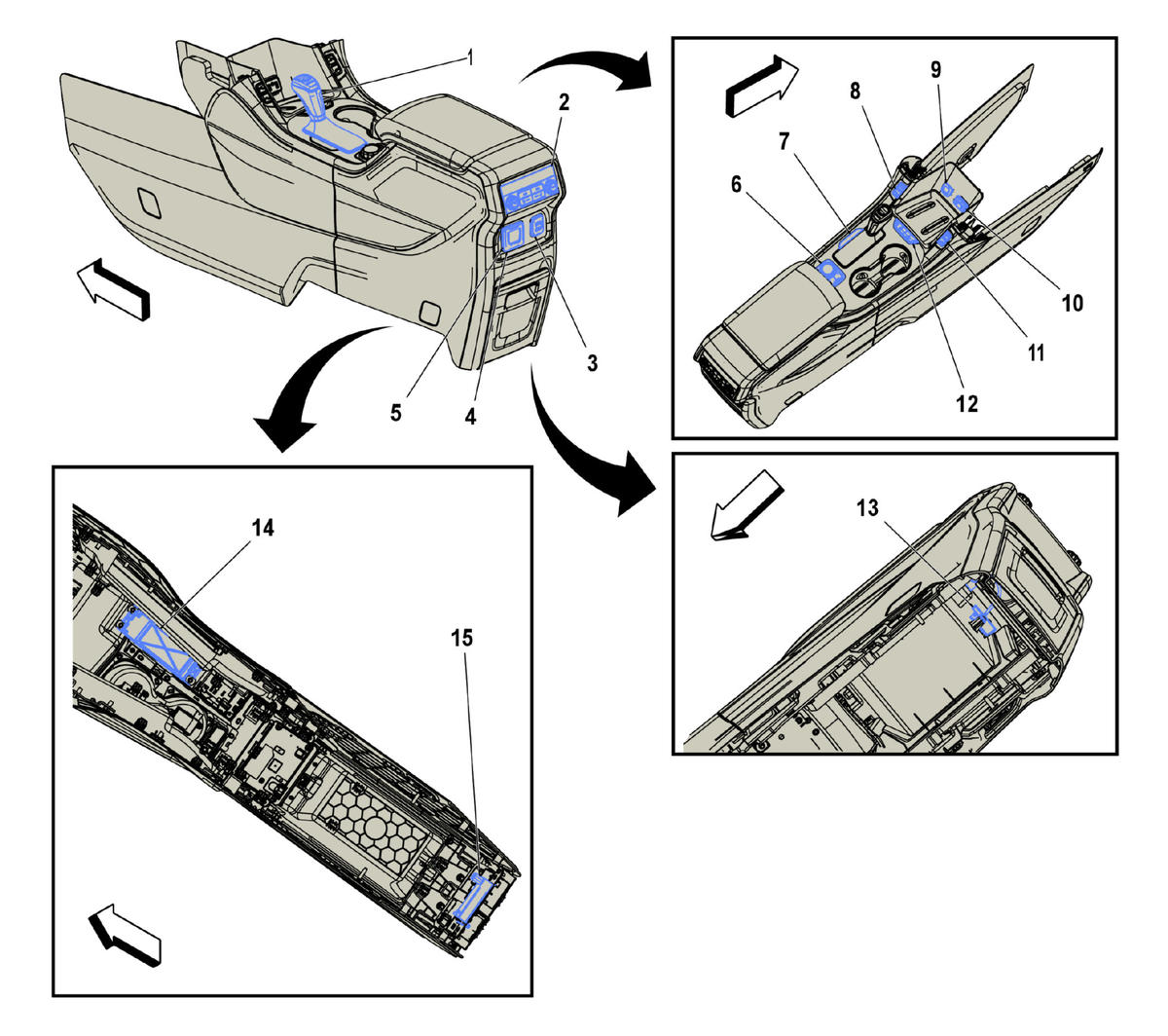

Center Console Components
NOTE:
Callouts in the following chart represent components shown in graphic above.
Center Console Components
| Component Name | Callout |
|---|---|
| S3 Transmission Shift Lever S3 Transmission Shift Lever | 1 |
| A34 HVAC Controls - Auxiliary (C69) A34 HVAC Controls - Auxiliary (C69) | 2 |
| X92 USB Receptacle X92 USB Receptacle (GMC) | 3 |
| X81 Accessory Power Receptacle - 110V AC (KI6) X81 Accessory Power Receptacle - 110V AC X1 , or X81 Accessory Power Receptacle - 110V AC X2 | 4 |
| X81B Accessory Power Receptacle - 220V AC (KI7) | 5 |
| S126 Drive Mode Select Switch S126 Drive Mode Select Switch | 6 |
| P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator | 7 |
| S32D Seat Heating Switch - Driver (KA1) S32D Seat Heating Switch - Driver (KA1+GMC) | 8 |
| X80F Accessory Power Receptacle - Front X80F Accessory Power Receptacle - Front (GMC) | 9 |
| X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (GMC) , or X83 Auxiliary Audio Input X2 (GMC) | 10 |
| S32P Seat Heating Switch - Passenger (KA1) S32P Seat Heating Switch - Passenger (C69) , or S32P Seat Heating Switch - Passenger (KA1+GMC) | 11 |
| S48E Multifunction Switch - Center Console S48E Multifunction Switch - Center Console (GMC) | 12 |
| K89 Immobilizer Control Module K89 Immobilizer Control Module | 13 |
| A97 Transmission Range Selector Controls A97 Transmission Range Selector Controls | 14 |
| T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear | 15 |
