Human-Machine Interface Control Module Bypass Module Replacement

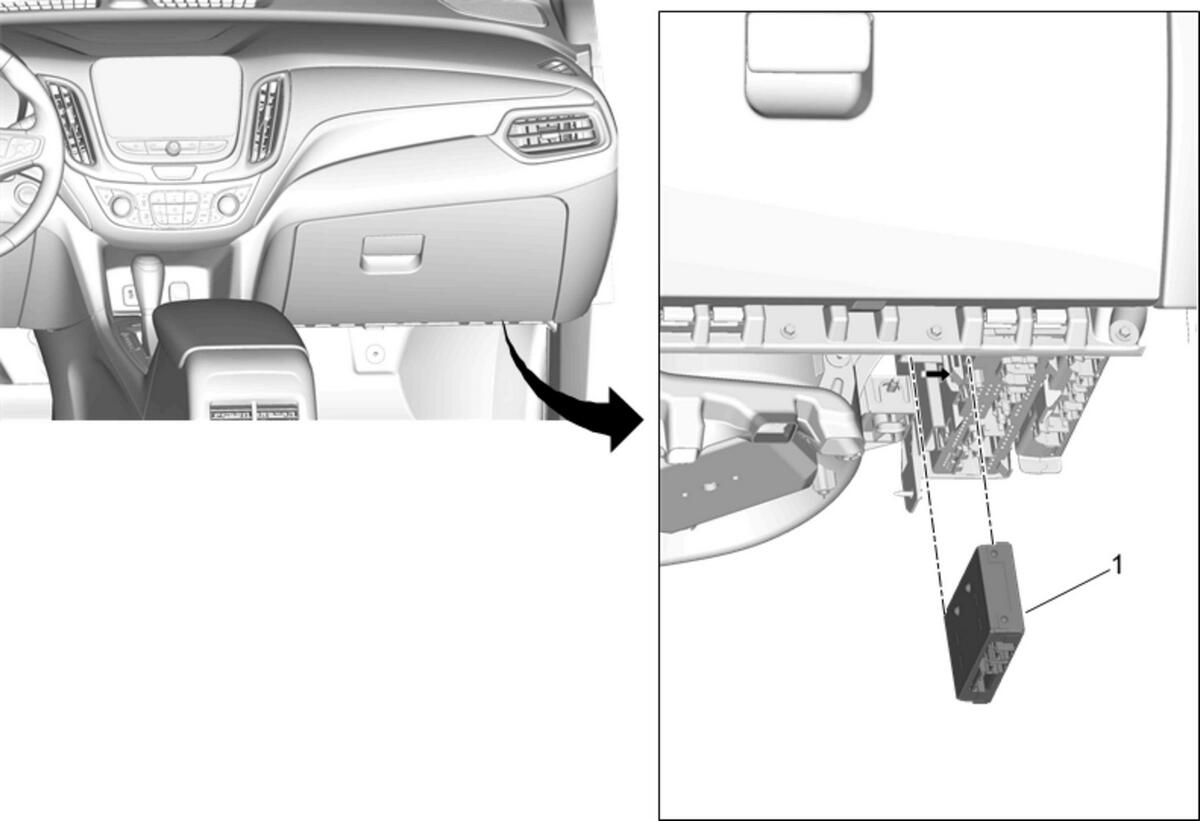

GM4578485Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Human Machine Interface Control Module Bypass Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tab.
