Keyless Entry Control Module Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

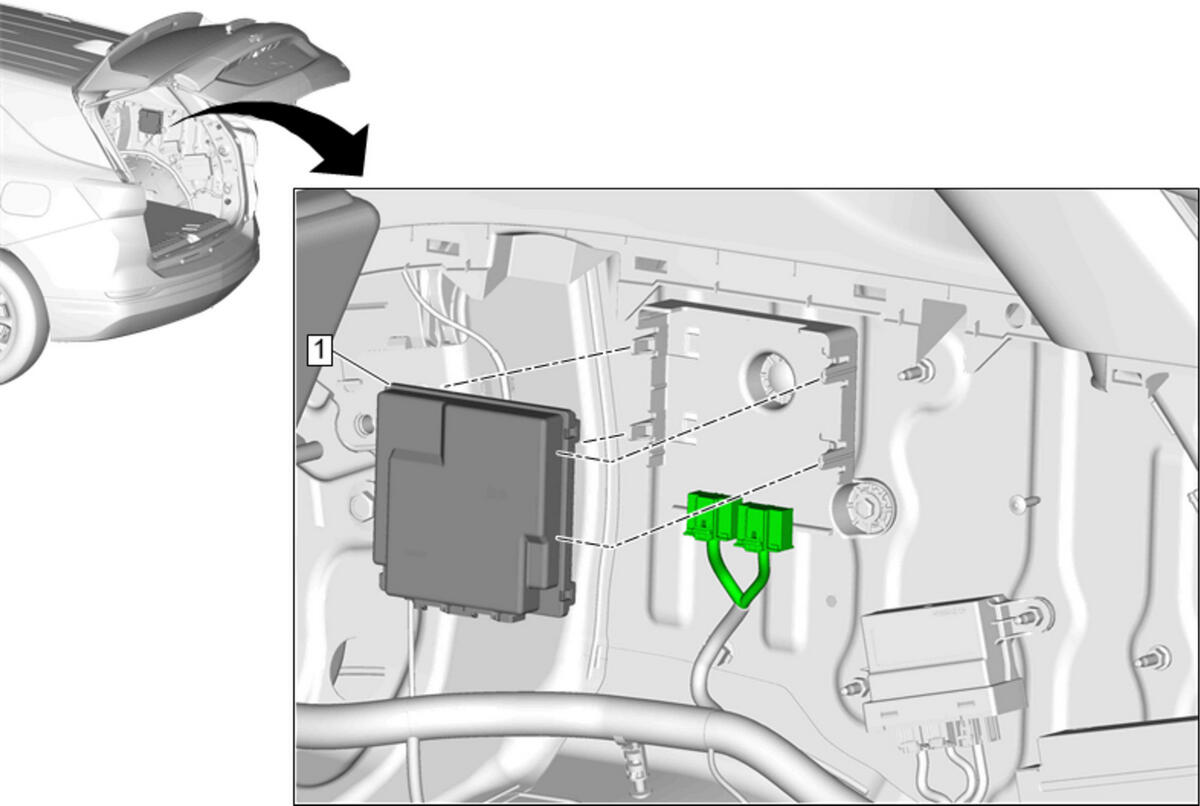

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Left Side) , or Quarter Lower Rear Trim Panel Replacement (Right Side)
1	Keyless Entry Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Keyless Entry Control Module

Procedure

Disconnect the electrical connectors.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
