Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

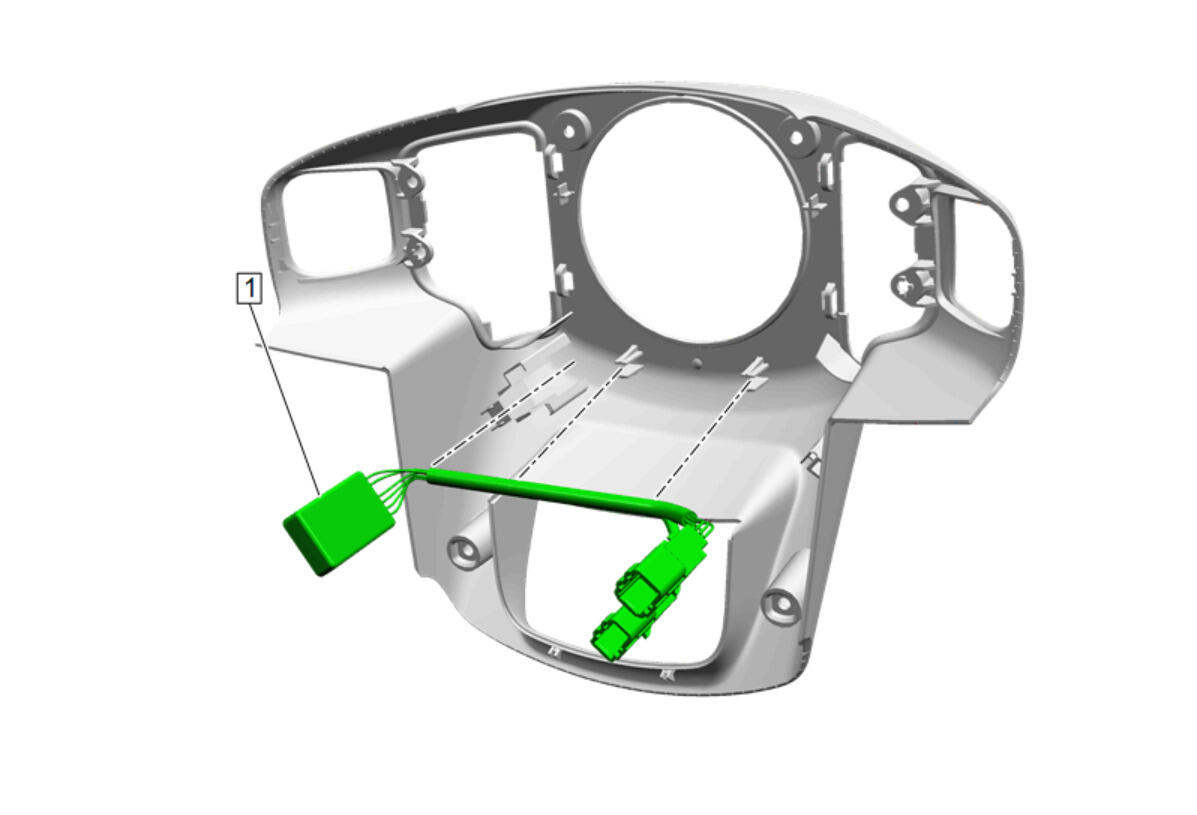

Heated Steering Wheel Module (1) - Install
Courtesy of GENERAL MOTORS COMPANY

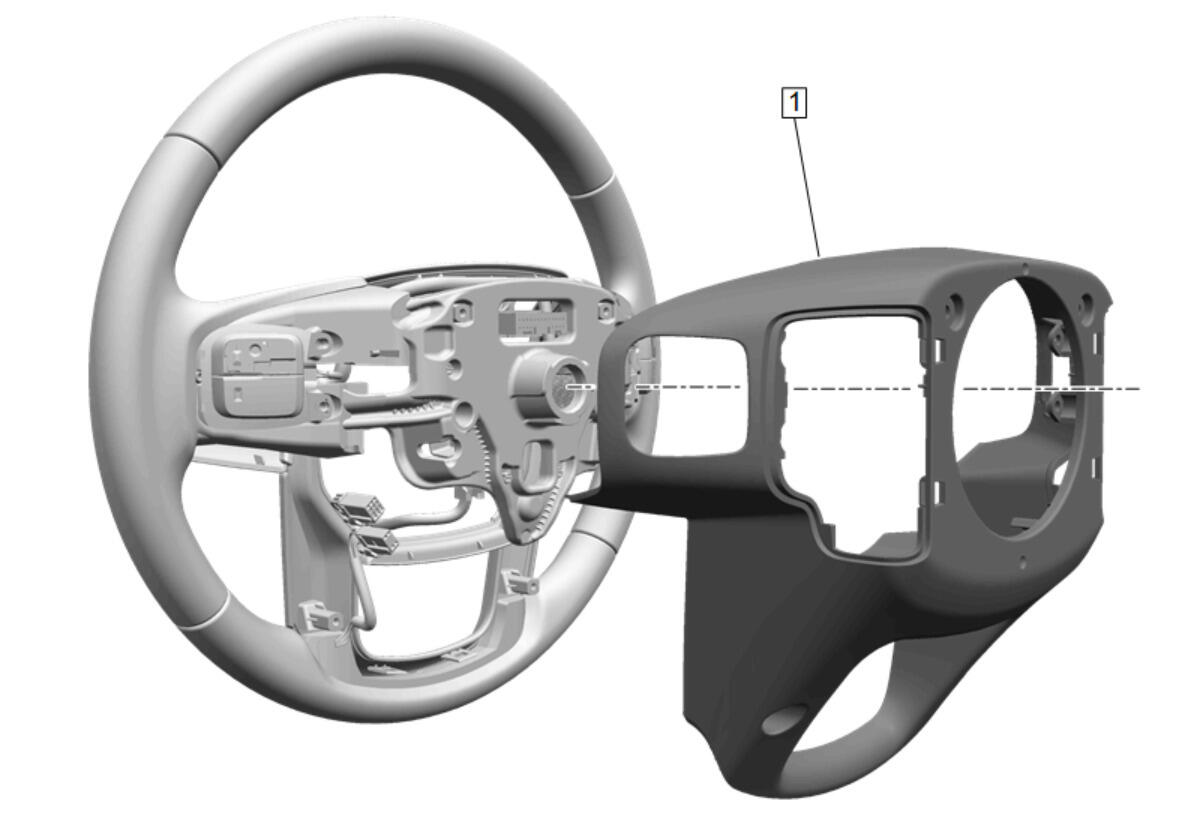

Steering Wheel Shroud (1) - Install
Connect the heated steering wheel module electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install and tighten the 4 steering wheel spoke cover bolts (1). Fastener Specifications
Install and tighten the 4 steering wheel bolts (2). Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

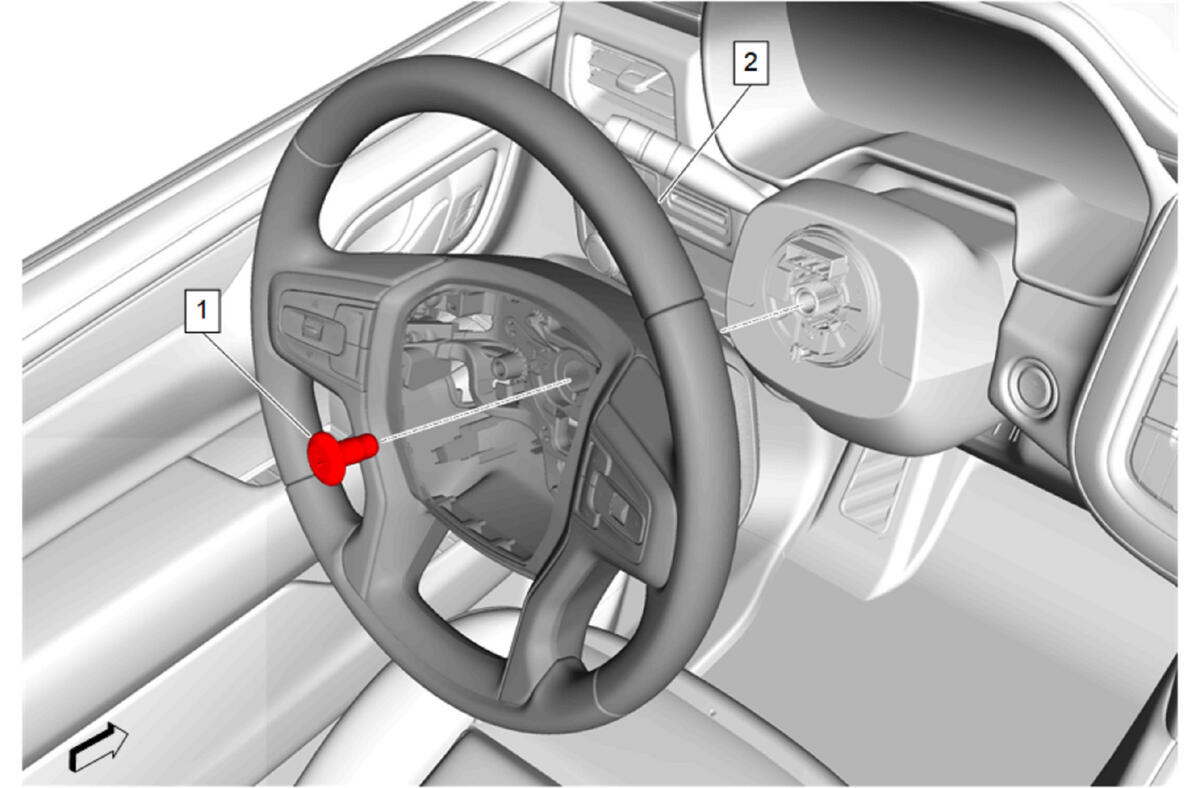

Steering Wheel (2) - Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Install any connector position assurance (CPA) devices or secondary locks.

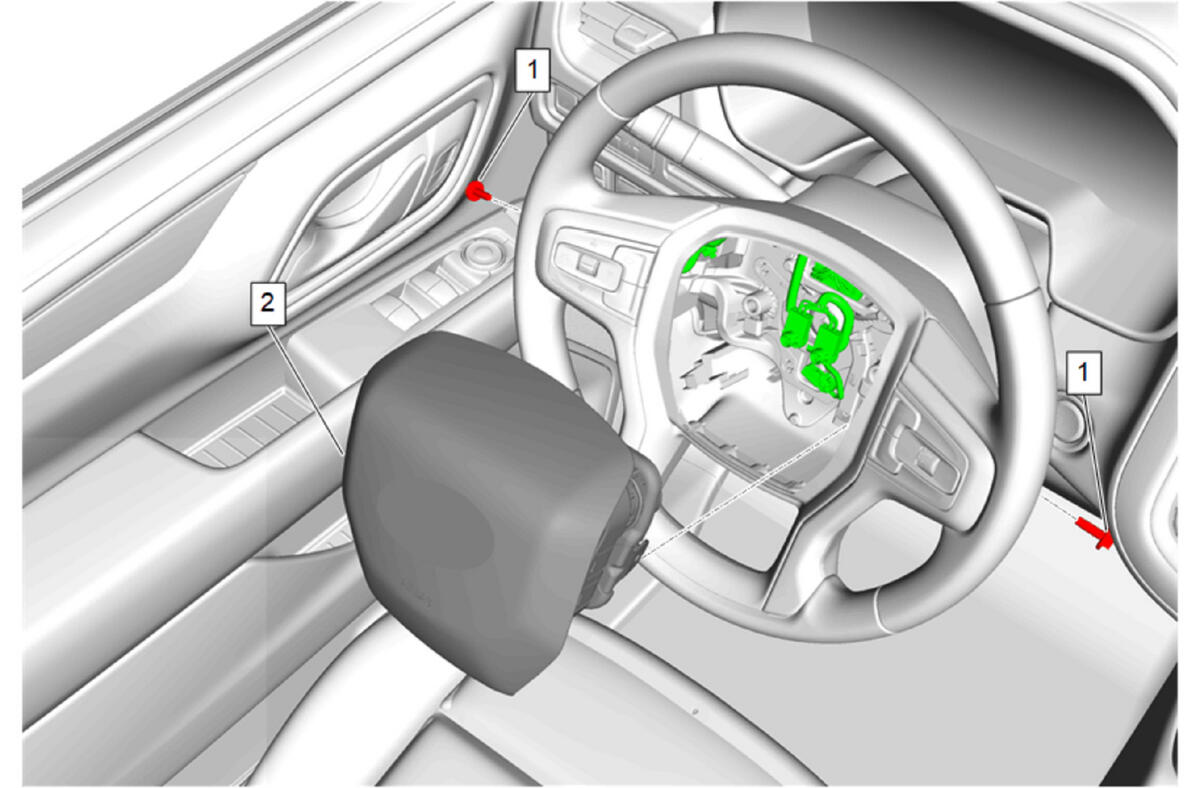

Steering Wheel Airbag (2) - Install
Steering Wheel Airbag Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the 2 steering wheel airbag access hole covers (1).
Enable the SIR System. SIR Disabling and Enabling
