Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

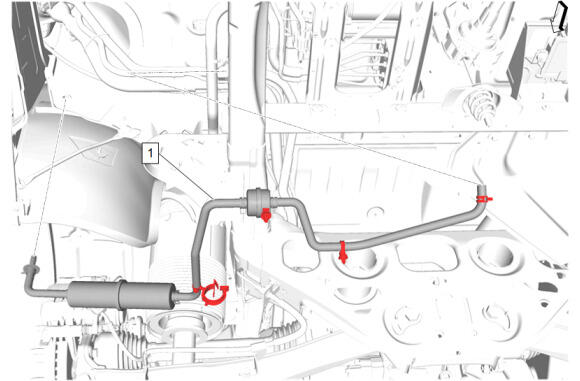

Automatic Level Control Air Compressor Inlet Tube (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the automatic level control air compressor inlet tube (1) in the body grommet.

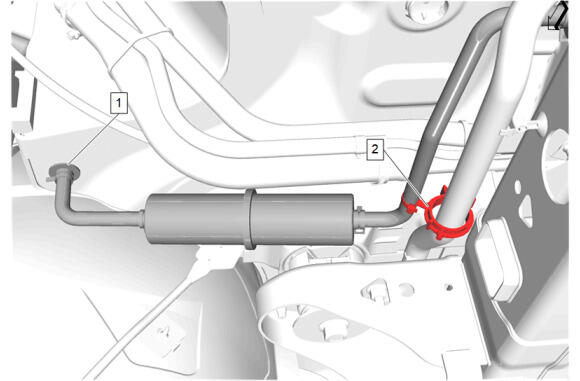

Automatic Level Control Air Compressor Tube Clip (2) - Install
Courtesy of GENERAL MOTORS COMPANY

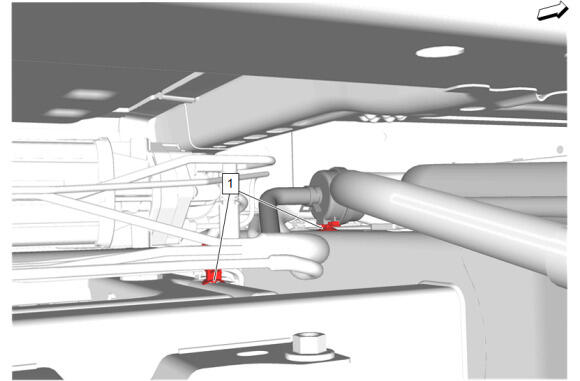

Install the 2 automatic level control air compressor inlet tube retainers (1).
Courtesy of GENERAL MOTORS COMPANY

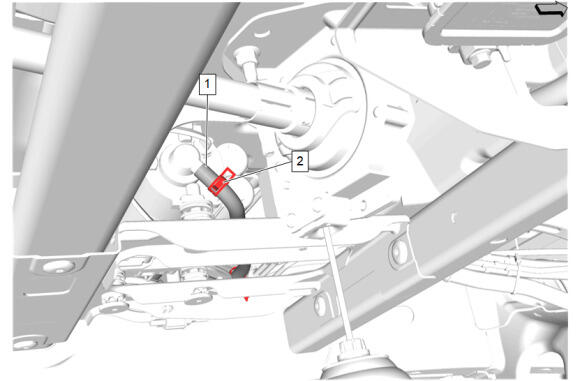

Automatic Level Control Air Compressor Inlet Tube (1) - Install
Install the hose clamp (2) on the automatic level control air compressor inlet tube (1). Hose Clamp Replacement Guidelines - Spring Type
Remove the support and lower the vehicle.
Install the spare tire and wheel assembly.
