Fastener Specifications

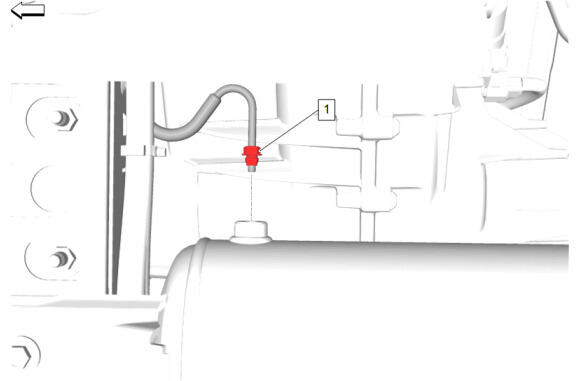

GM5783069Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Tube Fitting Replacement - Automatic Level Control Air Supply Reservoir

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Tube Fitting - - 5.5 N.m (49 lb in) Automatic Level Control Air Compressor Tube Fitting Replacement - Automatic Level Control Air Supply Reservoir

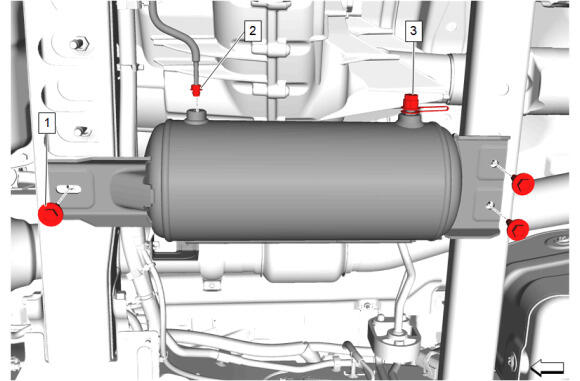

GM5619794Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Supply Reservoir Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Bolt [ 3x ] - - 58 N.m (43 lb ft) Automatic Level Control Air Supply Reservoir Replacement
2 Automatic Level Control Air Compressor Tube Fitting - - - Automatic Level Control Air Compressor Tube Fitting Replacement - Automatic Level Control Air Supply Reservoir
3 Automatic Level Control Air Supply Reservoir Coupling Cap - - - Automatic Level Control Air Supply Reservoir Coupling Replacement

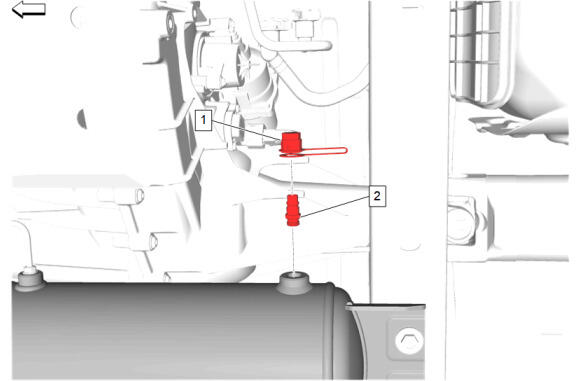

GM5782962Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Supply Reservoir Coupling Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Supply Reservoir Coupling Cap - - 2 N.m (18 lb in) Automatic Level Control Air Supply Reservoir Coupling Replacement
2 Automatic Level Control Air Supply Reservoir Coupling - - 10 N.m (89 lb in) Automatic Level Control Air Supply Reservoir Coupling Replacement

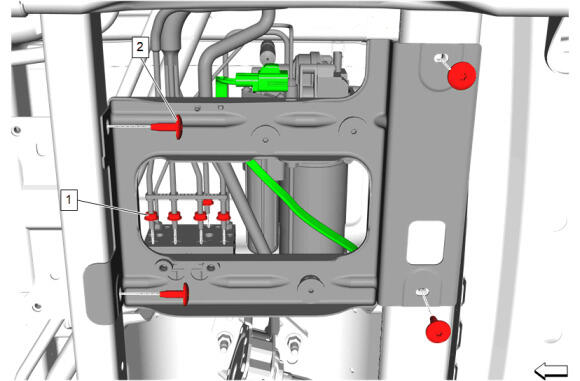

GM5619813Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Module Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Tube Fitting [ 5x ] - - - Automatic Level Control Module Replacement
2 Automatic Level Control Module Bolt [ 4x ] - - 22 N.m (16 lb ft) Automatic Level Control Module Replacement

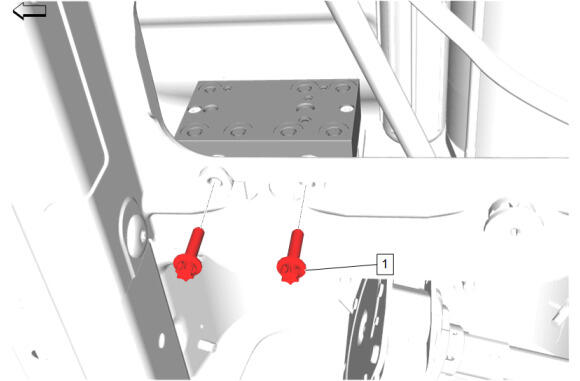

GM5778932Courtesy of GENERAL MOTORS COMPANY
Air Suspension Controller Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Solenoid Bolt [ 2x ] - - 5.65 N.m (50 lb in) Air Suspension Controller Replacement

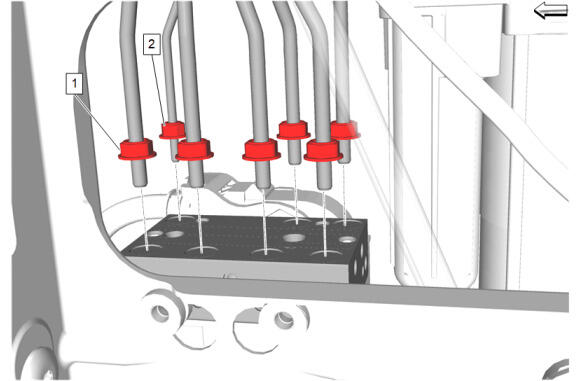

GM5785001Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Controller

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Tube Fitting- 6 MM [ 6x ] - - 5.5 N.m (49 lb in) Automatic Level Control Air Compressor Tube Fitting Replacement - Automatic Level Control Air Supply Reservoir
2 Automatic Level Control Air Compressor Tube Fitting- 4 MM - - 5.5 N.m (49 lb in) Automatic Level Control Air Compressor Tube Fitting Replacement - Automatic Level Control Air Supply Reservoir

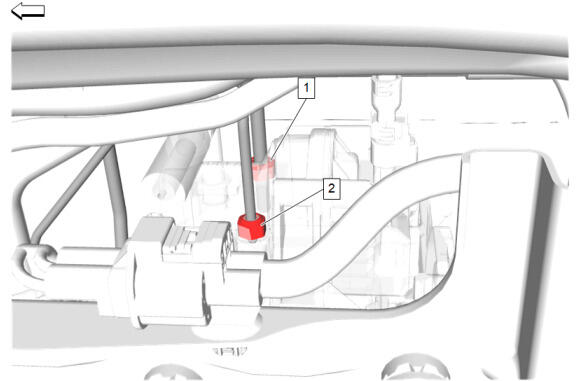

GM5786574Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Tube Fitting Replacement - Compressor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Tube Fitting- 6 MM - - 3.5 N.m (31 lb in) Automatic Level Control Air Compressor Tube Fitting Replacement - Compressor
2 Automatic Level Control Air Compressor Tube Fitting- 4 MM - - 2.25 N.m (20 lb in) Automatic Level Control Air Compressor Tube Fitting Replacement - Compressor

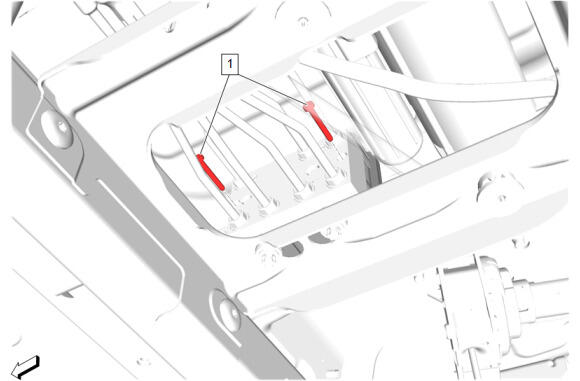

GM5765235Courtesy of GENERAL MOTORS COMPANY
Air Suspension Control Module Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Bolt [ 2x ] - - 2.5 N.m (22 lb in) Air Suspension Control Module Replacement

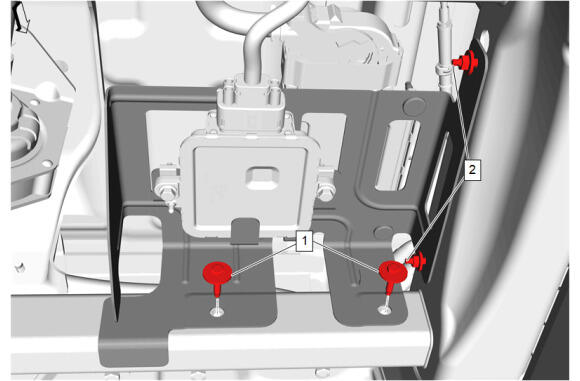

GM5619795Courtesy of GENERAL MOTORS COMPANY
Electronic Suspension Control Module Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Suspension Control Module Bracket Bolt [ 2x ] - - 9 N.m (80 lb in) Suspension Control Module Replacement
2 Electronic Suspension Control Module Bracket Stud [ 2x ] - - 9 N.m (80 lb in) Suspension Control Module Replacement

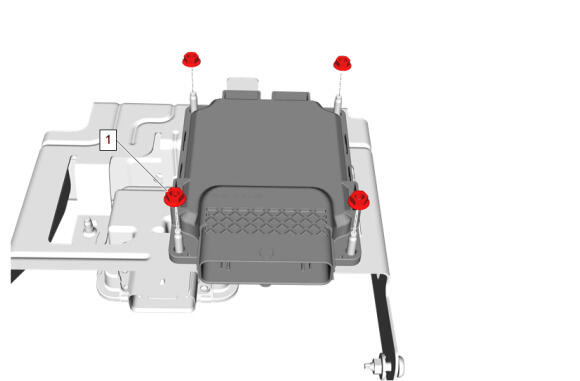

GM5619796Courtesy of GENERAL MOTORS COMPANY
Electronic Suspension Control Module Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Suspension Control Module Bracket Nut [ 4x ] - - 9 N.m (80 lb in) Suspension Control Module Replacement

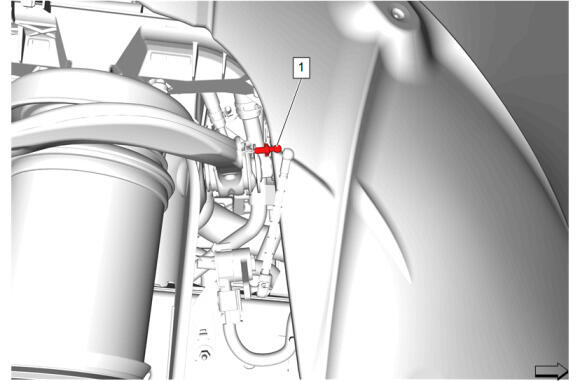

GM5619797Courtesy of GENERAL MOTORS COMPANY
Electronic Suspension Front Position Sensor Link Ball Stud Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Suspension Front Position Sensor Link Ball Stud - - 9 N.m (80 lb in) Electronic Suspension Front Position Sensor Link Ball Stud Replacement

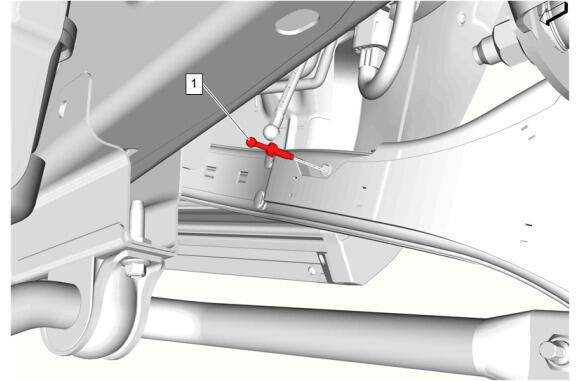

GM5619798Courtesy of GENERAL MOTORS COMPANY
Electronic Suspension Position Sensor Link Ball Stud Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Suspension Position Sensor Link Ball Stud - - 9 N.m (80 lb in) Electronic Suspension Position Sensor Link Ball Stud Replacement

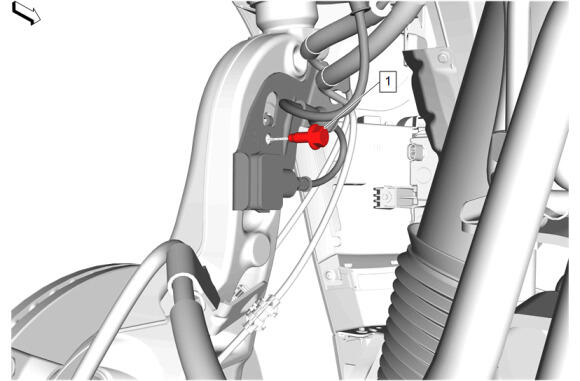

GM5619801Courtesy of GENERAL MOTORS COMPANY
Electronic Suspension Wheel Front Vertical Accelerometer Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Suspension Rear Vertical Accelerometer Bolt - - 9 N.m (80 lb in) Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Left Side
Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Right Side

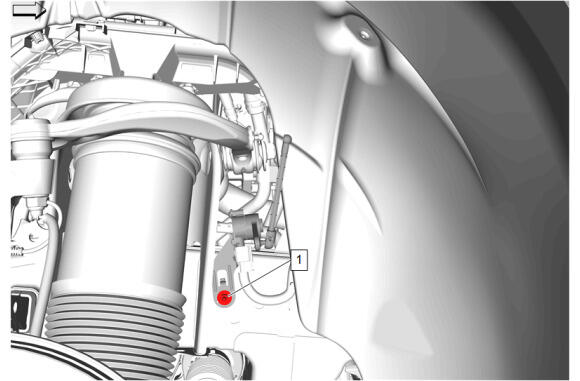

GM5619815Courtesy of GENERAL MOTORS COMPANY
Front Suspension 4 Corner Leveling System Position Sensor Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Suspension 4 Corner Leveling System Position Sensor - - 9 N.m (80 lb in) Front Suspension 4 Corner Leveling System Position Sensor Replacement

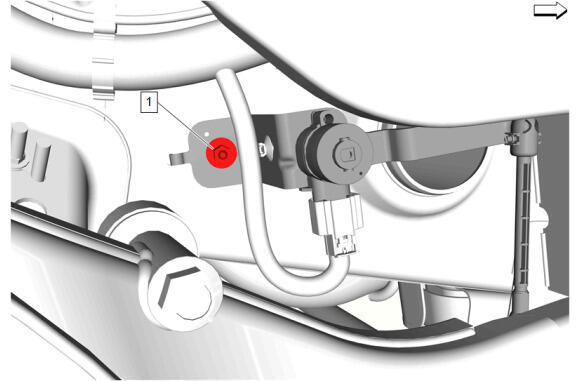

GM5619802Courtesy of GENERAL MOTORS COMPANY
Rear Suspension 2 or 4 Corner Air Leveling Position Sensor Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension 2 or 4 Corner Air Leveling Position Sensor - - 9 N.m (80 lb in) Rear Suspension 2 or 4 Corner Air Leveling Position Sensor Replacement
