Installation Procedure

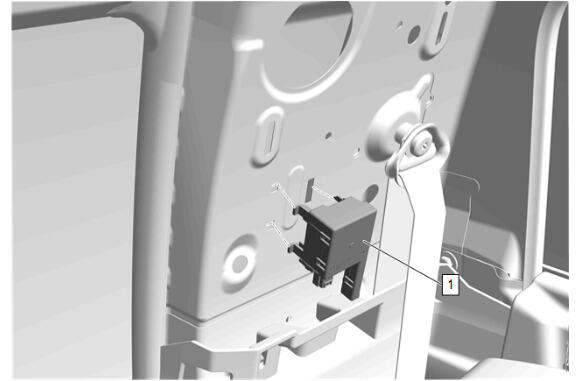

  1. GM5830147
    NOTE:

    Some components not shown for graphic clarity.

    Remote Function Actuator Module (1) - Install

  2. Secure the retaining tab.
  3. Connect the electrical connector.

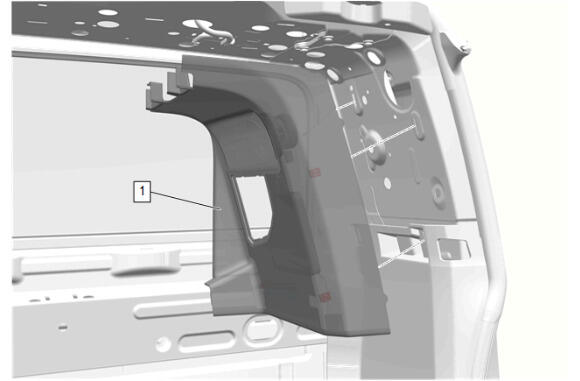

  4. GM5777896
    NOTE:

    Left side shown, right side similar.

    Body Side Rear Window Garnish Molding (1) - Install
