Installation Procedure

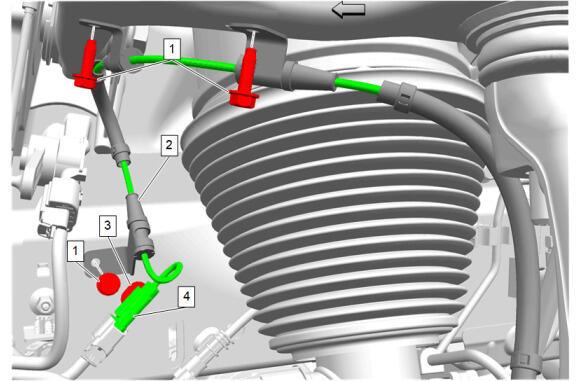

  1. GM5830321Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Wheel Speed Sensor Bolt (1) - Install and tighten [3x] - Fastener Specifications
  3. Front Wheel Speed Sensor Retainer (3) - Install
  4. Connect the electrical connector. (4)

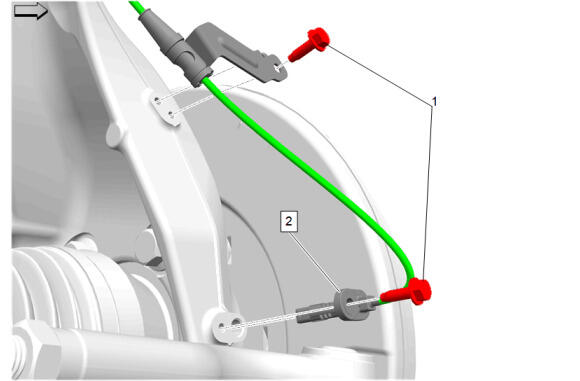

  5. GM5830322Courtesy of GENERAL MOTORS COMPANY

    Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (2) and mounting pad on the steering knuckle. Adhesives, Fluids, Lubricants, and Sealers

  6. Front Wheel Speed Sensor (2) @ Steering Knuckle - Install
  7. Front Wheel Speed Sensor Bolt (1) - Install and tighten [2x] - Fastener Specifications
  8. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  9. Remove the support and lower the vehicle.
