Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

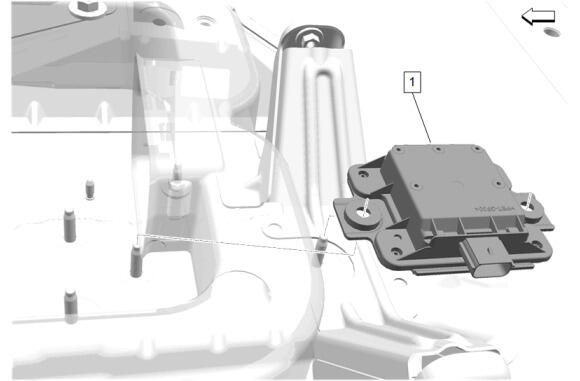

Vehicle Dynamic Sensor (1) - Install
Connect the electrical connector.
Maneuver the vehicle dynamic sensor (1) underneath the floor rear air outlet duct.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:
Some components not shown for graphic clarity.

Vehicle Dynamic Sensor Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

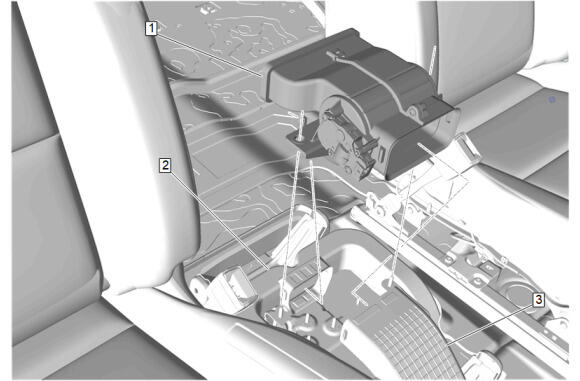

Maneuver the floor rear air distributor (1) into the front floor console rear air duct (3) to install.
Courtesy of GENERAL MOTORS COMPANY

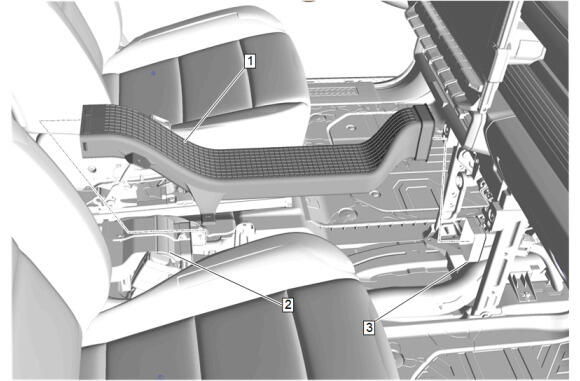

Install the front floor console rear air duct (1) into the floor rear air distributor (2).
Maneuver the front floor console rear air duct (1) into the auxiliary blower motor (3) and install the duct.
Courtesy of GENERAL MOTORS COMPANY

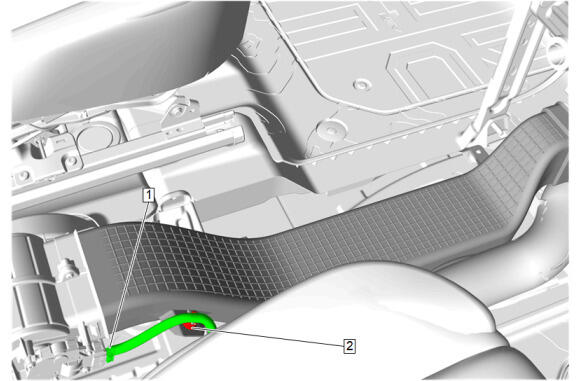

Wiring Harness Retainer (2) - Install
Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

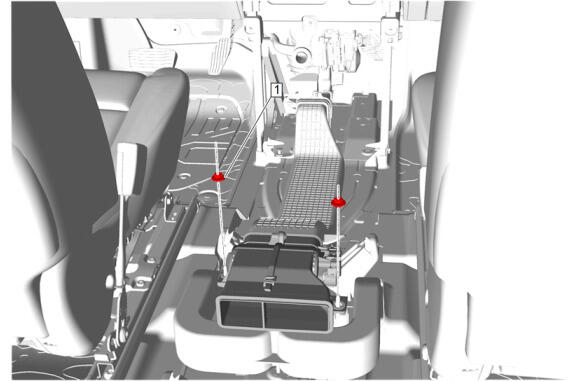

Floor Rear Air Distributor Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

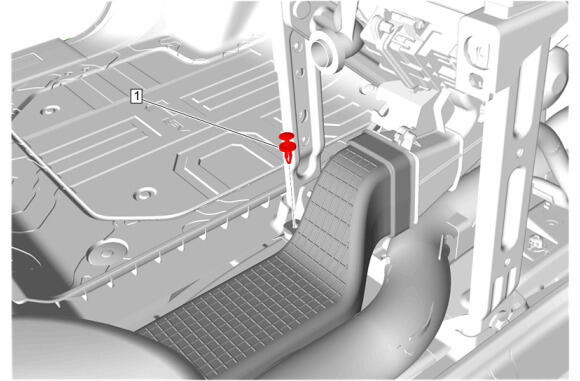

Floor Front Air Outlet Duct Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

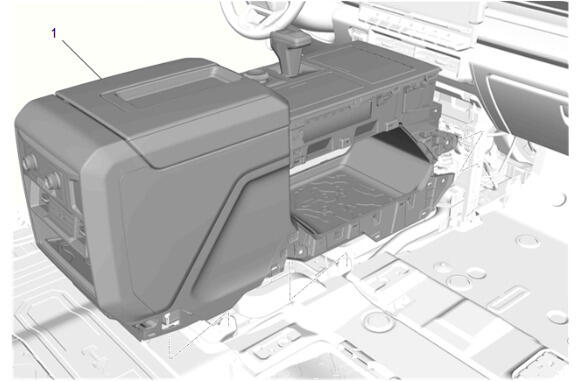

Front Floor Console (1) - Install - Front Floor Console Removal and Installation
Perform the vehicle dynamic sensor offset calibration. Vehicle Dynamic Sensor Offset Calibration
