Rear Powertrain Components
Rear Powertrain Components

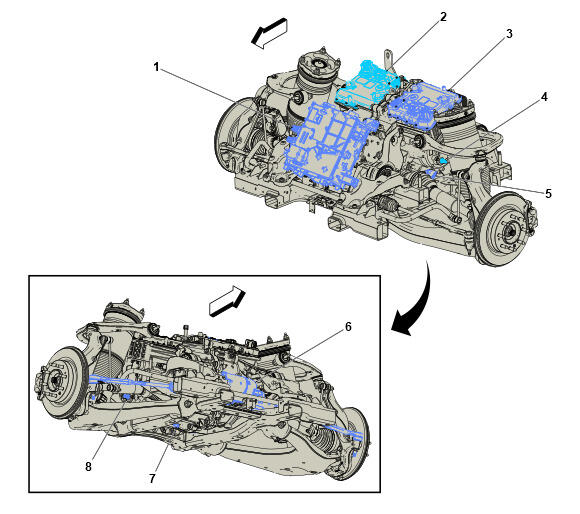

| Components |
|---|
| 1. T18 Battery Charger T18 Battery Charger X1 , or T18 Battery Charger X2 , or T18 Battery Charger X5 , or T18 Battery Charger X6 , or T18 Battery Charger X7 , or T18 Battery Charger X8 |
| 2. K107B Drive Motor Control Module 2 K107B Drive Motor Control Module 2 X1 , or K107B Drive Motor Control Module 2 X2 |
| 3. K107C Drive Motor Control Module 3 K107C Drive Motor Control Module 3 X1 , or K107C Drive Motor Control Module 3 X2 |
| 4. B228C Drive Motor 3 Position Sensor B228C Drive Motor 3 Position Sensor |
| 5. G5B Automatic Transmission Auxiliary Fluid Pump 2 G5B Automatic Transmission Auxiliary Fluid Pump 2 |
| 6. K92 Active Rear Steering Motor Control Module K92 Active Rear Steering Motor Control Module X1 , or K92 Active Rear Steering Motor Control Module X2 |
| 7. B389R Drive Unit Fluid Temperature Sensor - Rear B389R Drive Unit Fluid Temperature Sensor - Rear |
| 8. B228B Drive Motor 2 Position Sensor B228B Drive Motor 2 Position Sensor |
