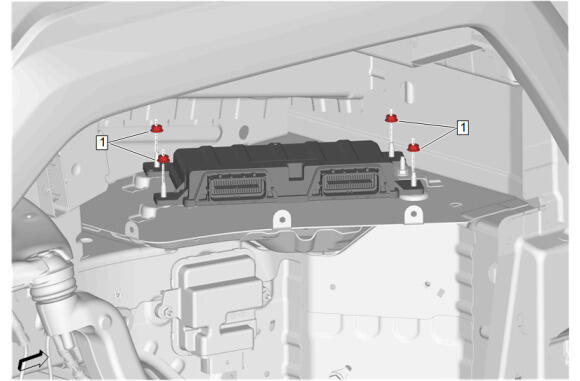

Battery Energy Control Module 2 Nuts
Battery Energy Control Module 2 Nuts
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Hybrid Powertrain Control Module 2 Nut [4x] | - | - | 9 N.m (80 lb in) | Battery Energy Control Module 2 Replacement |
