Fastener Specifications

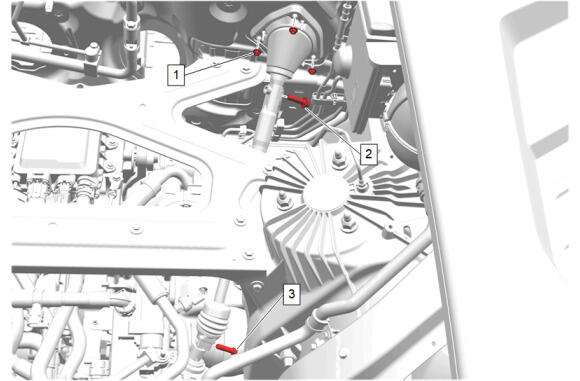

GM5834992Courtesy of GENERAL MOTORS COMPANY
Intermediate Steering Shaft

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Seal Nut [3x] - - 9 N.m (80 lb in) Intermediate Steering Shaft Boot Replacement
2 Mid Intermediate Steering Shaft Bolt - Yes 58 N.m (43 lb ft) Intermediate Steering Shaft Replacement
3 Intermediate Steering Shaft Lower Bolt - Yes 50 N.m (37 lb ft) Intermediate Steering Shaft Replacement

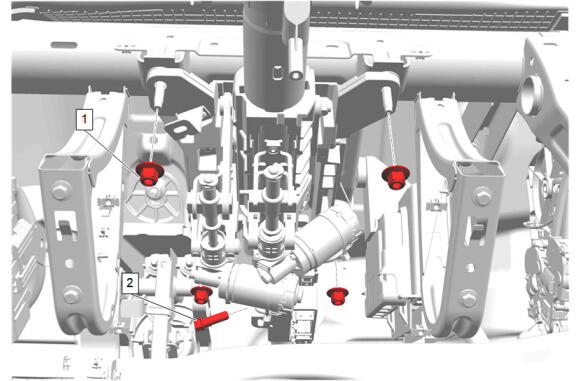

GM5834995Courtesy of GENERAL MOTORS COMPANY
Steering Column

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Nut [4x] - - Steering Column Nut Sequence  Steering Column Replacement
2 Upper Intermediate Steering Shaft Bolt - Yes 45 N.m (33 lb ft) Upper Intermediate Steering Shaft Replacement

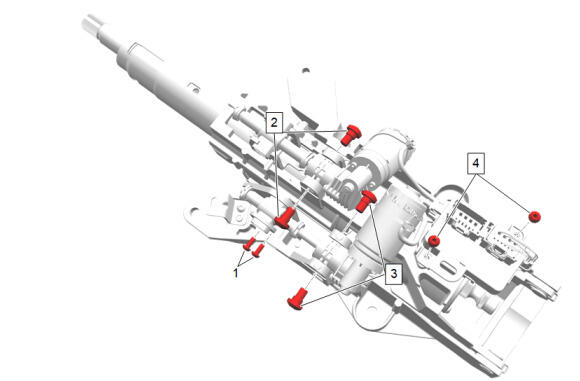

GM5845808Courtesy of GENERAL MOTORS COMPANY
Steering Column Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Bracket Bolt [2x] - - 8 N.m (71 lb in) Steering Column Tilt Wheel Actuator Motor Replacement
2 Steering Column Telescope Actuator Bolt [2x] - - 14 N.m (10 lb ft) Steering Column Telescope Actuator Motor Replacement
3 Steering Column Tilt Wheel Actuator Bolt [2x] - - 14 N.m (10 lb ft) Steering Column Tilt Wheel Actuator Motor Replacement
4 Steering Column Control Module Bracket Bolt [2x] - - 4.5 N.m (40 lb in) Steering Column Control Module Replacement

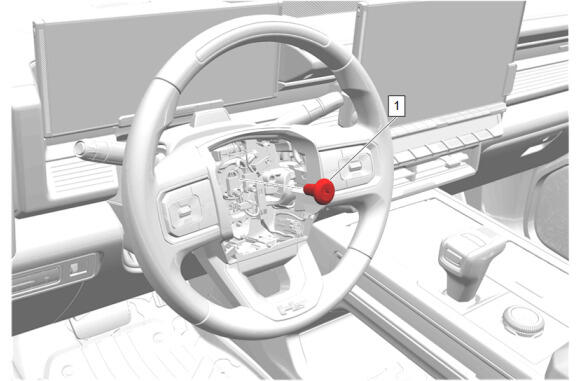

GM5810855Courtesy of GENERAL MOTORS COMPANY
Steering Wheel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt - Yes 45 N.m (33 lb ft) Steering Wheel Replacement

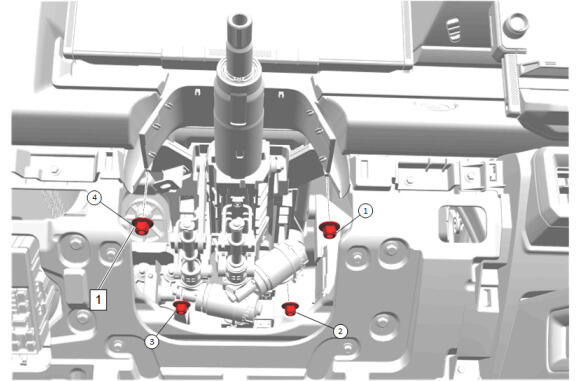

Fig 1: Steering Column Nut Tightening Sequence
GM5834910Courtesy of GENERAL MOTORS COMPANY
Steering Column Nut Sequence
Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Nut [4x] - - 22 N.m (16 lb ft) Steering Column Replacement
