Removal Procedure

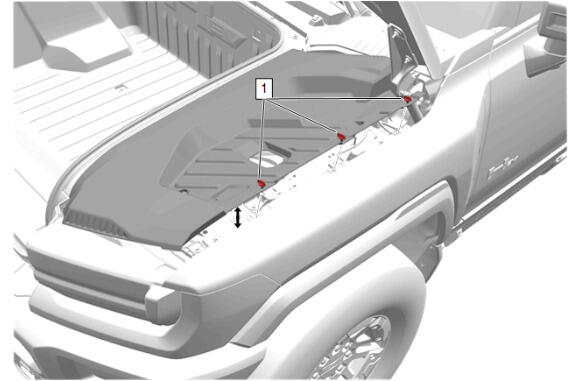

  1. GM5787985Courtesy of GENERAL MOTORS COMPANY

    Turn the 3 front compartment side sight shield retainers (1) a quarter turn counter clockwise to release.

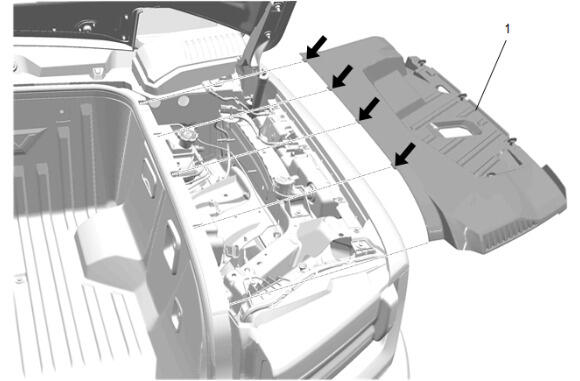

  2. GM5787987Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield- Left Side (1) - Remove

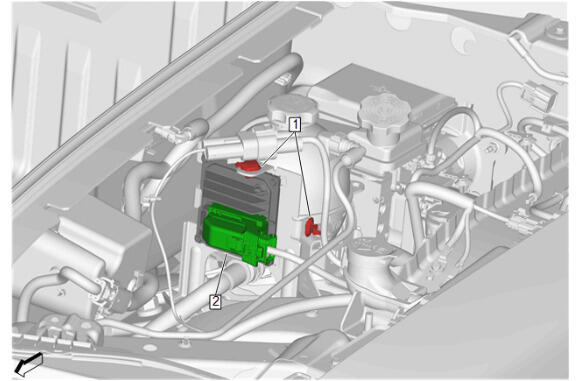

  3. GM5898677Courtesy of GENERAL MOTORS COMPANY

    Remove the body wiring harness retainers (1).

  4. Disconnect the electrical connector. (2)

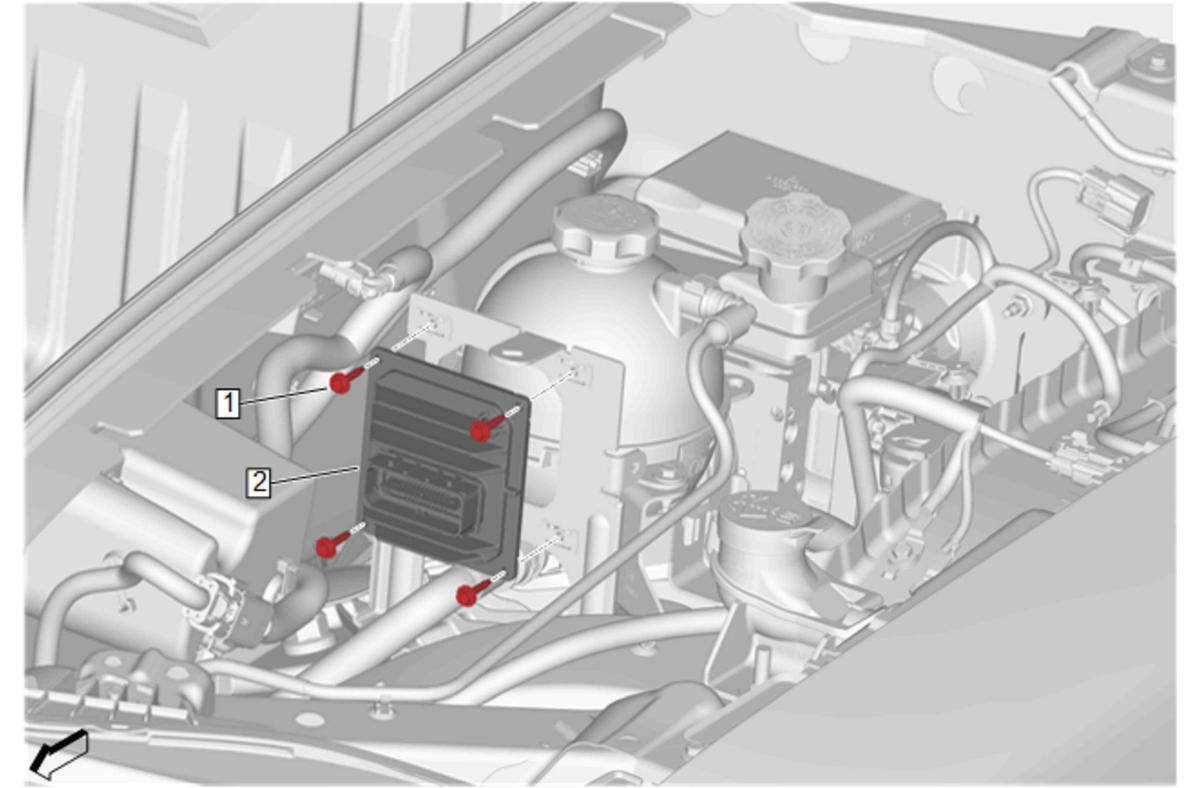

  5. GM5898678Courtesy of GENERAL MOTORS COMPANY

    Chassis Control Module Bolt (1) - Remove [4x]

  6. Chassis Control Module (2) - Remove
