Wireless Charging System Module Replacement

Courtesy of GENERAL MOTORS COMPANY

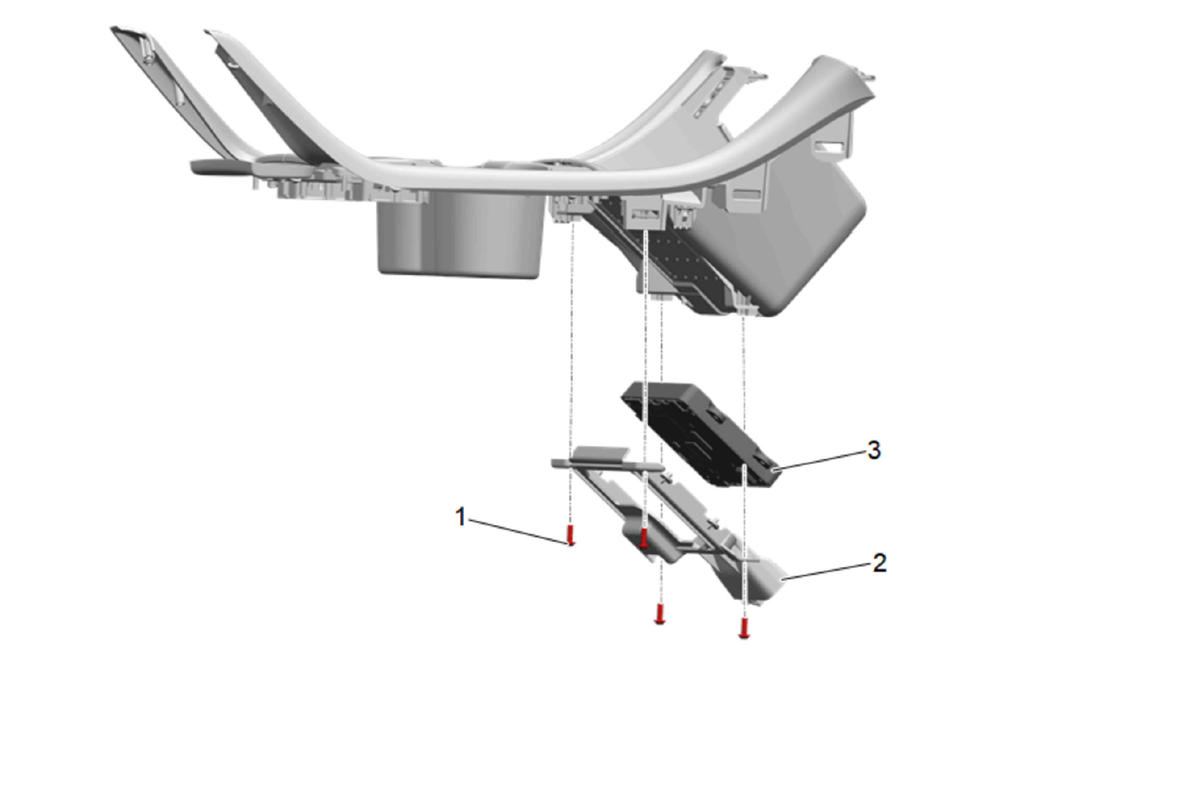

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Floor Console Trim Plate Replacement
1	Wireless Charging System Module Bolt [4x] CAUTION: Fastener Caution Tighten  1 N.m (9 lb in)
2	Wireless Charging System Module Bracket
3	Wireless Charging System Module
