Fastener Specifications

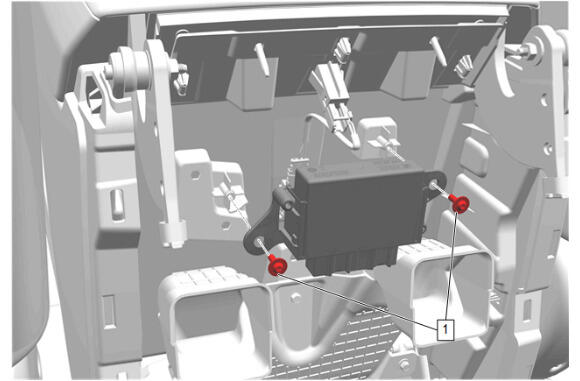

Low Frequency Console Antenna
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Theft Deterrent Module Bolt [2x] | - | - | 1 N.m (9 lb in) | Low Frequency Console Antenna Replacement |

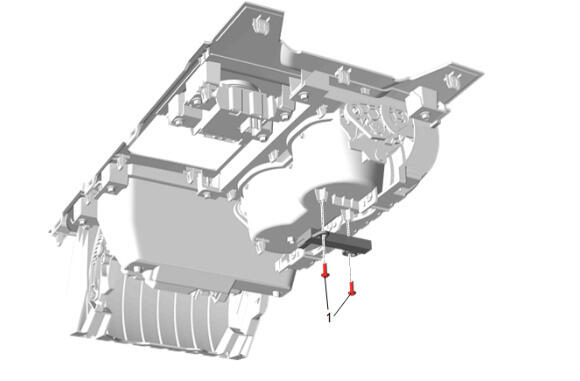

UHF Short Range Low Energy Remote Control Access Transceiver
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | UHF Short Range Low Energy Remote Control Access Transceiver Bolt [2x] | - | - | 1.5 N.m (13 lb in) | UHF Short Range Low Energy Remote Control Access Transceiver Replacement |
