Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

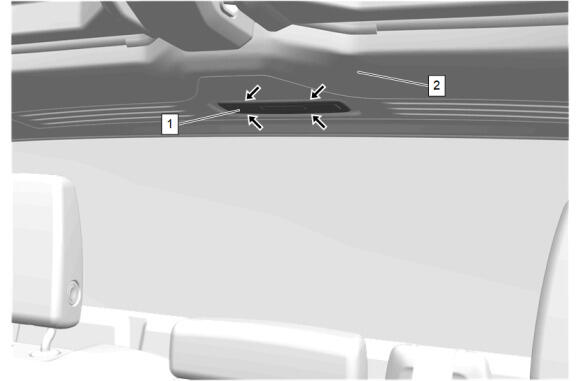

Insert a suitable flat-bladed plastic trim tool between the rear seat position center reading and courtesy lamp (1) and headlining rear trim panel (2).
Separate the rear seat position center reading and courtesy lamp (1) from the headlining rear trim panel (2).
Courtesy of GENERAL MOTORS COMPANY

Pull downward to release the retaining tabs.
Rear Seat Position Center Reading and Courtesy Lamp (1) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Use a flat-bladed plastic trim tool to release the retaining clips.
Disconnect the wiring harness retainer.
Headlining Rear Trim Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The body side rear window garnish molding does not need to be removed from the vehicle.

NOTE:
Left side shown, right side similar.

Body Side Rear Window Garnish Molding (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Disconnect the electrical connector.
Release the retaining tab.
Remote Function Actuator Module (1) - Remove
