Installation Procedure

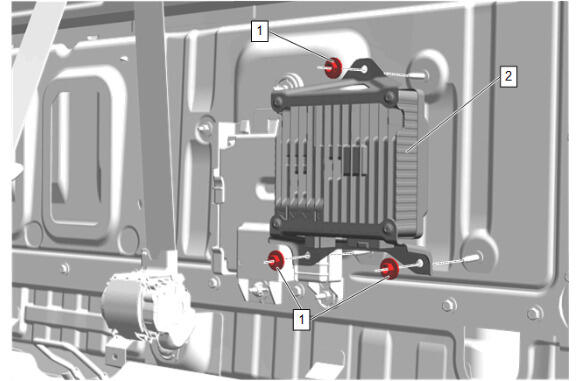

  1. GM5791755Courtesy of GENERAL MOTORS COMPANY

    Accessory AC and DC Power Control Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Accessory AC and DC Power Control Module Nut (1) - Install and tighten [ 3x] - Fastener Specifications
  3. Connect the electrical connectors.

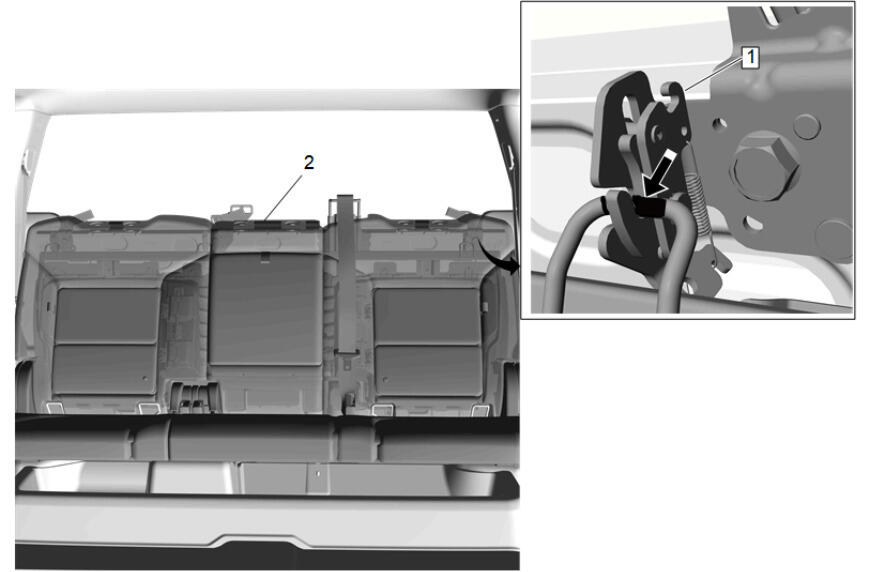

  4. GM5437905Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Cushion (2) - Install - Rear Seat Back Cushion Removal and Installation
