Removal Procedure
Remove the left and right front floor mat (1).
- NOTE:
Use a flat bladed plastic trim tool.
Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Remove
- Front Floor Console Extension Bolt (2) - Remove
Move the front seat to access the retainers.
- Front Floor Console Extension Panel (1) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
- Front Floor Console Lower Applique (1) - Remove
Tire Repair Sealer and Tire Air Compressor Retainer (1) - Remove
- Tire Air Compressor (2) - Remove
Rear Floor Mat (1) - Remove
Move the front seat to access the retainers.
- Front Floor Console Bolt Access Hole Cover (1) - Remove
- Front Floor Console Retainer Bolt (2) - Remove [ 5x]
- NOTE:
Use a flat bladed plastic trim tool.
Move the front seat to access the retainers.
- Front Floor Console Extension Panel (1) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
- Front Floor Console Lower Applique (1) - Remove
Move the front seat to access the retainers.
- Front Floor Console Bolt Access Hole Cover (1) - Remove
- Front Floor Console Retainer Bolt (2) - Remove [ 5x]
Disconnect the electrical connectors from the front floor console (1).

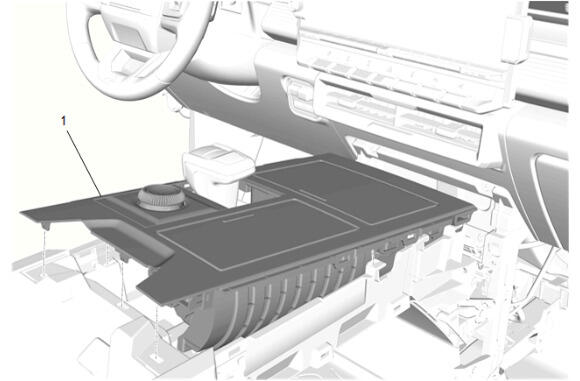

- Slide the front floor console (1) back enough to clear the instrument panel.
Release the retainers with a suitable plastic trim tool.
- Reposition the front floor console cup holder trim plate (1) to access the electrical connectors.
- Disconnect the electrical connectors.
Front Floor Console Cup Holder Trim Plate (1) - Remove

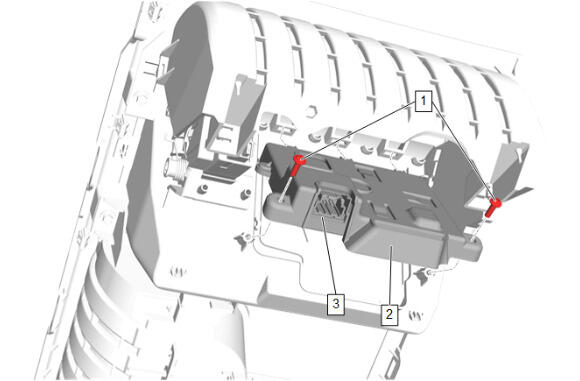

Wireless Charging System Module Bracket Bolt (1) - Remove [ 2x]
- Remove the Wireless Charging System Module Bracket (2) and Wireless Charging System Module (3) as an assembly.

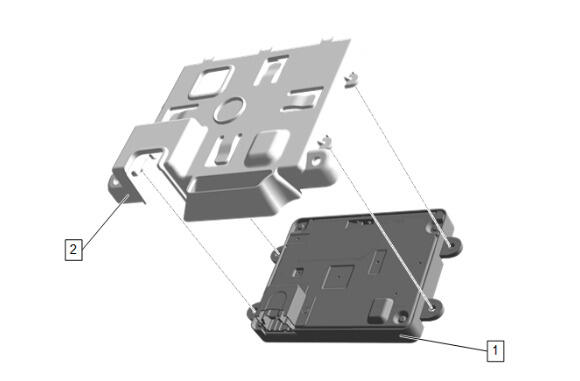

Separate the Wireless Charging System Module (1) and Wireless Charging System Module Bracket (2)
Use a flat bladed plastic trim tool.
Use a flat bladed plastic trim tool.
