Installation Procedure

  1. GM6385543Courtesy of GENERAL MOTORS COMPANY

    DC / AC Converter Control Module Asm (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Accessory AC and DC Power Control Module Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
  3. Connect the electrical connectors.

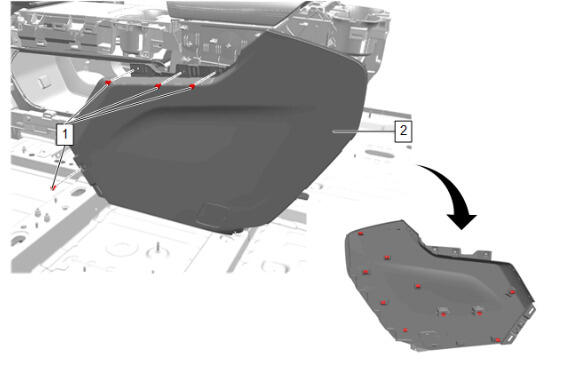

  4. GM6467033Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel- Left Side and Right Side (2) - Install [2x]

  5. Front Floor Rear Console Side Trim Panel Bolt- Left Side and Right Side (1) - Install and tighten [8x] - Fastener Specifications

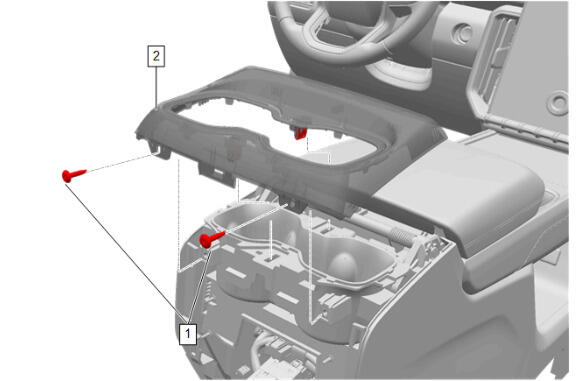

  6. GM6467035Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Trim Plate (2) - Install

  7. Front Floor Rear Console Trim Plate Bolt (1) - Install and tighten [2x] - Fastener Specifications

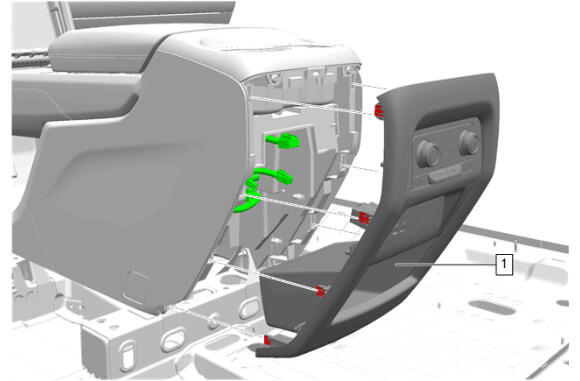

  8. GM6467021Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  9. Front Floor Console Rear Trim Panel (1) - Install

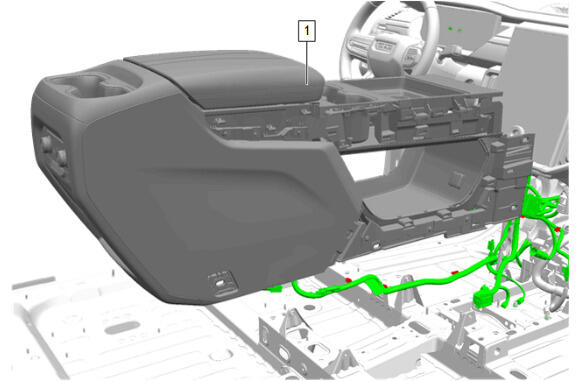

  10. GM6467024Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation
