Fastener Specifications

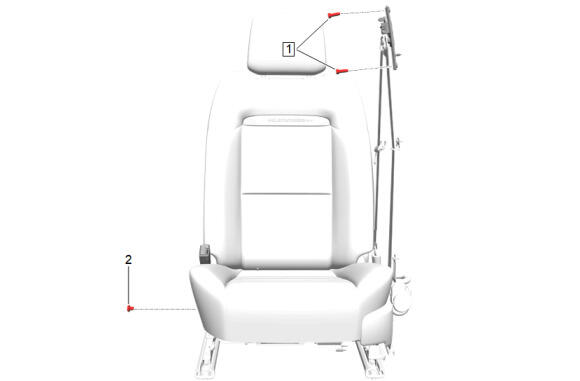

GM5816658Courtesy of GENERAL MOTORS COMPANY
Front Seat Belts - GQH, GQI, GQO, GQ2, GQB, GQC

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Adjust Bolt [2x] - Yes 45 N.m (33 lb ft) Front Seat Belt Guide Adjuster Replacement
2 Front Seat Belt Buckle Bolt - Yes 45 N.m (33 lb ft) Front Seat Belt Buckle Replacement
Fig 1: Identifying Rear Seat Belt Component Fasteners - GQH, GQI, GQO

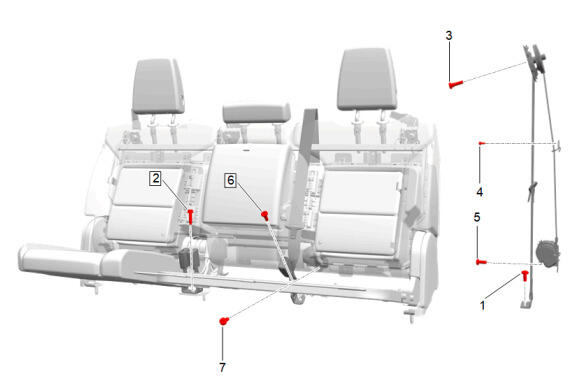

GM5819150Courtesy of GENERAL MOTORS COMPANY
Rear Seat Belts - GQH, GQI, GQO

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Belt Anchor Plate Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
2 Rear Seat Belt Buckle Bolt - Yes 45 N.m (33 lb ft) Rear Seat Belt Buckle Replacement (GQH / GQI / GQO)
3 Rear Seat Belt Guide Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
4 Rear Seat Belt Intermediate Guide Bolt - - 9 N.m (80 lb in) Rear Seat Belt Retractor Replacement
5 Rear Seat Belt Retractor Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
6 Rear Seat Belt Retractor Bolt @ Rear Seat Center Belt Retractor - - 45 N.m (33 lb ft) Rear Seat Back Cushion Removal and Installation (GQH / GQI / GQO)
7 Rear Seat Center Belt Retractor Bolt - - 45 N.m (33 lb ft) Rear Seat Center Belt Retractor Replacement (GQH / GQI / GQO)
Fig 2: Identifying Rear Seat Belt Component Fasteners - GQ2, GQB, GQC

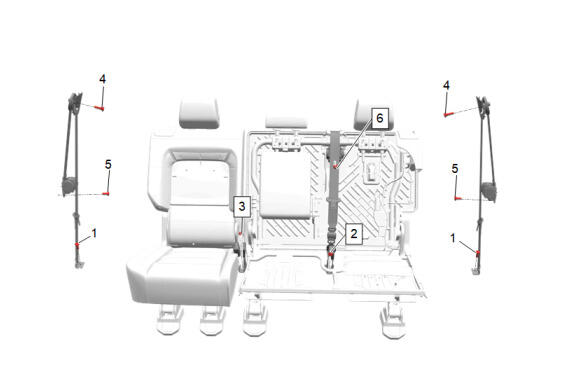

GM6151259Courtesy of GENERAL MOTORS COMPANY
Rear Seat Belts - GQ2, GQB, GQC

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Belt Anchor Plate Bolt [2x] - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
2 Rear Seat Belt Buckle Nut - Left Side [2x] - Yes 45 N.m (33 lb ft) Rear Seat Belt Buckle Replacement - Left Side (GQ2 / GQB / GQC)
3 Rear Seat Belt Buckle Nut - Right Side [2x] - Yes 45 N.m (33 lb ft) Rear Seat Belt Buckle Replacement - Right Side (GQ2 / GQB / GQC)
4 Rear Seat Belt Guide Bolt [2x] - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
5 Rear Seat Belt Retractor Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
6 Rear Seat Nut @ Rear Seat Center Belt Retractor - - 45 N.m (33 lb ft) Rear Seat Back Cover and Pad Removal and Installation - Left Side (GQ2 / GQB / GQC)
