Fastener Specifications

GM5910787Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Bolt (AXK)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Bolt [2x] - - 2.5 N.m (22 lb in) Air Suspension Control Module Replacement (AXK)

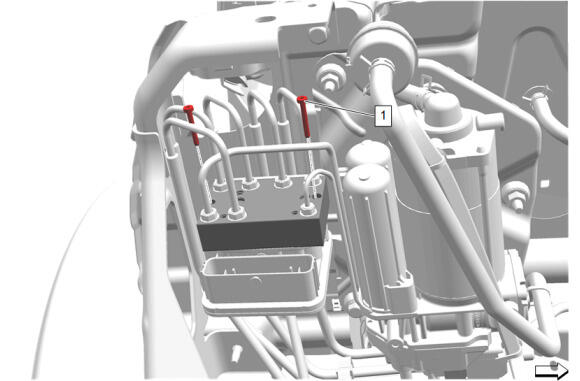

GM6162578Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Bolt (AXP)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Bolt [2x] - - 2.5 N.m (22 lb in) Air Suspension Control Module Replacement (AXP)

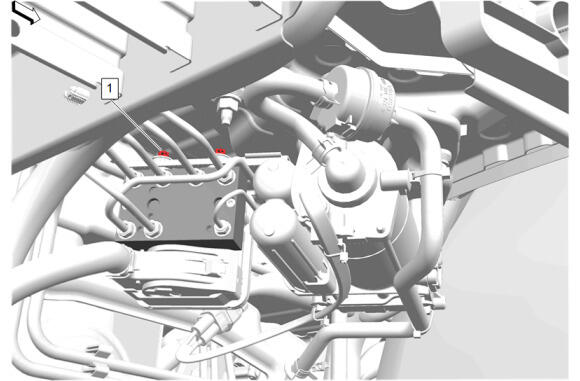

GM6051728Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Bolt Manifold To Bracket (AXK)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Bolt [2x] - - 5.65 N.m (50 lb in) Air Suspension Control Module Manifold Replacement (AXK)

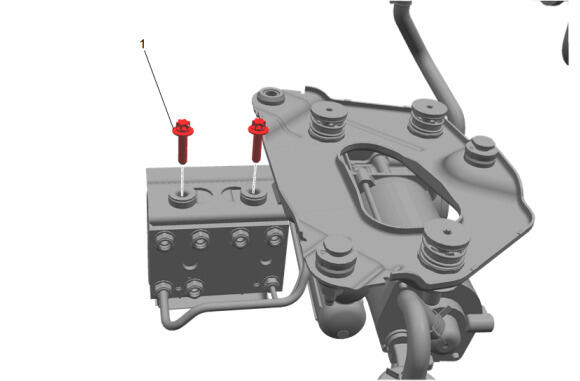

GM6162610Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Bolt Manifold To Bracket (AXP)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Bolt [2x] - - 5.65 N.m (50 lb in) Air Suspension Control Module Manifold Replacement (AXP)

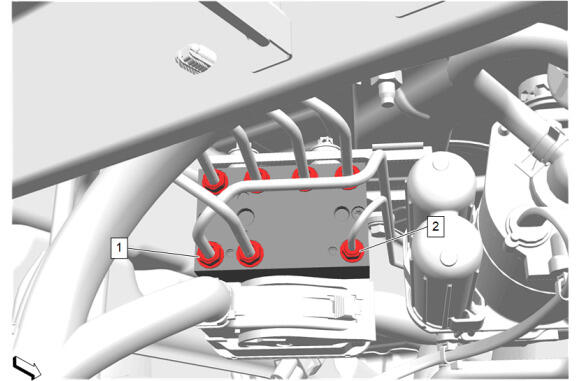

GM6051697Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Controller (AXK)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Tube Fitting- 6 MM
[6x]		 - - 5.5 N.m (49 lb in) Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Control Module Manifold (AXK)
2 Automatic Level Control Air Compressor Tube Fitting- 4 MM - - 5.5 N.m (49 lb in) Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Control Module Manifold (AXK)

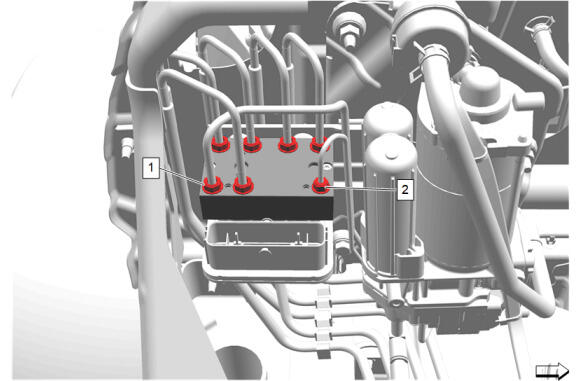

GM6162665Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Controller (AXP)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Tube Fitting- 6 MM
[6x]		 - - 5.5 N.m (49 lb in) Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Control Module Manifold (AXP)
2 Automatic Level Control Air Compressor Tube Fitting- 4 MM - - 5.5 N.m (49 lb in) Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Control Module Manifold (AXP)

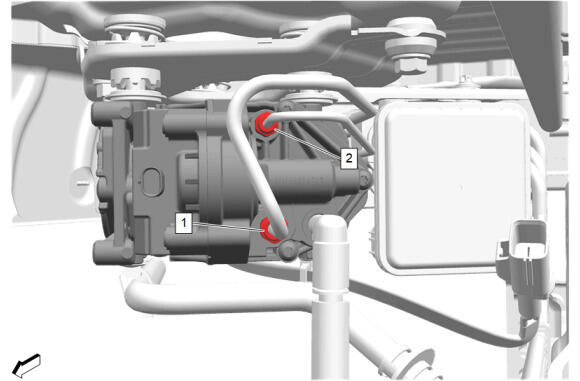

GM6051694Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Tube Fitting Replacement - Compressor (AXK)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Tube Fitting- 6 MM - - 3.5 N.m (31 lb in) Automatic Level Control Air Compressor Tube Replacement - Pressure (AXK)
2 Automatic Level Control Air Compressor Tube Fitting- 4 MM - - 2.25 N.m (20 lb in) Automatic Level Control Air Compressor Tube Replacement - Boost (AXK)

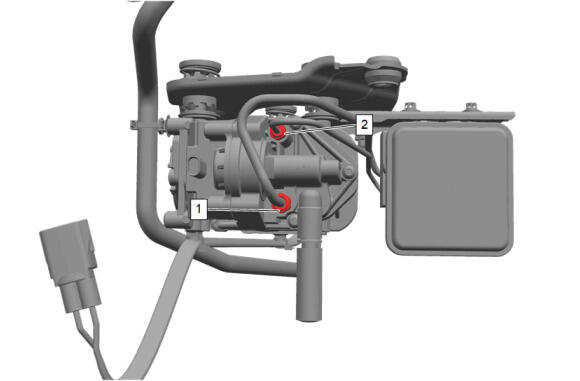

GM6162614Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Tube Fitting Replacement - Compressor (AXP)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Tube Fitting - 6 MM - - 3.5 N.m (31 lb in) Automatic Level Control Air Compressor Tube Replacement - Pressure (AXP)
2 Automatic Level Control Air Compressor Tube Fitting- 4 MM - - 2.25 N.m (20 lb in) Automatic Level Control Air Compressor Tube Replacement - Boost (AXP)

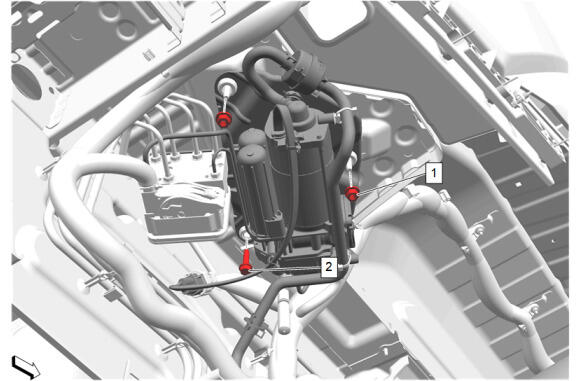

GM6074014Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Bolt And Automatic Level Control Air Compressor Nut (AXK)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Nut [2x] - - 22 N.m (16 lb ft) Automatic Level Control Module Replacement (AXK)
2 Automatic Level Control Air Compressor Bolt - - 22 N.m (16 lb ft) Automatic Level Control Module Replacement (AXK)

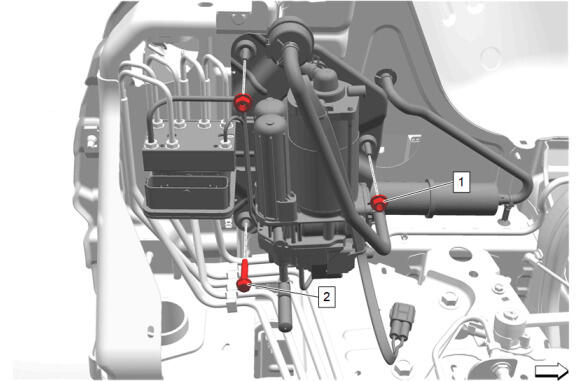

GM6162582Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Bolt And Automatic Level Control Air Compressor Nut (AXP)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Nut [2x] - - 22 N.m (16 lb ft) Automatic Level Control Module Replacement (AXP)
2 Automatic Level Control Air Compressor Bolt - - 22 N.m (16 lb ft) Automatic Level Control Module Replacement (AXP)
GM5910588Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Supply Reservoir (AXK)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Supply Reservoir Nut [4x] - - 22 N.m (16 lb ft) Automatic Level Control Air Supply Reservoir Replacement (AXK)
2 Automatic Level Control Air Supply Reservoir Coupling Cap - - 2 N.m (18 lb in) Automatic Level Control Air Supply Reservoir Coupling Replacement (AXK)
3 Automatic Level Control Air Supply Reservoir Coupling - - 10 N.m (7 lb ft) Automatic Level Control Air Supply Reservoir Coupling Replacement (AXK)
4 Automatic Level Control Air Compressor Tube Fitting - - 5.5 N.m (49 lb in) Automatic Level Control Air Supply Reservoir Replacement (AXK)

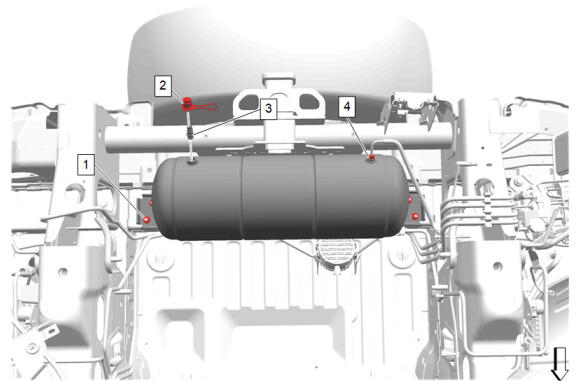

GM6162183Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Supply Reservoir (AXP)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Supply Reservoir Nut [4x] - - 22 N.m (16 lb ft) Automatic Level Control Air Supply Reservoir Replacement (AXP)
2 Automatic Level Control Air Supply Reservoir Coupling Cap - - 2 N.m (18 lb in) Automatic Level Control Air Supply Reservoir Coupling Replacement (AXP)
3 Automatic Level Control Air Supply Reservoir Coupling - - 10 N.m (7 lb ft) Automatic Level Control Air Supply Reservoir Coupling Replacement (AXP)
4 Automatic Level Control Air Compressor Tube Fitting - - 5.5 N.m (49 lb in) Automatic Level Control Air Supply Reservoir Replacement (AXP)
GM5910646Courtesy of GENERAL MOTORS COMPANY
Electronic Suspension Control Module Bracket Nut

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Suspension Control Module Bracket Nut [3x] - - 9 N.m (80 lb in) Suspension Control Module Replacement
GM5910790Courtesy of GENERAL MOTORS COMPANY
Front Suspension 4 Corner Leveling System Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Suspension 4 Corner Leveling System Position Sensor - - 9 N.m (80 lb in) Front Suspension 4 Corner Leveling System Position Sensor Replacement
GM5910791Courtesy of GENERAL MOTORS COMPANY
Rear Suspension 2 or 4 Corner Air Leveling Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension 2 or 4 Corner Air Leveling Position Sensor - - 9 N.m (80 lb in) Rear Suspension 2 or 4 Corner Air Leveling Position Sensor Replacement
GM5903239Courtesy of GENERAL MOTORS COMPANY
Ride Control Switch

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Ride Control Switch Bracket Bolt [4x] - - 2.5 N.m (22 lb in) Ride Control Switch Replacement (AXK) , or Ride Control Switch Replacement (AXP)
