Home >> GMC >> 2024 >> Sierra EV >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Repair Instructions >> Remote Function Actuator Module Replacement >> Removal Procedure

Removal Procedure

  1. Headlining Trim Panel - Remove - Headlining Trim Panel Removal and Installation

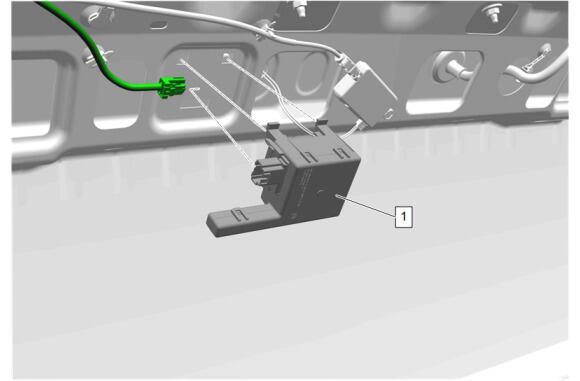

  2. GM6280426Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Disconnect the electrical connector.

  3. Release the retaining tab.
  4. Remote Function Actuator Module(1) - Remove
