Installation Procedure

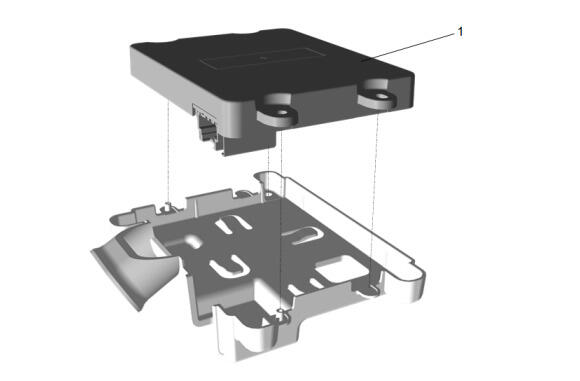

  1. GM6287015Courtesy of GENERAL MOTORS COMPANY

    Wireless Accessory Charging Module (1) - Install

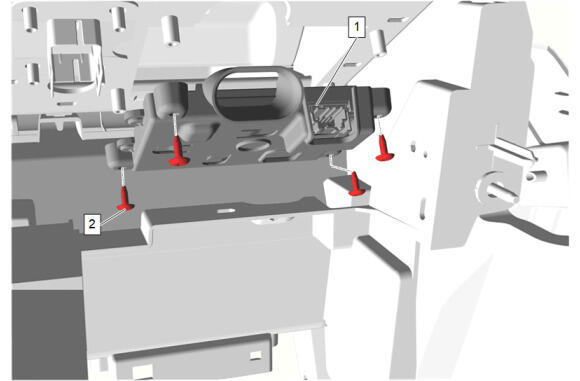

  2. GM6287014Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bracket (1) - Install

  3. Connect the electrical connector.
    4. CAUTION:

    Refer to Fastener Caution .

  4. Wireless Charging System Module Bracket bolt (2) - Install and tighten [4x] - Fastener Specifications
  5. Front Floor Console - Install - Front Floor Console Removal and Installation
