Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

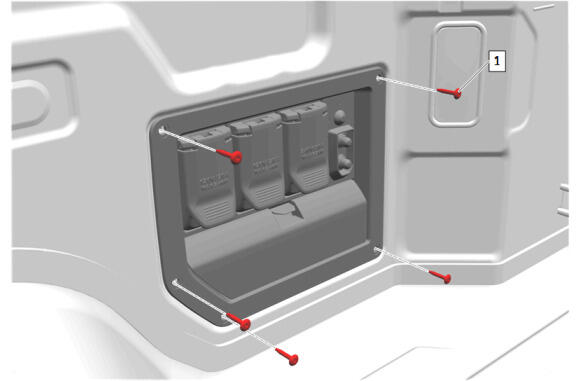

Front Trim Finish Compartment Liner Receptacle (KPB)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Accessory Power Receptacle Retainer Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Trim Finish Compartment Liner Receptacle Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

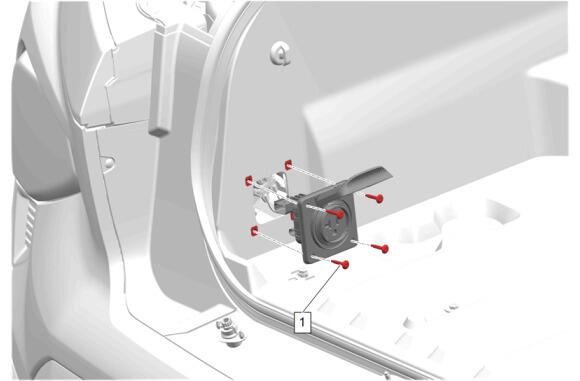

Pickup Box Inner Side Panel Receptacle Replacement (KV7)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Accessory Power Receptacle Retainer Bolt [5x] | - | - | 2.5 N.m (22 lb in) | Pickup Box Inner Side Panel Receptacle Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

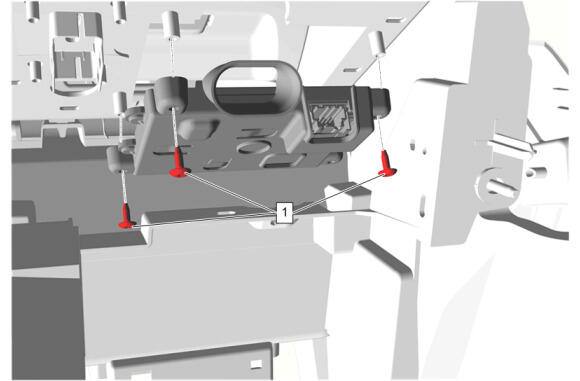

Wireless Accessory Charging Module (K4C)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Wireless Accessory Charging Module Bracket Bolt [4x] | - | - | 1.5 N.m (13 lb in) | Wireless Accessory Charging Module Replacement |
