Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Battery Charger (3) - Install

CAUTION:

Refer to Fastener Caution .

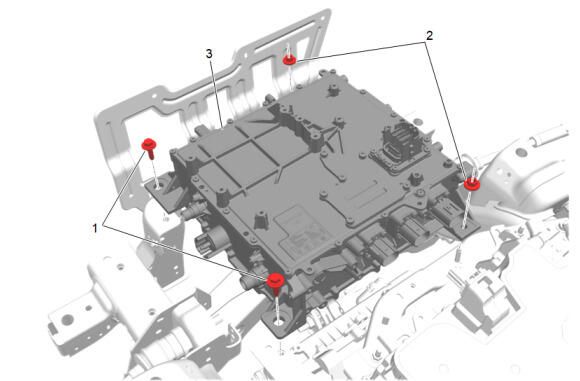

Drive Motor Power Distribution Control Module Nut (2) - Install and tighten [2x] - Fastener Specifications
Drive Motor Power Distribution Control Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

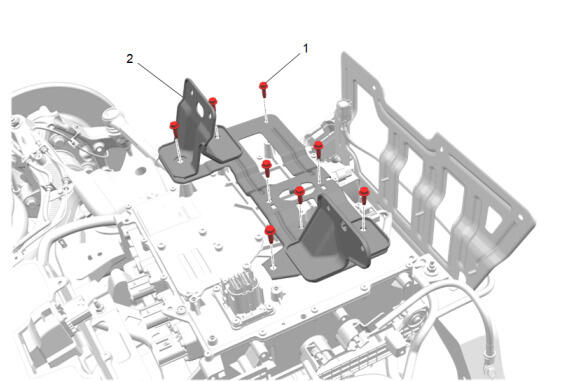

Drive Motor Battery Charger Bracket (2) - Install

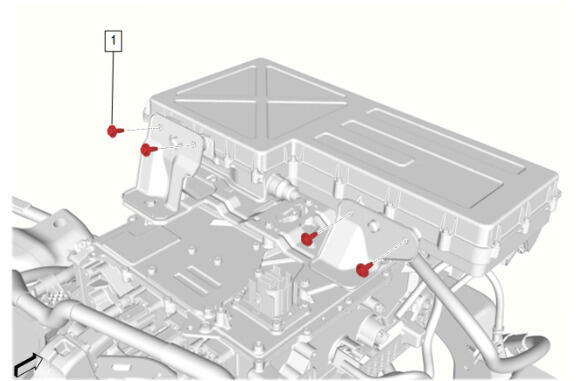

Drive Motor Battery Charger Bracket Bolt (1) - Install and tighten [8x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

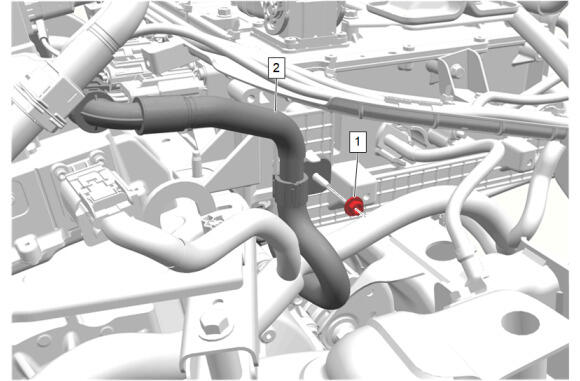

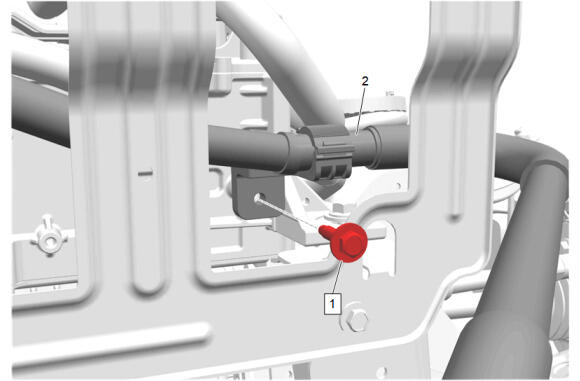

Drive Motor Battery Charger Inlet Hose Clip Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

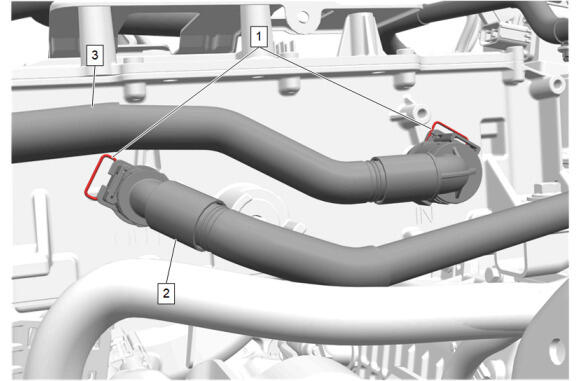

Drive Motor Power Distribution Control Module Hose (3) @Battery Charger - Install
Drive Motor Power Distribution Control Module Hose (2) - Install
Retainer (1) - Engage [2x]
Courtesy of GENERAL MOTORS COMPANY

Retainer (2) - Connect

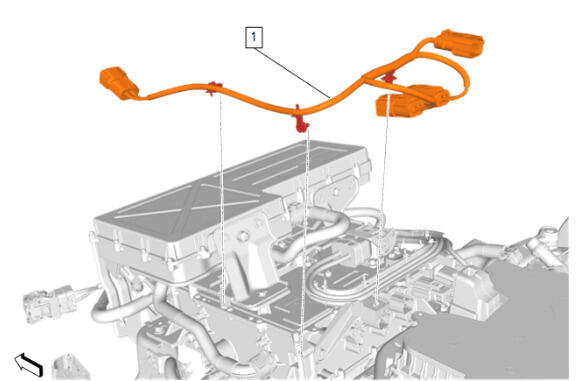

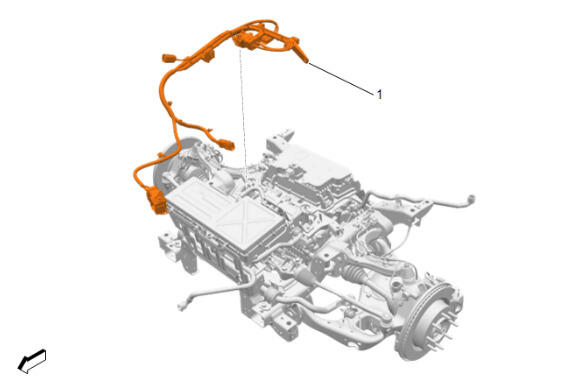

Chassis Rear Wiring Harness (1) @Battery Charger - Connect
Courtesy of GENERAL MOTORS COMPANY

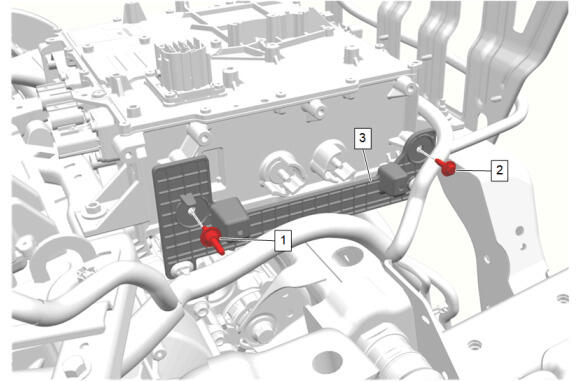

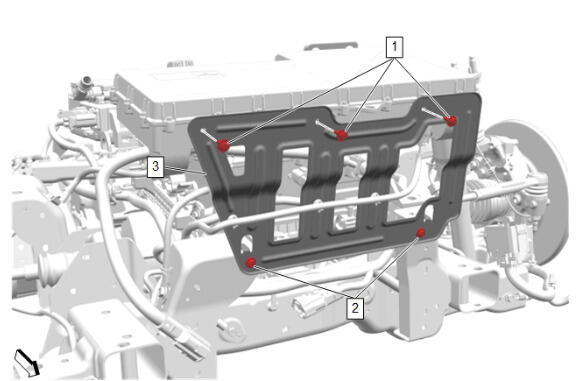

Chassis Rear Wiring Harness Bracket (3) - Install
Chassis Rear Wiring Harness Bracket Bolt (2) - Install and tighten - Fastener Specifications
Chassis Rear Wiring Harness Bracket Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

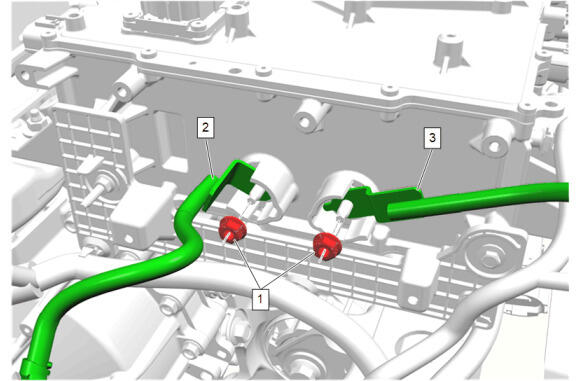

Rear Electric Drive Transmission Module Coolant Hose (2) - Install
High Voltage Battery Coolant Inlet Secondary Hose Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Starter Generator Positive Extension Cable (3) - Install
Starter Generator Negative Ground Cable (2) - Install
Power Line Communication Module Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Battery Positive and Negative Cable (3) - Install
Auxiliary Battery Positive Cable Nut (2) - Install and tighten - Fastener Specifications
Retainer (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

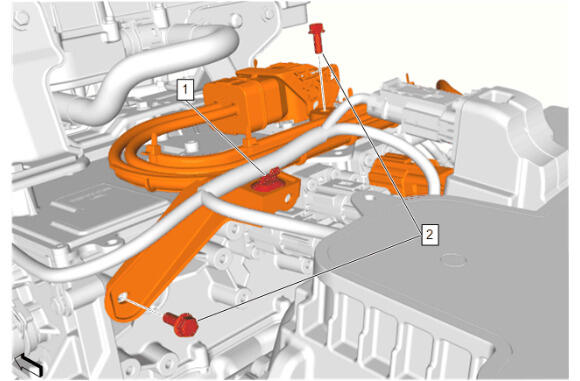

Drive Motor Power Distribution Control Module Positive and Negative Cable (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Power Distribution Control Module Positive and Negative Cable Channel Bolt (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Power Distribution Control Module Positive and Negative Cable Channel Bolt (3) - Install and tighten - Fastener Specifications

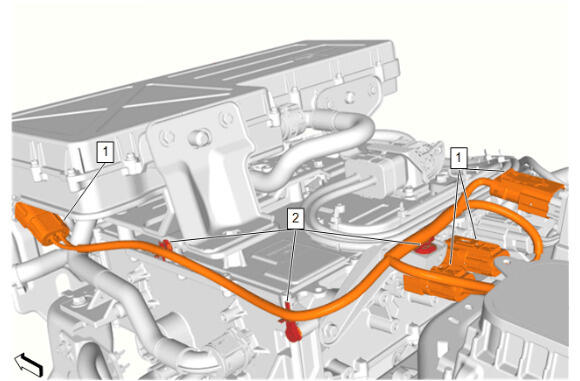

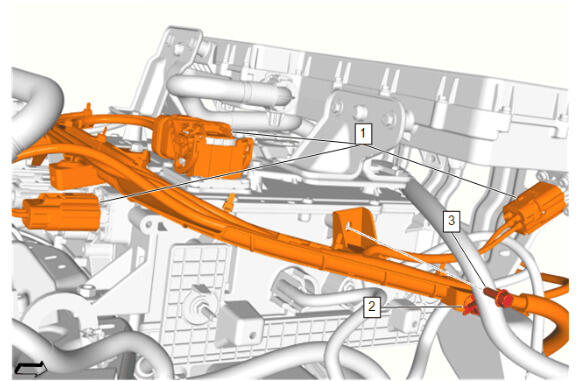

Connect the high voltage electrical connector and install the wiring harness retainers as necessary. (1, 2) High Voltage Connectors
Courtesy of GENERAL MOTORS COMPANY

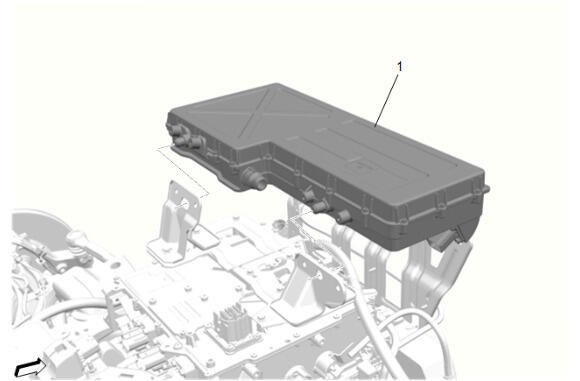

Battery Charger (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Battery Charger Bracket (3) - Install
Drive Motor Battery Charger Ground Bolt (2) - Tighten [2x] - Fastener Specifications
Drive Motor Battery Charger Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Battery Charger Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the high voltage electrical connector. (3) High Voltage Connectors

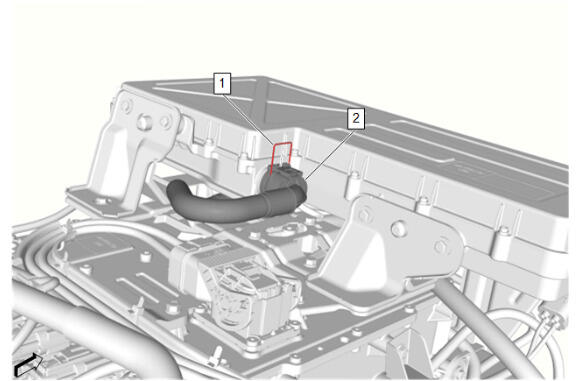

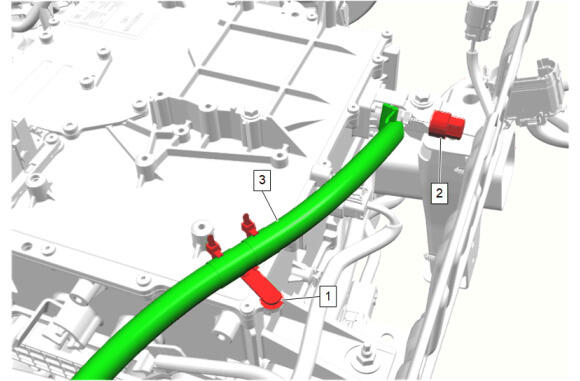

Drive Motor Battery Charger Inlet Hose (2) @Battery Charger - Connect
Retainer (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

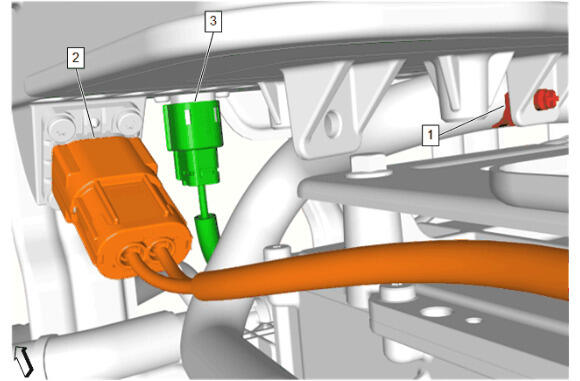

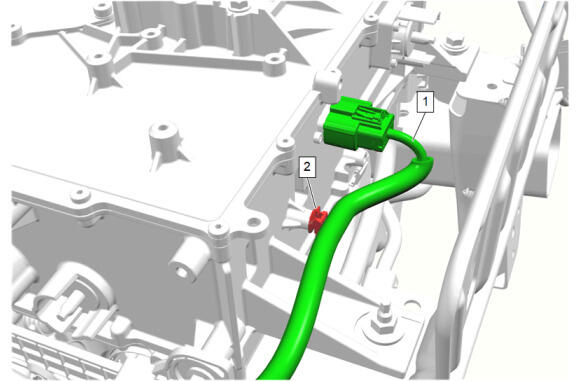

Connect the electrical connector. (3)
Connect the high voltage electrical connector. (2) High Voltage Connectors

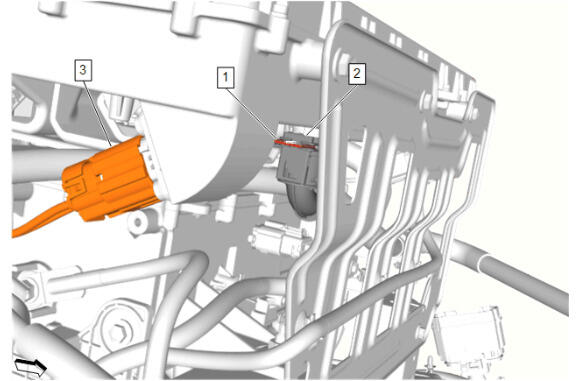

Retainer (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Power Distribution Control Module Hose (2) @Battery Charger - Connect
Retainer (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

High Voltage Battery Negative Cable (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the high voltage electrical connector and install the wiring harness retainers as necessary. (1, 2) High Voltage Connectors
Rear Suspension Cradle - Install - Rear Suspension Cradle Removal and Installation
