Installation Procedure
Pedestrian Sound Alert Module (1) - Install
Secure the retaining tabs on the pedestrian sound alert module (1).
Connect the electrical connector (2) to the pedestrian sound alert module (1).
Cargo Container Mat- Front (1) - Install
- CAUTION:
Refer to Fastener Caution .
Rear Auxiliary Stowage Box Rivet Nut (2) - Install and tighten - Fastener Specifications
- Cargo Partition Track Bolt (1) - Install and tighten [7x] - Fastener Specifications
Rear Seat Latch Release Strap Bezel (1) - Install
Fold the left and right rear seat back cushions (1) down.
Cargo Container Mat - Left Rear (1) - Install
Cargo Partition Track Bolt (1) - Install and tighten [4x] - Fastener Specifications
Rear Seat Track Rear Outboard Cover - Left Side and Right Side (2) - Install [2x]
- Rear Seat Bolt - Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications
Fold the left and right rear seat back cushions (1) up and into the locked position.
Rear Seat Recliner Outer Finish Cover - Right Side (2) - Install
- Rear Seat Bolt - Right Side (1) - Install and tighten [2x] - Fastener Specifications
Rear Seat Inner Hinge Finish Cover (2) - Install
- Rear Seat Bolt (1) - Install and tighten [3x] - Fastener Specifications
Rear Seat Recliner Outer Finish Cover - Left Side (2) - Install
- Rear Seat Bolt - Left Side (1) - Install and tighten [2x] - Fastener Specifications

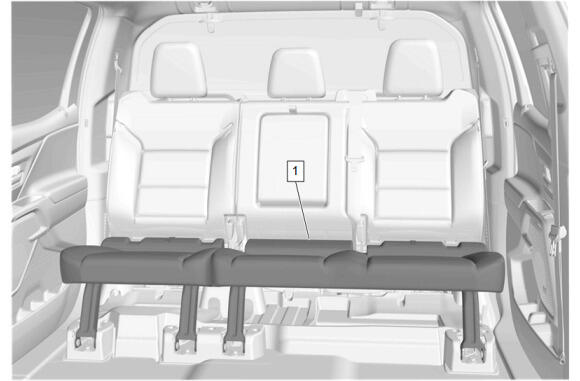

Fold the left and right rear seat cushions (1) Down and into the locked position.
- Perform the necessary programming and setup procedure: Control Module References
