Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

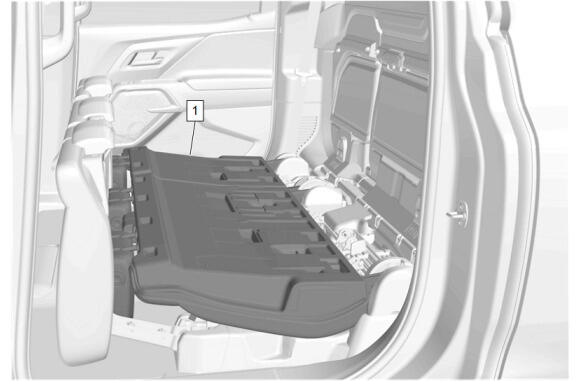

Fold the left and right rear seat cushions (1) up.
Courtesy of GENERAL MOTORS COMPANY

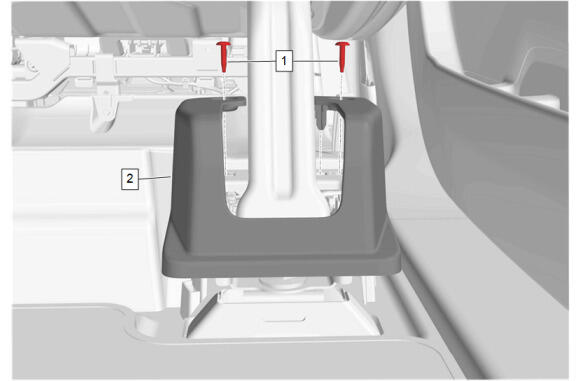

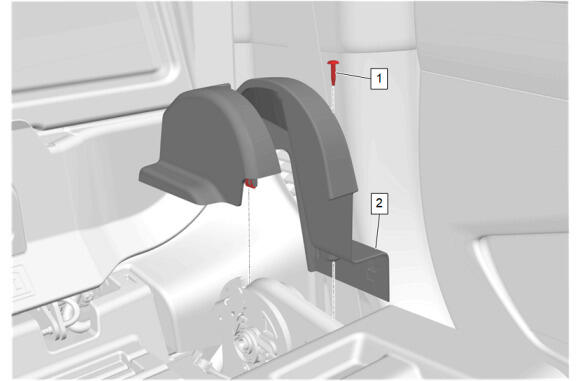

Rear Seat Bolt - Left Side (1) - Remove [2x]
Rear Seat Recliner Outer Finish Cover - Left Side (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

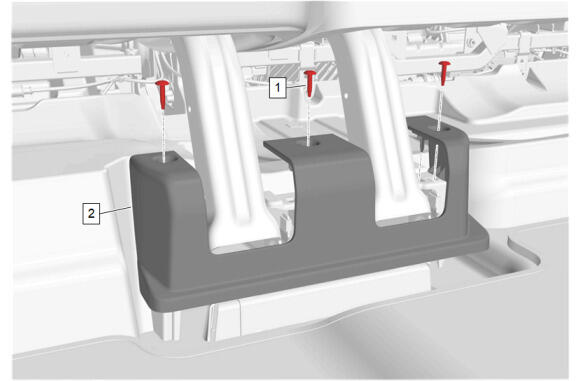

Rear Seat Bolt (1) - Remove [3x]
Rear Seat Inner Hinge Finish Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Seat Bolt - Right Side (1) - Remove [2x]
Rear Seat Recliner Outer Finish Cover - Right Side (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

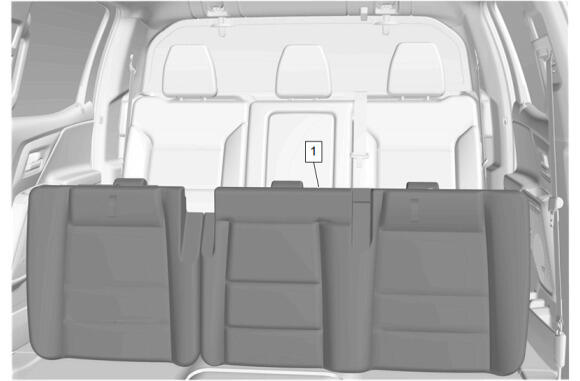

Fold the left and right rear seat back cushions (1) down.
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Bolt - Left Side and Right Side (1) - Remove [2x]
Rear Seat Track Rear Outboard Cover - Left Side and Right Side (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

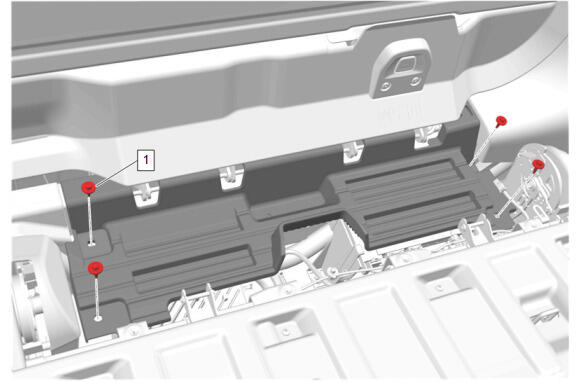

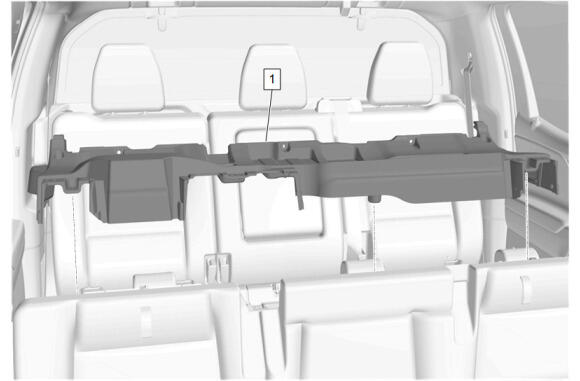

Cargo Partition Track Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

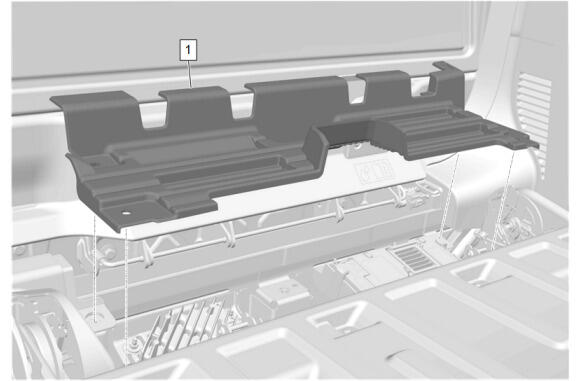

Cargo Container Mat - Left Rear (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Fold the left and right rear seat back cushions (1) up and into the locked position.
Courtesy of GENERAL MOTORS COMPANY

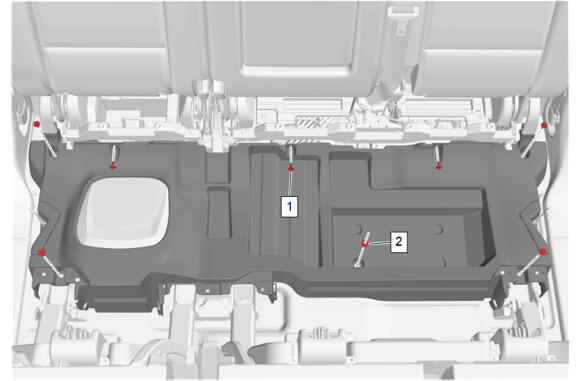

Cargo Partition Track Bolt (1) - Remove [7x]
Rear Auxiliary Stowage Box Rivet Nut (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

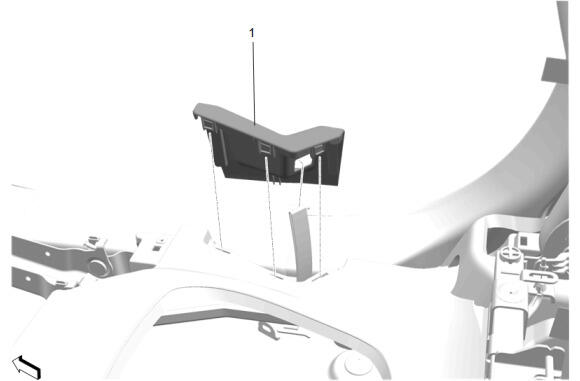

Rear Seat Latch Release Strap Bezel (1) - Left Side and Right Side - Remove [2X]

Courtesy of GENERAL MOTORS COMPANY

Cargo Container Mat- Front (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

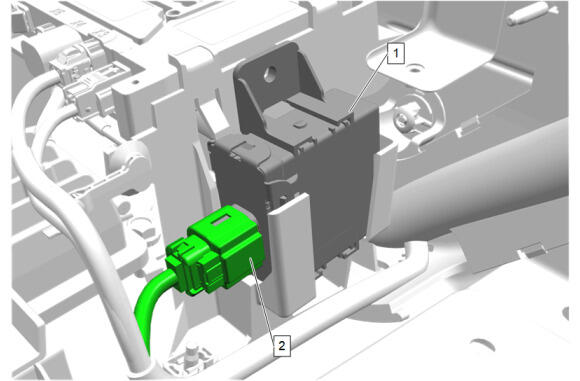

Disconnect the electrical connector (2) from the pedestrian sound alert module (1).
Courtesy of GENERAL MOTORS COMPANY

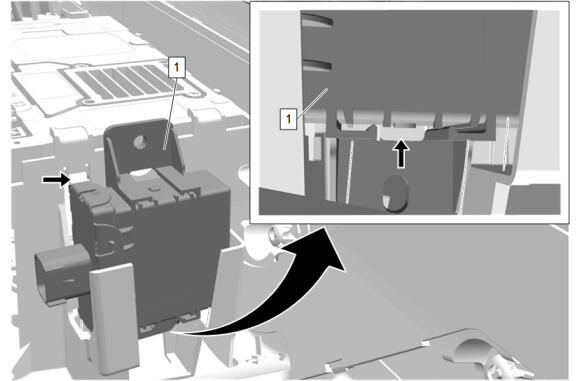

Using a flat-bladed plastic trim tool, release the top retaining tab from the pedestrian sound alert module (1).
Slightly lift the pedestrian sound alert module (1) and using a flat-bladed plastic trim tool, release the bottom retaining tab.
Courtesy of GENERAL MOTORS COMPANY

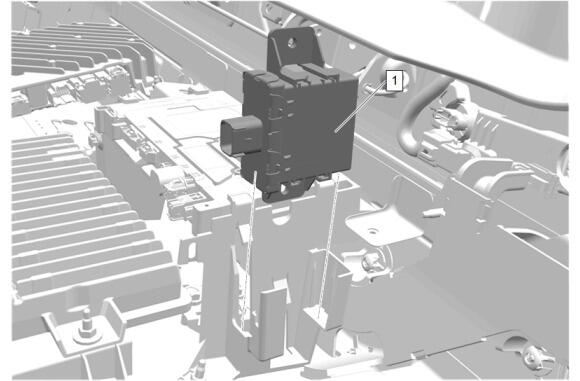

Pedestrian Sound Alert Module (1) - Remove
