Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

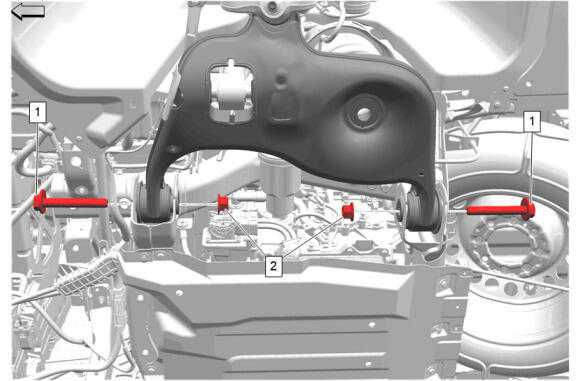

Rear Axle Lower Control Arm Nut and Rear Suspension Lower Control Arm Adjuster Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Suspension Lower Control Arm Adjuster Bolt [2x] | - | - | - | Rear Suspension Lower Control Arm Replacement |
| 2 | Rear Axle Lower Control Arm Nut [2x] | - | - | 500 N.m (369 lb ft) | Rear Caster and Camber Adjustment |
NOTE:
Callout items in the following chart represent components shown in graphic above.

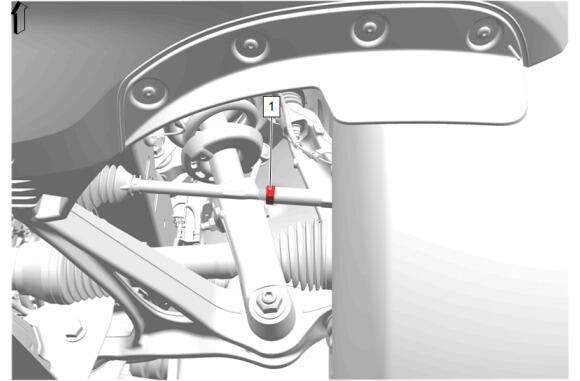

Rear Wheel Steering Linkage Outer Tie Rod Adjust Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Wheel Steering Linkage Outer Tie Rod Adjust Nut | - | - | 100 N.m (74 lb ft) | Rear Toe Adjustment |
NOTE:
Callout items in the following chart represent components shown in graphic above.

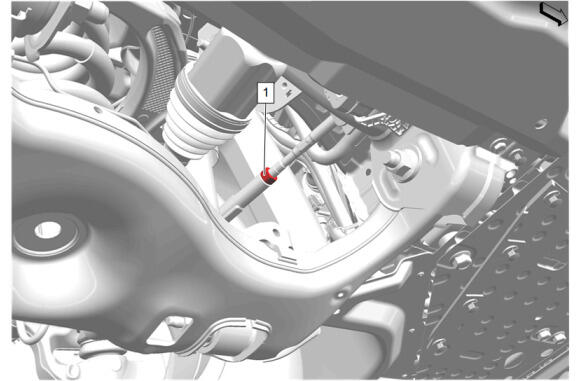

Steering Linkage Tie Rod Adjuster Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Linkage Tie Rod Adjuster Nut | - | - | 100 N.m (74 lb ft) | Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment |
