Components Location

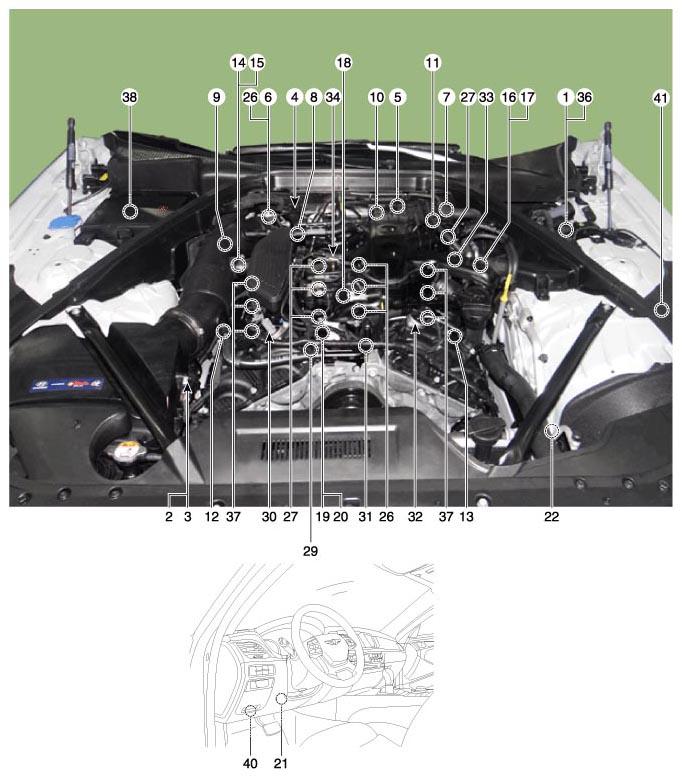

G11354969Courtesy of

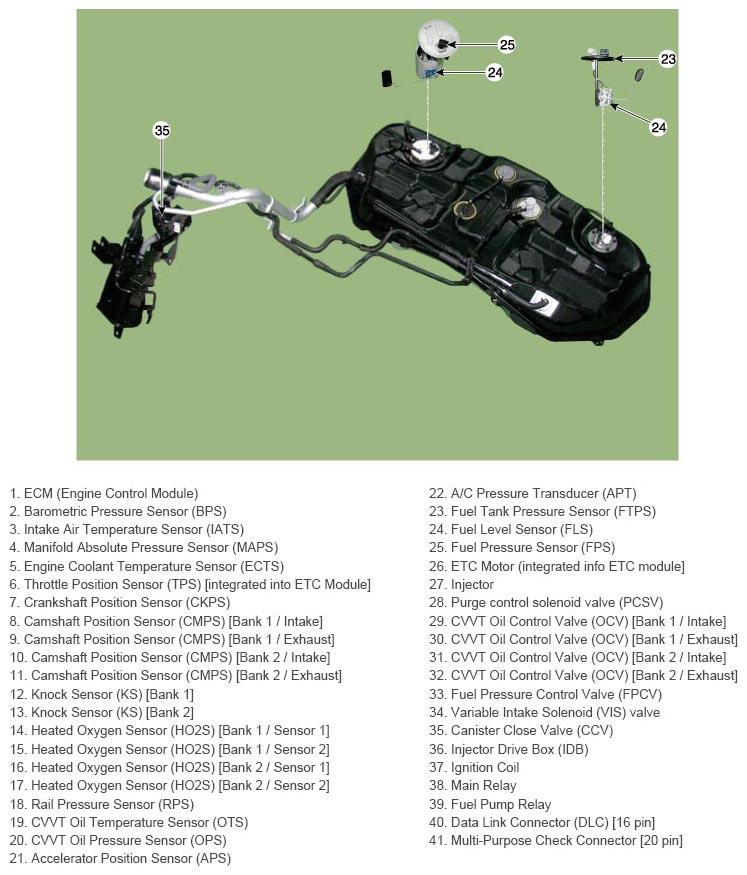

G11354970Courtesy of

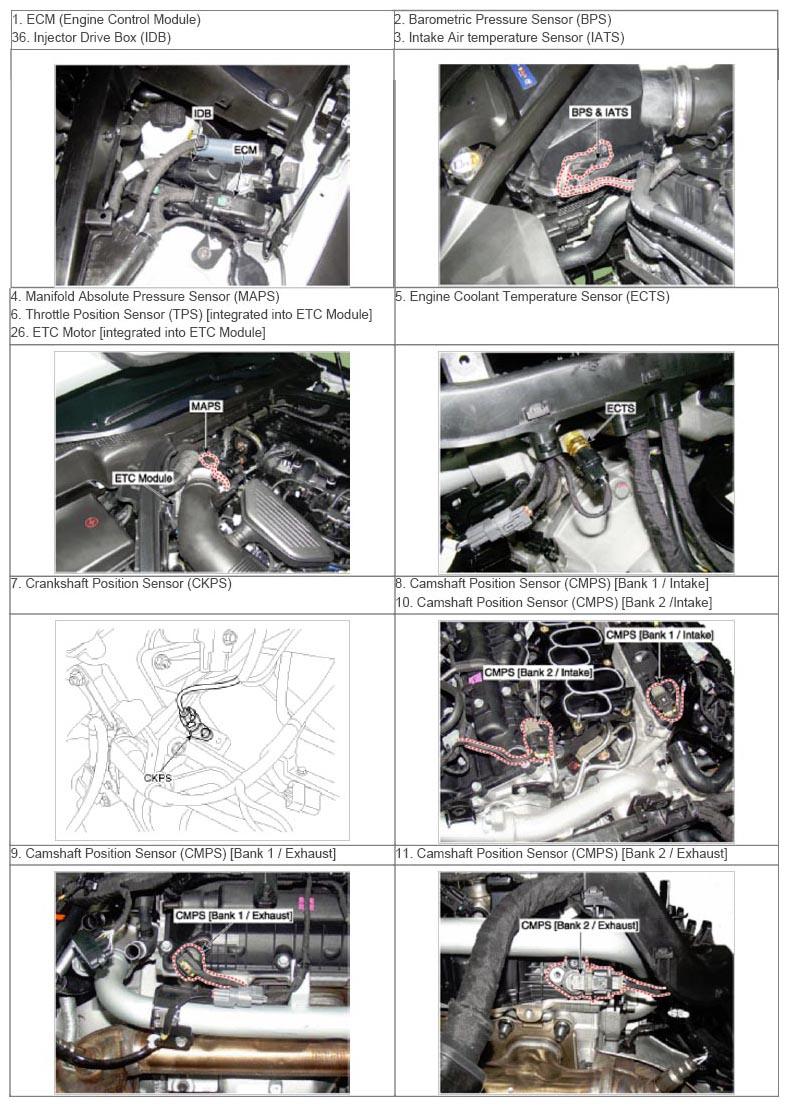

G11354971Courtesy of

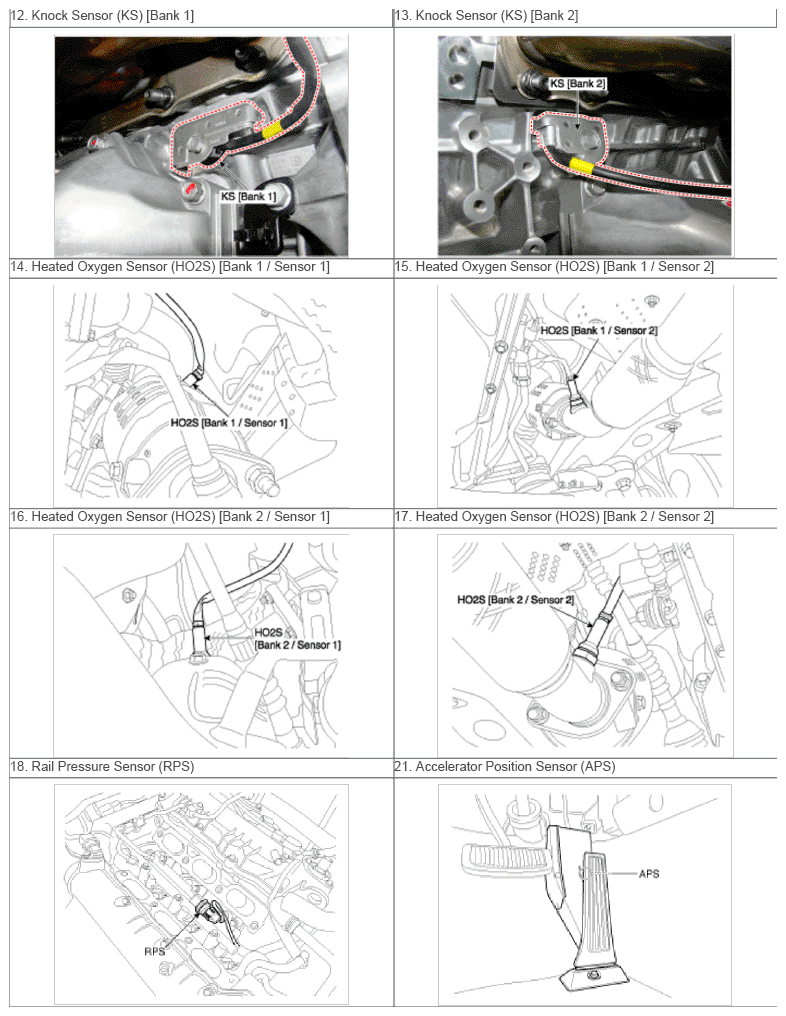

G11354972Courtesy of

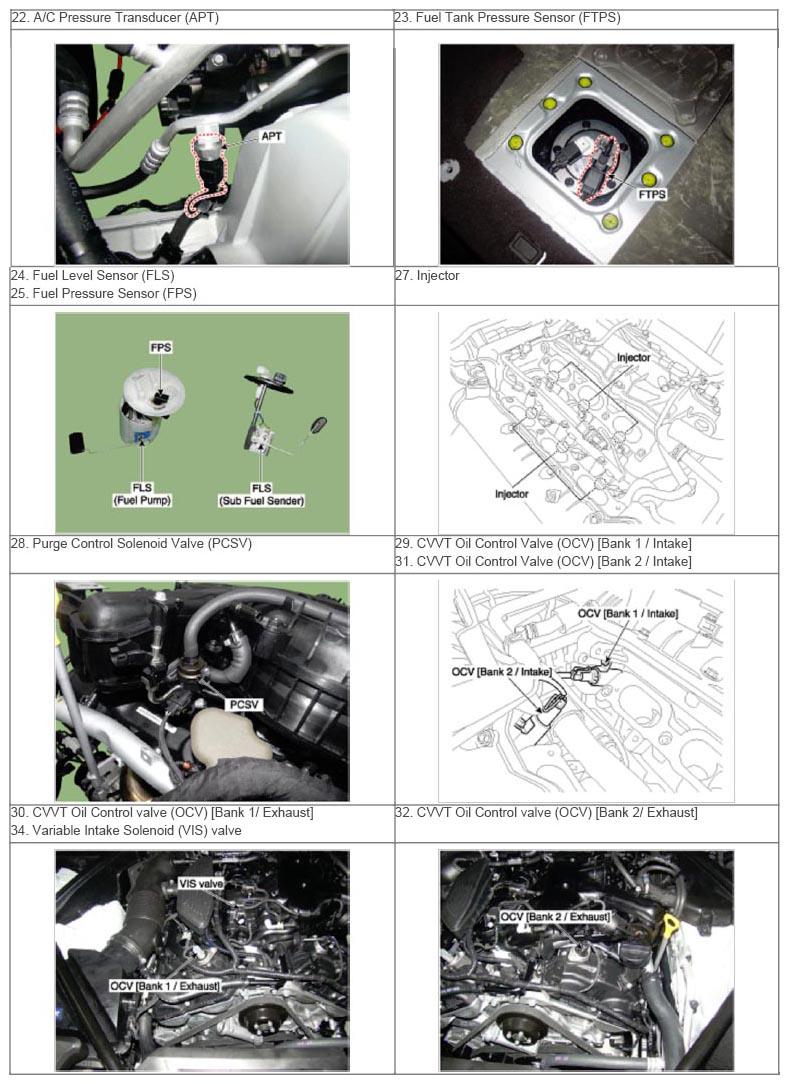

G11354973Courtesy of

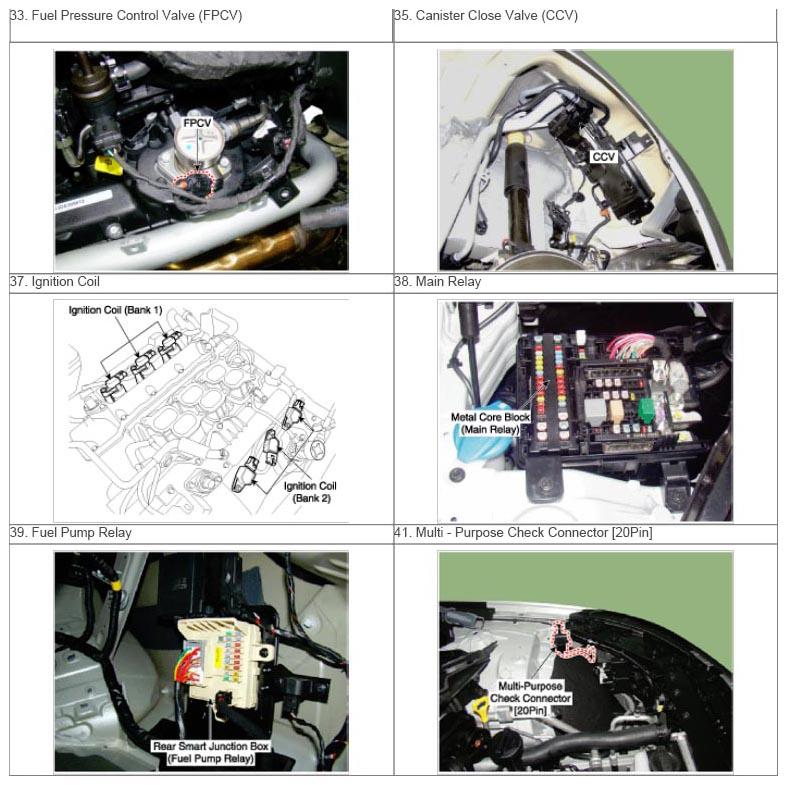

G11354974Courtesy of
