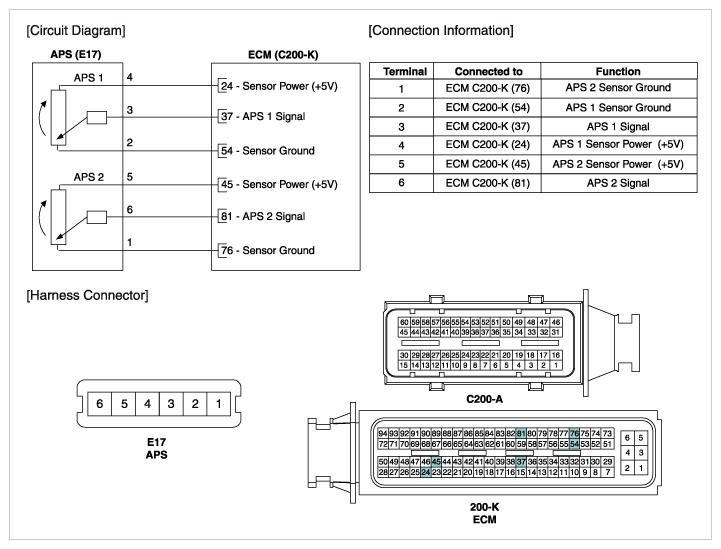

Home >> Genesis >> 2017 >> G80 5.0 Ultimate >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 5.0L >> Accelerator Position Sensor >> Schematic Diagram >> Circuit Diagram
