Components Location

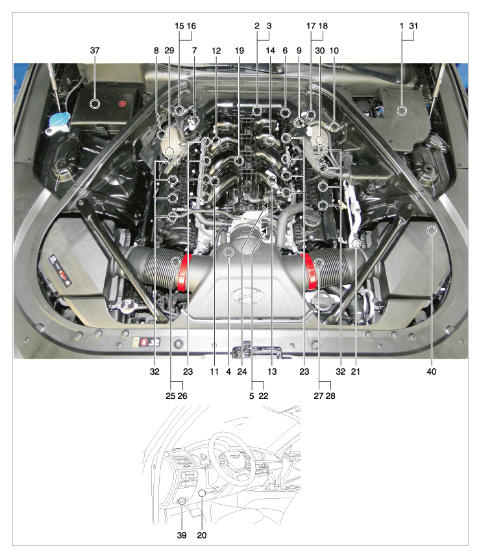

G11336601Courtesy of

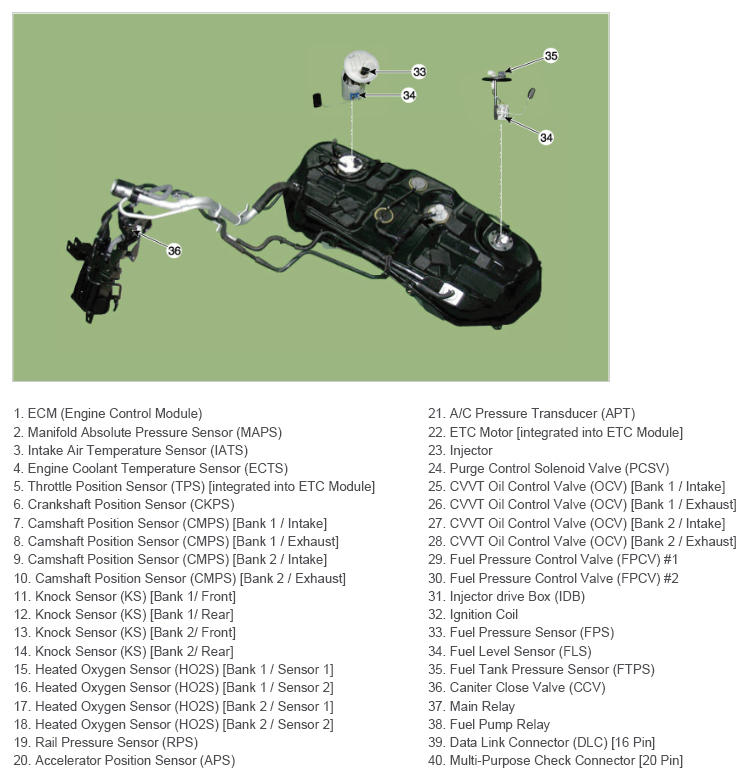

G11336602Courtesy of

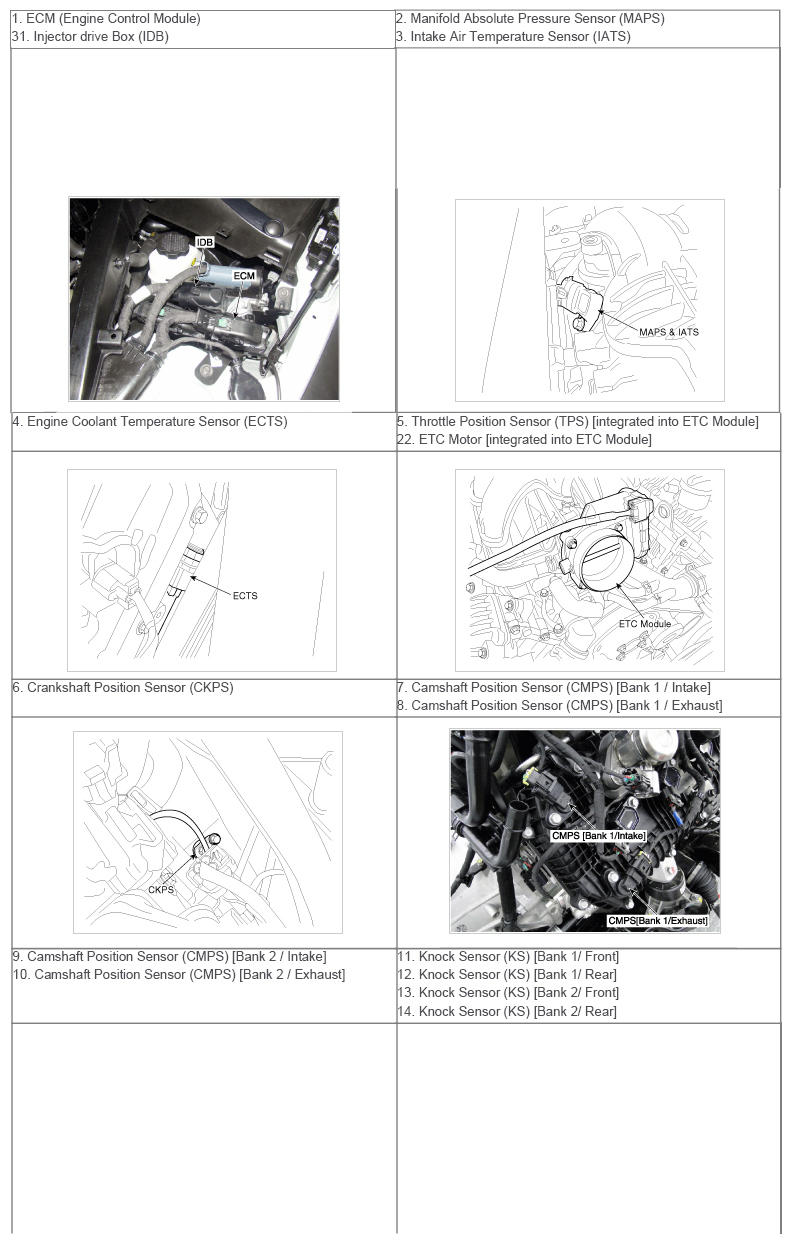

G11336603Courtesy of

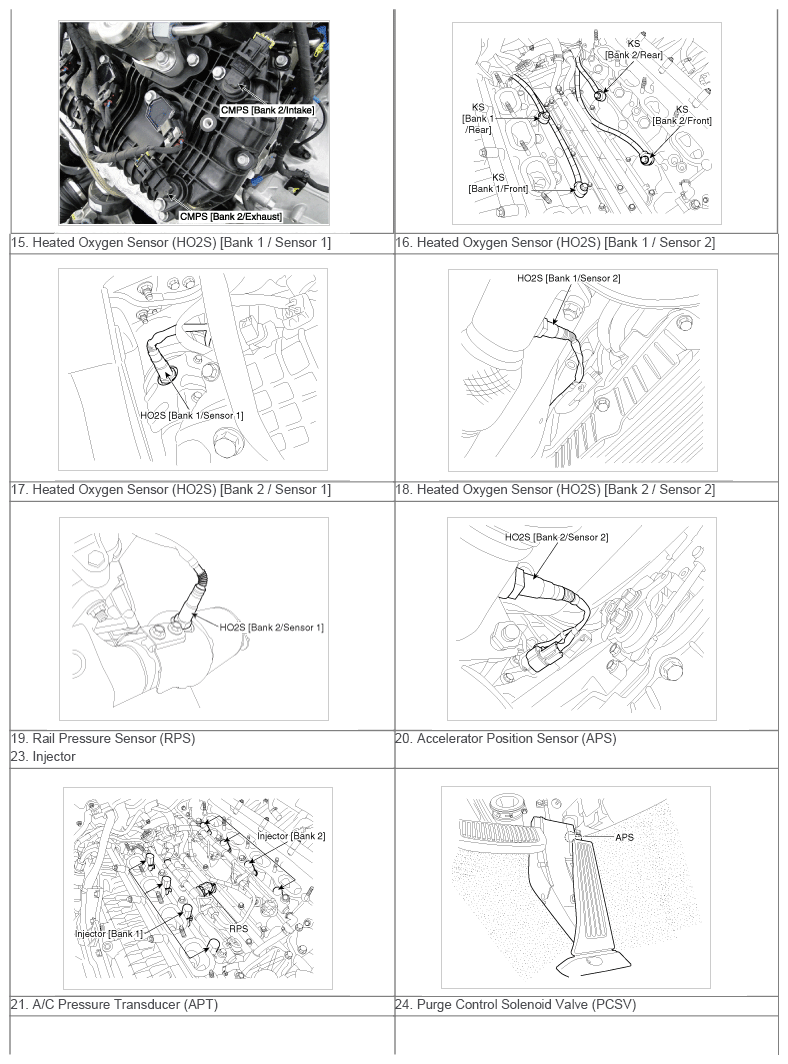

G11336604Courtesy of

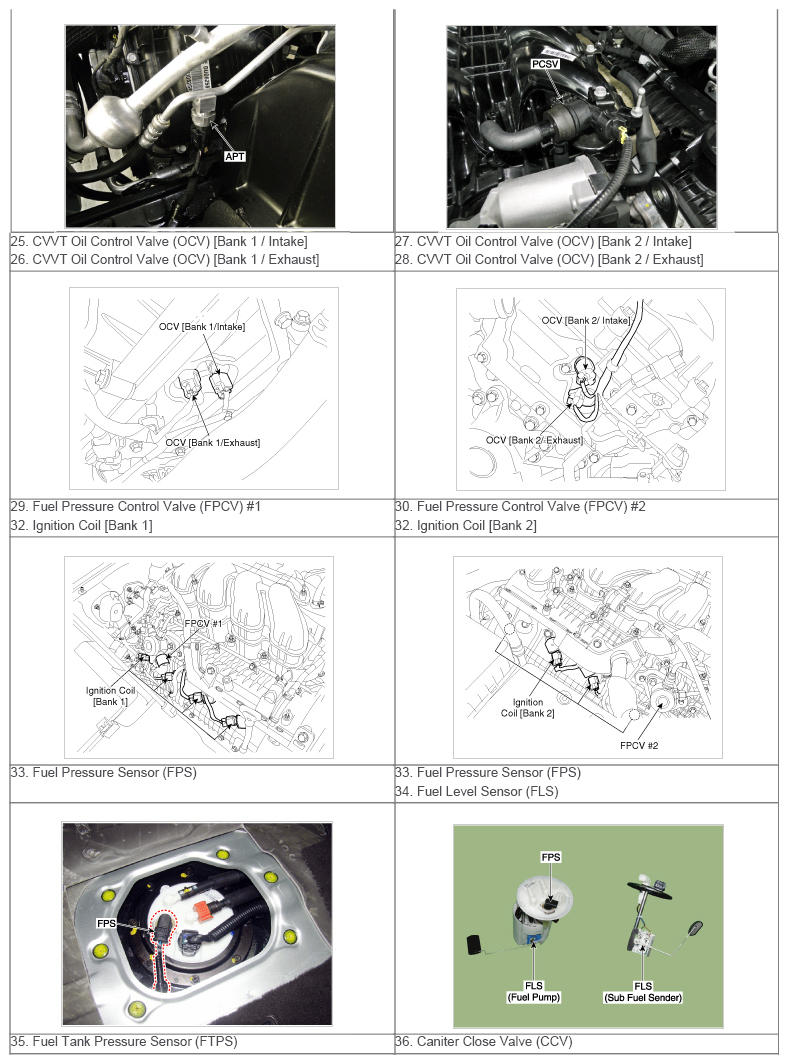

G11336605Courtesy of

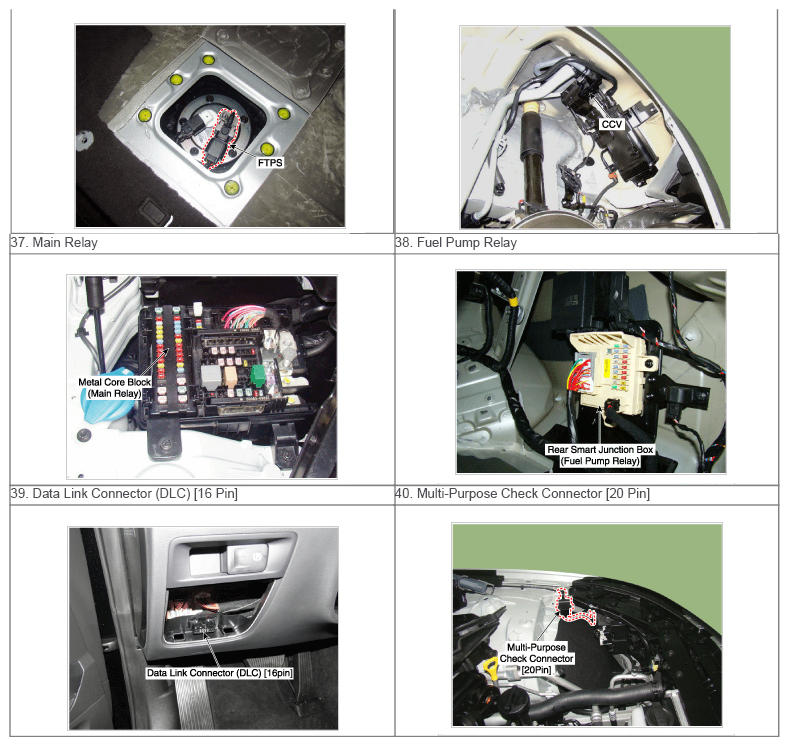

G11336606Courtesy of
