Home >> Genesis >> 2017 >> G80 5.0 Ultimate >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Control System >> Shift Lever >> Components and Components Location >> Components

Components and Components Location: Components

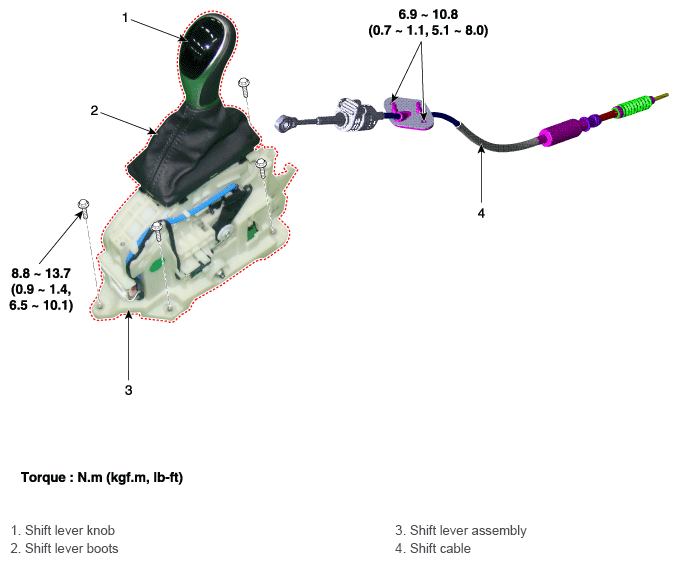

Fig 1: Shift Lever Components Location With Torque Specifications

G11340536

Courtesy of HYUNDAI MOTOR AMERICA
