Components Location

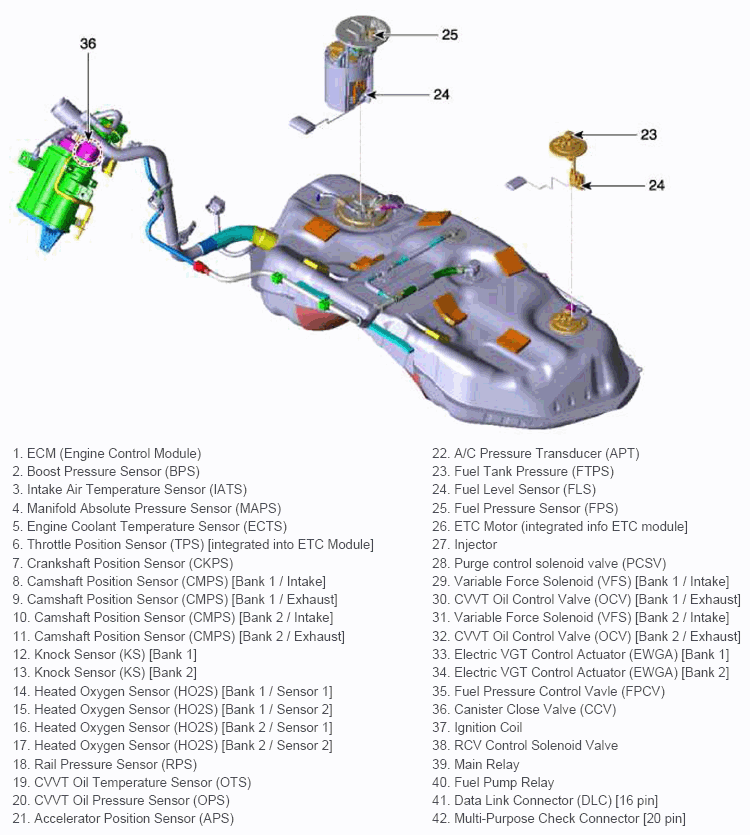

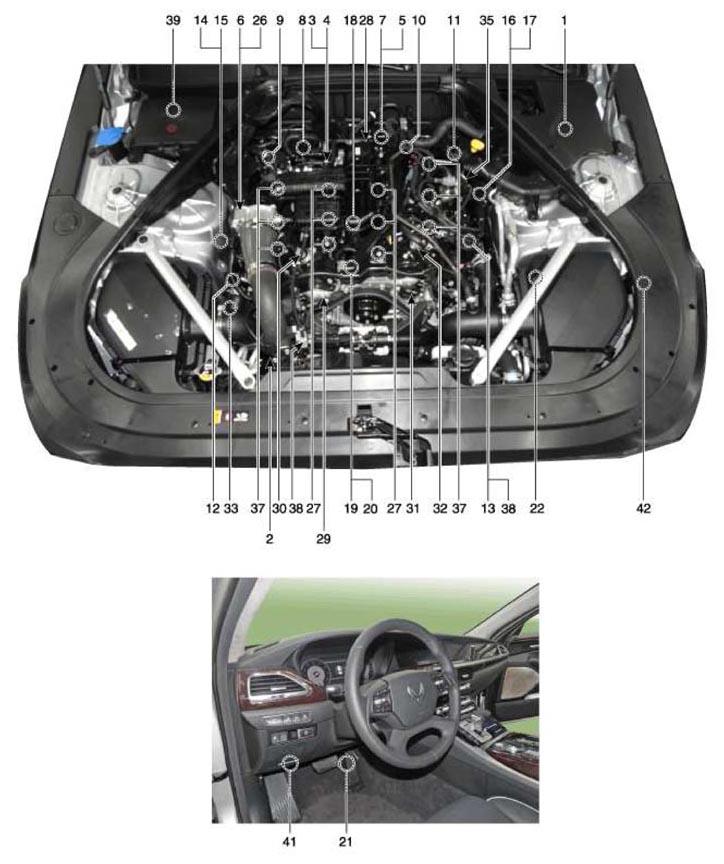

Fig 1: Engine Control System Related Components (1 Of 8)

Courtesy of HYUNDAI MOTOR AMERICA

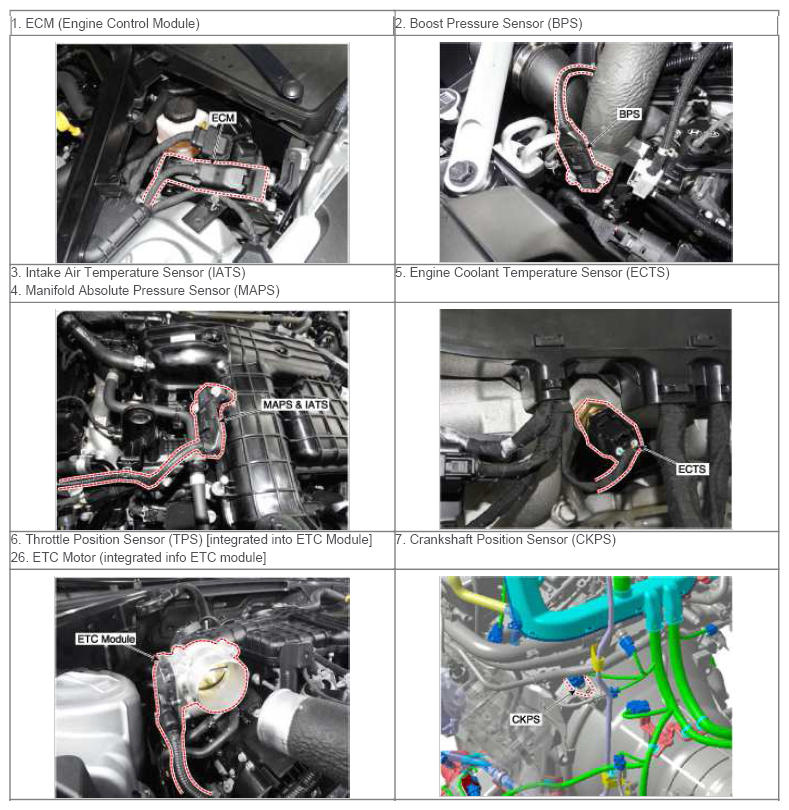

Fig 2: Engine Control System Related Components (2 Of 8)

Courtesy of HYUNDAI MOTOR AMERICA

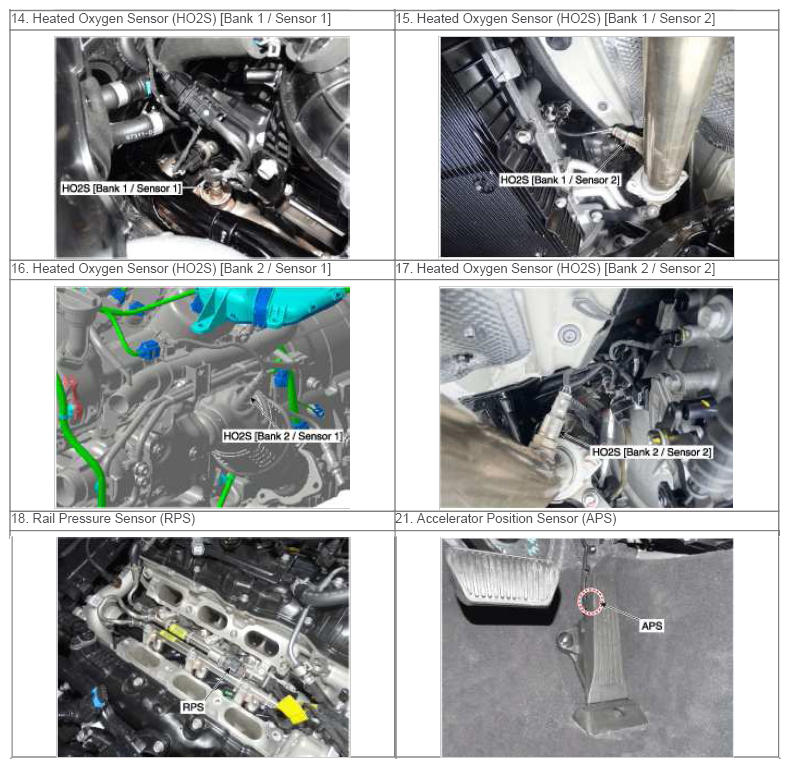

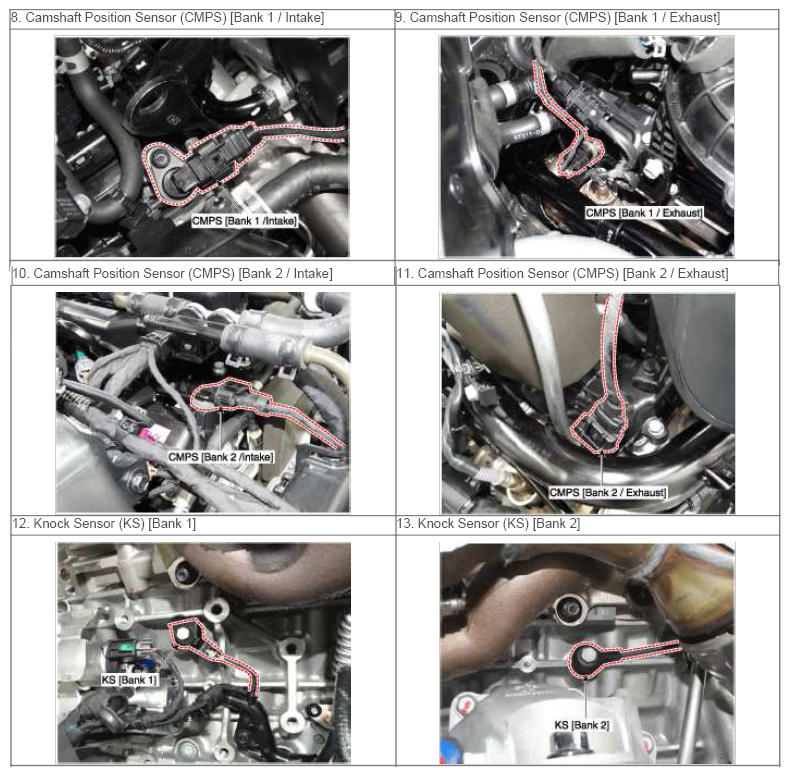

Fig 3: Engine Control System Related Components (3 Of 8)

Courtesy of HYUNDAI MOTOR AMERICA

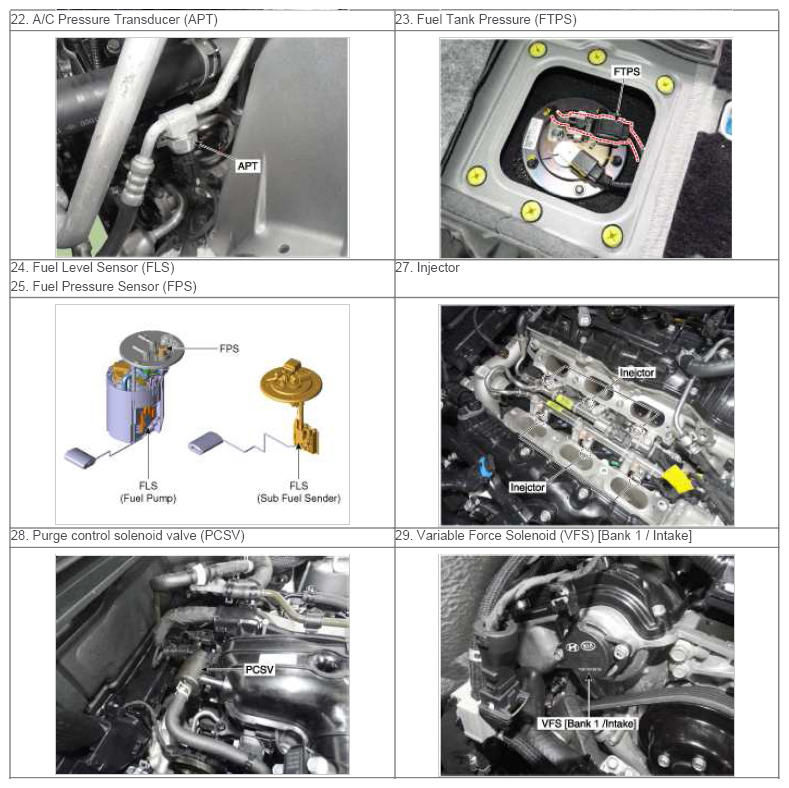

Fig 4: Engine Control System Related Components (4 Of 8)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Engine Control System Related Components (5 Of 8)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Engine Control System Related Components (6 Of 8)

Courtesy of HYUNDAI MOTOR AMERICA

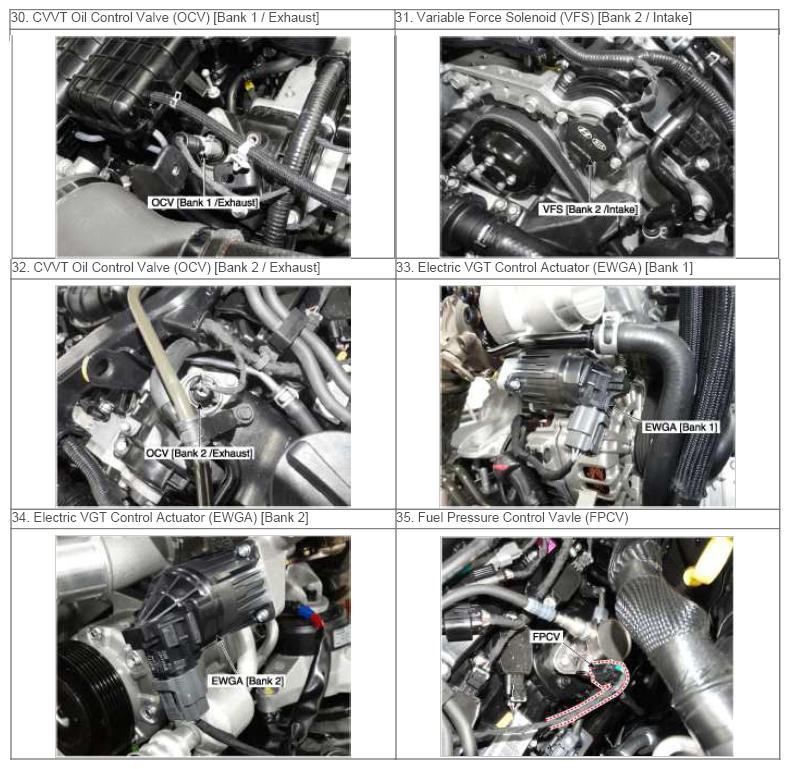

Fig 7: Engine Control System Related Components (7 Of 8)

Courtesy of HYUNDAI MOTOR AMERICA

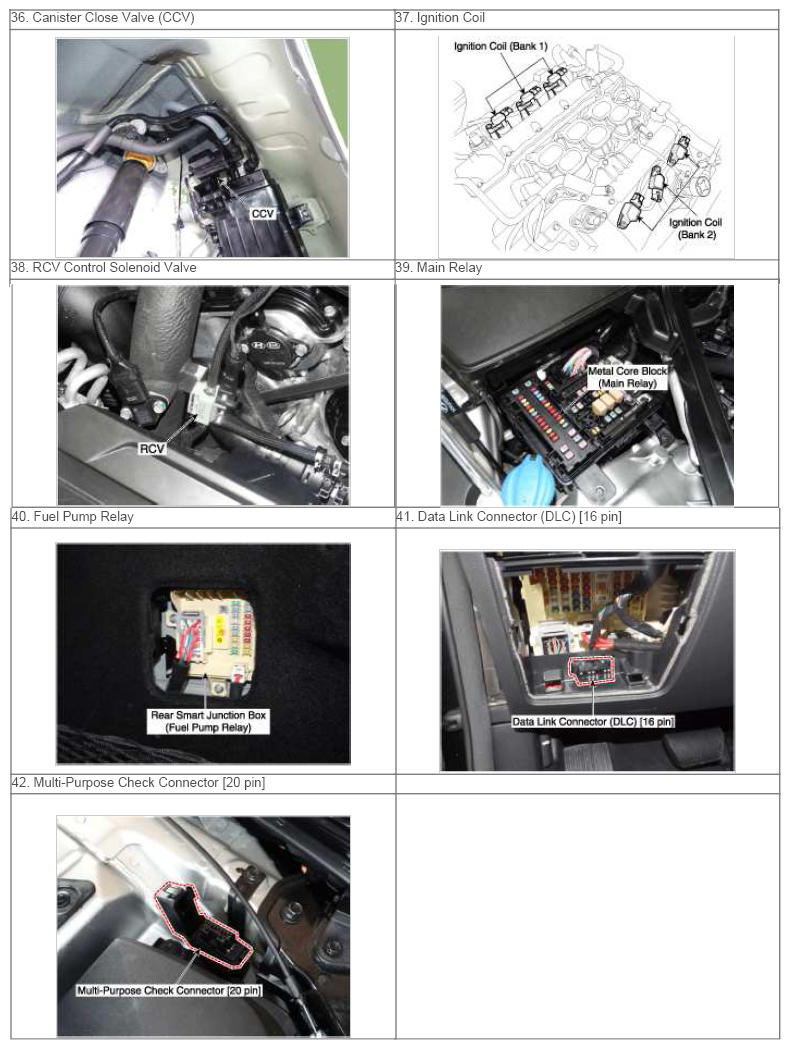

Fig 8: Engine Control System Related Components (8 Of 8)

Courtesy of HYUNDAI MOTOR AMERICA
