Repair Procedure: Inspection

Remove the ignition coil.
(Refer to "Removal ")
Measure the primary coil resistance between terminals.

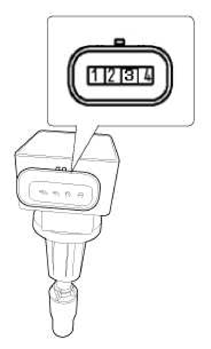

Fig 1: Primary Coil Terminals

G11411992

Courtesy of HYUNDAI MOTOR AMERICA

Terminal	Specification [20°C (68°F)]
1 - 2	2.8 - 3.8 kΩ
1 - 3	10MΩ Over
1 - 4	10MΩ Over
2 - 3	10MΩ Over
2 - 4	10MΩ Over
3 - 4	10MΩ Over
