Repair Procedures: Inspection

  1. Remove the crash pad lower panel.

    (Refer to Body - " CRASH PAD LOWER PANEL ")

  2. Check for continuity between terminals of the power trunk switch.
    Fig 1: Power Trunk Switch Connector Terminals
    G11419663Courtesy of HYUNDAI MOTOR AMERICA

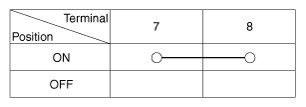

    Fig 2: Power Trunk Switch Terminal Continuity Chart
    G11419664Courtesy of HYUNDAI MOTOR AMERICA
