Home >> Genesis >> 2017 >> G90 5.0 Ultimate, AWD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Assembly >> Transfer Case Assembly >> Components and Components Location >> Components Location

Components Location

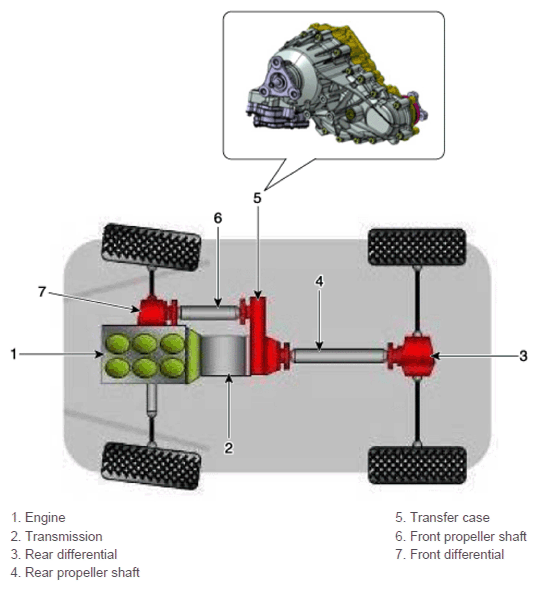

Fig 1: Locating Transfer Case Assembly Components
G11404907Courtesy of HYUNDAI MOTOR AMERICA
