Home >> Genesis >> 2017 >> G90 5.0 Ultimate, RWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Trunk Module >> Power Trunk Open/Close Switch >> Components and Components Location >> Components

Components and Components Location: Components

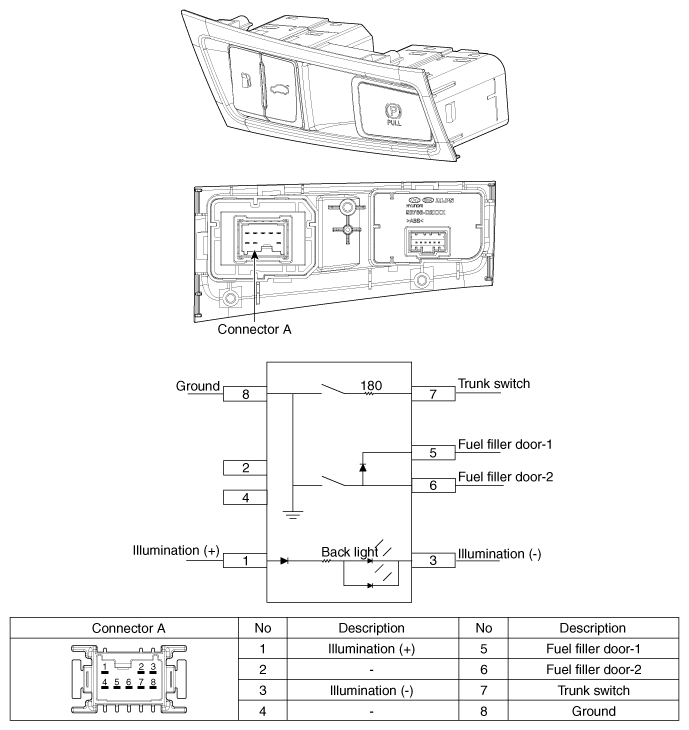

Fig 1: Locating Power Trunk Open/Close Switch Connector

G11419662

Courtesy of HYUNDAI MOTOR AMERICA
