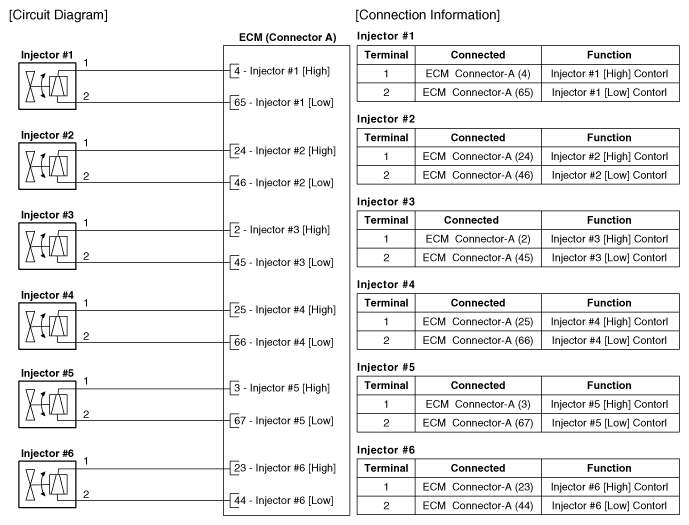

Home >> Genesis >> 2018 >> G80 3.3T Sport, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> Injector >> Schematic Diagrams >> Circuit Diagram >> Notes
