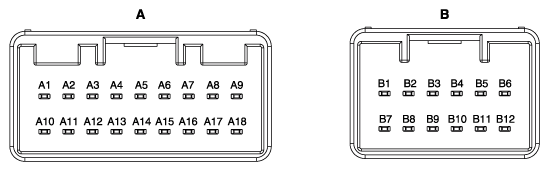

Terminal Function
| Pin No | Description |
|---|---|
| A1 | B-(ECU) |
| A2 | Sensor Power |
| A3 | Tilt sensor |
| A4 | Telescopic sensor IN |
| A5 | Till UP switch |
| A6 | Telescopic IN switch |
| A7 | B-CAN HIGH |
| A8 | B-CAN LO.V |
| A9 | ECU Ground |
| A10 | IGN |
| A11 | - |
| A12 | - |
| A13 | - |
| A14 | Till DOWN switch |
| A15 | Telescopic OUT switch |
| A16 | - |
| A17 | - |
| A18 | Sensor Ground |
| B1 | Telescopic motor IN switch |
| B2 | Tilt motor DOWN |
| B3 | - |
| B4 | Titt motor UP |
| B5 | Haptic motor OUT |
| B6 | Battery (Power) |
| B7 | Telescopic motor OUT |
| B8 | - |
| B9 | - |
| B10 | Ground (battery) |
| B11 | - |
| B12 | - |
