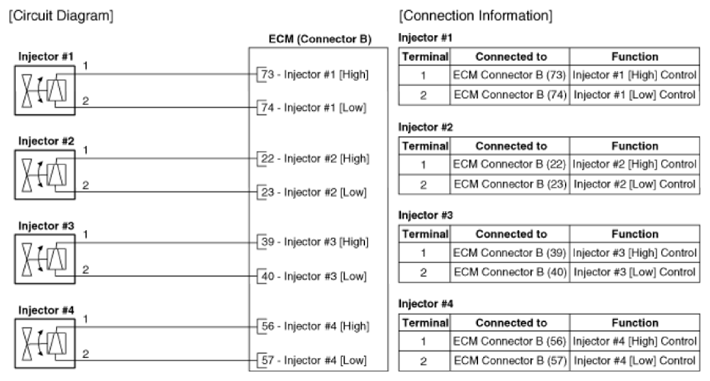

Home >> Genesis >> 2019 >> G70 2.0T Dynamic, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Injector >> Schematic Diagrams >> Circuit Diagram >> Notes
