Repair Procedures: Removal

  1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
  2. Turn the steering wheel so that the front wheels are facing straight ahead.
  3. Remove the driver airbag.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

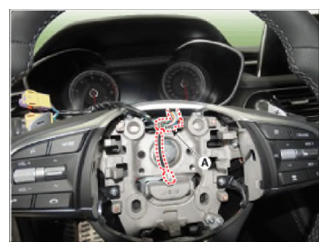

  4. Disconnect the steering wheel connector (A).
    G13540644Courtesy of HYUNDAI MOTOR AMERICA

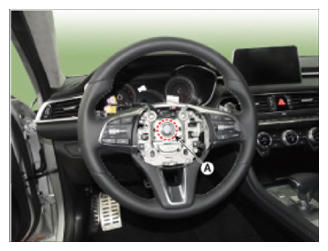

  5. Loosen the steering wheel bolt (A) and then remove the steering wheel.

    Tightening torque:

    44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)

    G13540645Courtesy of HYUNDAI MOTOR AMERICA
