Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

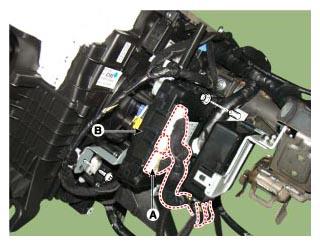

  3. Remove the smart key unit (B) after disconnecting the connectors (A) and loosening the bolt and nut.
    G12658559Courtesy of HYUNDAI MOTOR AMERICA
