Smart Key Code Saving
- Connect the DLC cable of KDS/GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS/GDS.

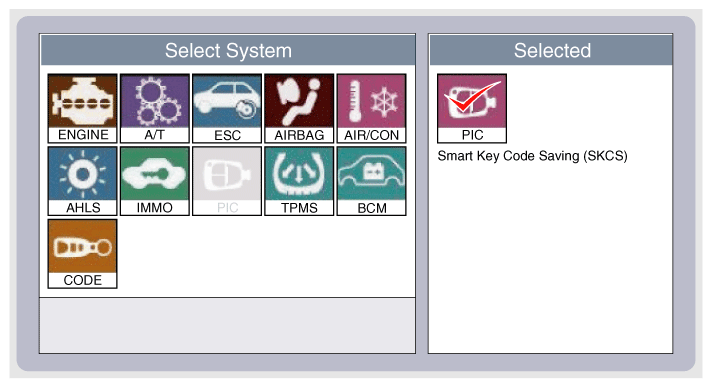

- Select the vehicle model and then do "Smart Key Code Saving".

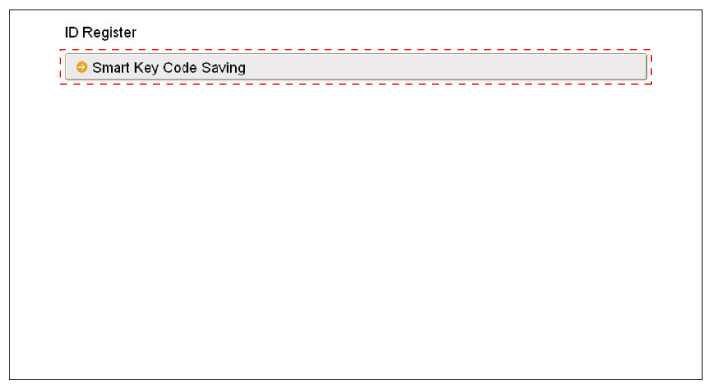

- After selecting "Smart Key Teaching" menu, push "Enter" key, then the screen will be displayed below.

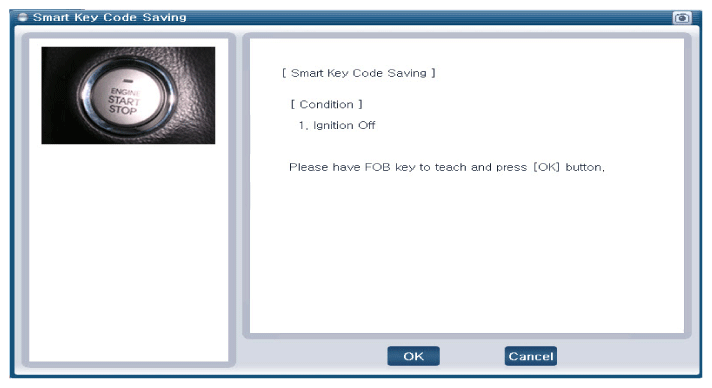

- After having the teaching smart key, push "ENTER" key.

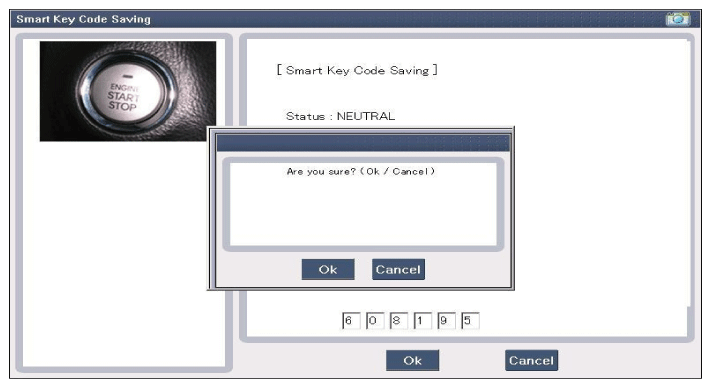

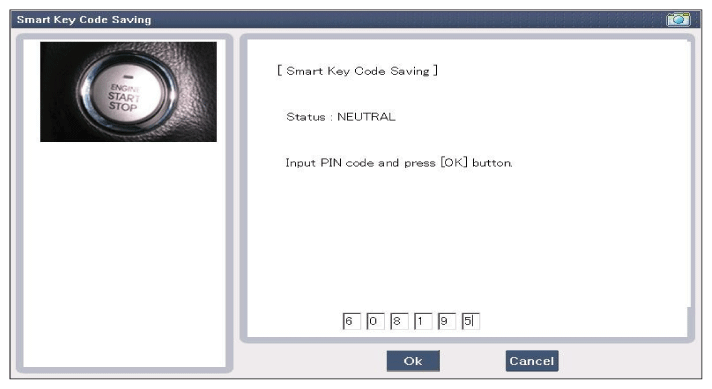

- Input the "Pin Code" for first key teaching.

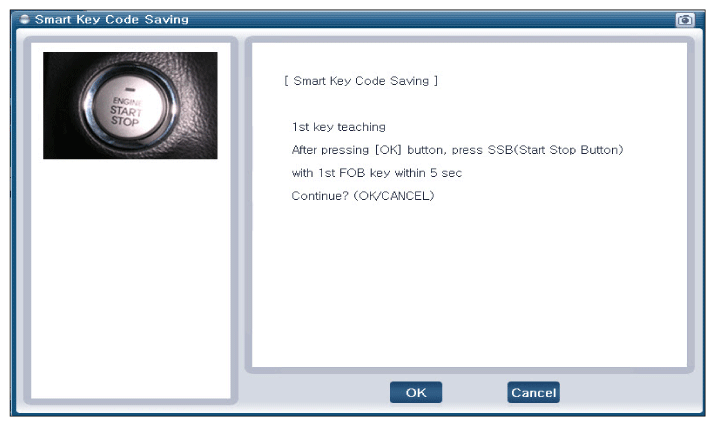

- Press the SSB with smart key within 5 sec after pressing "OK".
- Confirm the message "First Key Teaching Completed".
- Press the SSB with smart key within 5 sec after pressing "OK".

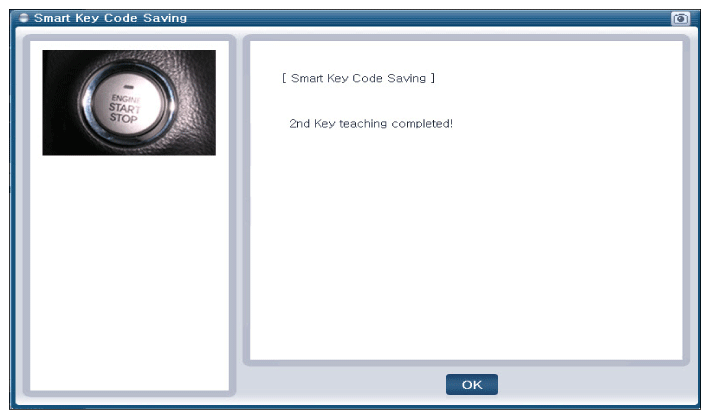

- Confirm the message "Second Key Teaching Completed".

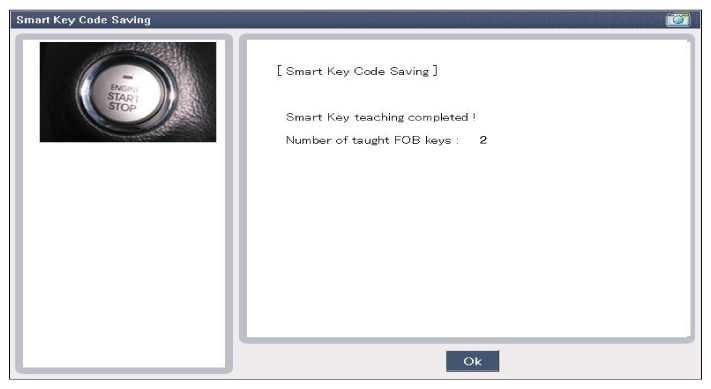

- Then the screen will be displayed below when key teaching process is completed.
