Home >> Genesis >> 2020 >> G90 3.3T Premium, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> Boost Pressure Sensor (BPS) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

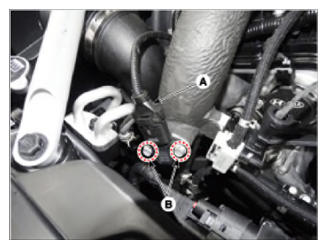

  2. Disconnect the boost pressure sensor connector (A).
  3. Remove the boost pressure sensor after removing the mounting bolts (B).
G13547525Courtesy of HYUNDAI MOTOR AMERICA
